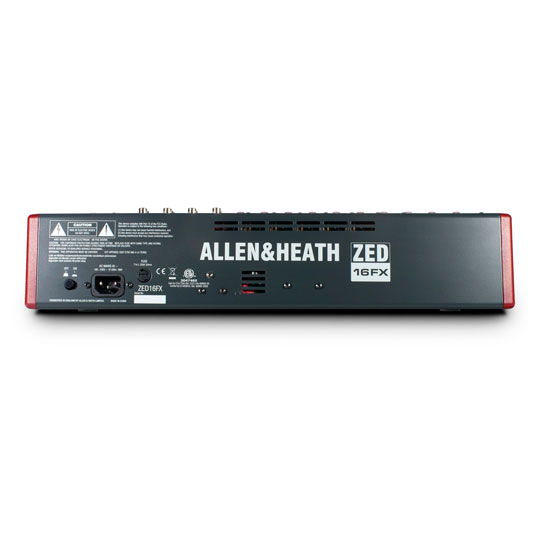

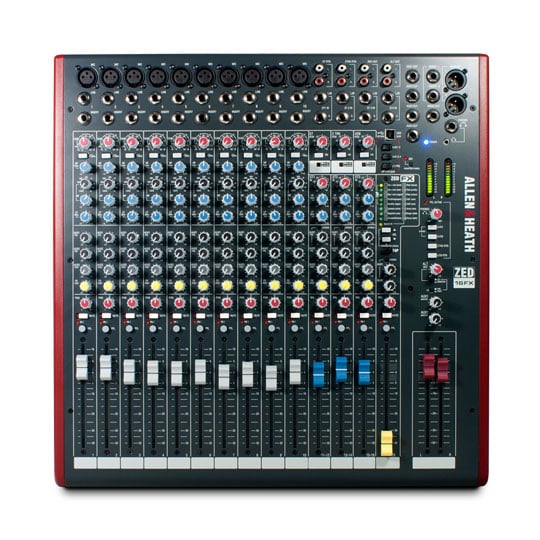

Allen & Heath ZED-16FX Mixing Desk
Allen & Heath ZED-16FX Multi-Purpose USB Mixer for Live Sound & Recording
Email me when the availability or price changes
Finance this product
- From £22.73 / month (APR 16.9%) or 0% for 4 months
- With a 10% deposit from just £17.25 / month (APR 19.9%)
- SCANPROTECT Protect against installation damage for 28 days.
Multipurpose Mixer For Live Sound Recording
Allen & Heath - ZED-16FX

16-Channel Mixing Desk with USB Audio Interface and EffectsThe Allen & Heath ZED-16FX features 16 channels plus FX options and integrated stereo recording, ZED Mid provides accessible analogue mixing for bands and venues. An essential selection of 16 reverbs, delays and modulation effects are all included, crafted by Allen & Heath's renowned in-house effects team. These can be dialled in quickly to bring a performance to life. All ZED Mid models feature a 2-channel interface with flexible send options including Main Mix L+R pre or post-fader, Auxes 1-2 or Auxes 3-4. The USB return comes back in on a stereo channel for playback and monitoring.
Allen & Heath's analogue engineers designed the MusiQ EQ especially for ZED mixers, carefully optimising the curves and target frequencies to deliver a simple to use, musical EQ that works equally well on stage or in the studio. Each ZED Mid mixer features a responsive 3-band, swept mid frequency EQ design with optimised slope (or Q factor) for equalising individual instruments. The preamps on ZED Mid mixers provide a huge 69dB of gain, enough for low output dynamic microphones and quiet acoustic sources, while keeping noise and distortion to a minimum. Gain is evenly distributed throughout the gain control ensuring precision control at all levels.
USB (2 x 2)Connectivity
10 XLRMic Preamps
16-bit/48kHzA/D Resolution
At A Glance
• 10 mic/line channels with inserts
• 2 in / 2 out USB audio interface
• 3 aux channels + internal FX bus
• XLR main outputs with insert points
• 3-band EQ with sweepable mid
• Durable 100mm faders
• Onboard digital FX
• 3 stereo channels
The Tech Spec
Features | Specification | Type | Analogue Mixer with USB |
---|---|
Channels | 16-channel (10 x mono, 3 x stereo) |
Computer Connectivity | USB (2 x 2) |
A/D Resolution | 16-bit/48kHz |
Faders | 16 x ALPS 100mm |
Inputs - Mic Preamps | 10 x XLR |
Phantom Power | Global |
Inputs - Line | 10 x 1/4" TRS, 8 x 1/4" (4 x stereo channels) |
Inputs - Other | 2 x Dual RCA Stereo (stereo, 2 track) |
Outputs - Main | 2 x XLR (main), 1 x 1/4" (mono) |
Outputs - Other | 2 x Dual RCA Stereo (rec out, alt out) |
Aux Sends | 2 x Pre, 1 x Post, 1 x FX Post |
Send/Return I/O | 3 x 1/4" (aux send) |
Channel Inserts | 10 x 1/4" |
Inserts | 2 x 1/4" (stereo main) |
Headphones | 1 x 1/4", 1 x 1/8" |
USB | 1 x Type B | Other I/O | 1 x 1/4" (footswitch) |
EQ Bands | 3-band EQ with MusiQ |
Effects | Delays, Reverbs, Chorus |
Software | Cakewalk Sonar X1 LE |
Power Source | Standard IEC AC cable |
Dimensions | Width: 18.3" Height: 3.9" Depth: 18.3" |
Weight | 18.7 lbs. |
