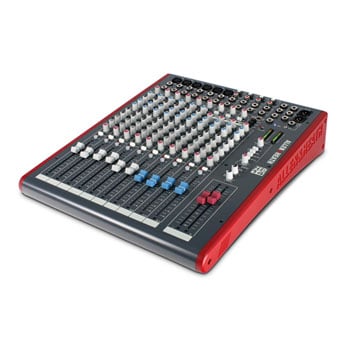

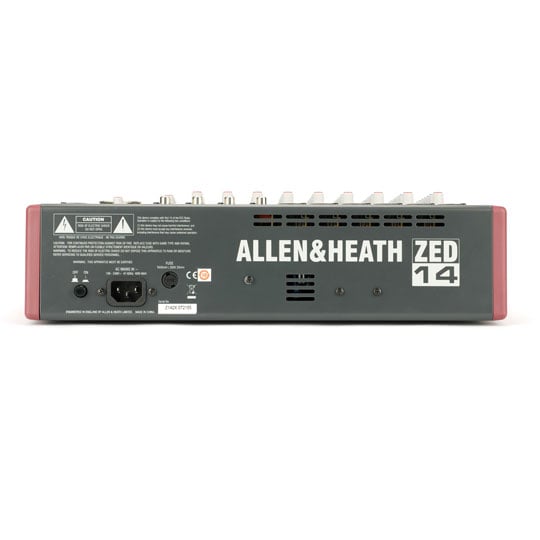

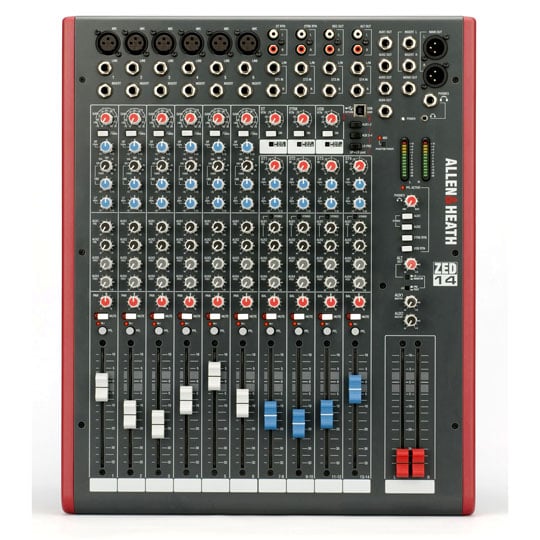

Allen & Heath - ZED-14
Multipurpose Mixing Desk

Allen & Heath ZED-14

Multipurpose Mixer For Live Sound RecordingThe Allen & Heath ZED-14 is a perfect mixer for small bands, solo performers or AV applications. It comes with a comprehensive feature set in a compact size and is one of the best small mixers around. Configurable USB audio in/out is included to make it easy to capture stereo recordings, 6 mic or line inputs, 4 stereo inputs with EQ, there are an incredible 157 controls on the front panel of the ZED-14.

This mixer works for anyone, from entry-level to professionals and anyone that appreciates fantastic sound, robust build quality and imaginative feature sets. The ZED-14 is just works perfectly when running your gig on stage, recording live or mixing down in your studio at home.

Amazing Features • 12-channels including six mono channels and four stereo channels
• MusEQ 3-band equalizer circuit on each mono channel
• A range of different input options
• USB connectivity

USB Audio Flexibility

Allen & Heath ZED-14

Simple TransferEasily transferring audio to and from a computer is now a common requirement for live sound and music production, so this has been implemented on the ZED-14 and is super-flexible and simple!

You no longer need to fiddle around the back of your PC to get to the soundcard inputs, only to find that the levels are all wrong and messy. Just plug in a USB lead to your ZED, select the USB routing on the mixer and the device on your computer and that’s it! CD quality audio to and from your PC or Mac.

World-Renowned Technology

Allen & Heath ZED-14

Improved ControlZED features a responsive 3-band, swept mid frequency EQ design which utilises MusiQ, with optimised slope (or Q factor) for equalising individual instruments.

Inspired by the renowned pre-amps from the largely successful PA series, ZED-14 has DuoPre pre-amps, which use a two stage design, with carefully controlled amounts of gain in each stage. When amplifying the signal from the XLR input, the gain is a huge range of 69dB, and is very evenly distributed around the gain control, improving control of the signal level.

Most of the gain comes from the first stage, reducing unwanted noise to a minimum. Line level signals are simply plugged into the second stage of the pre-amp by using the line input jack socket, which has the great advantage of less noise when using the line input and also matching to a higher input impedance.

The Tech Spec

Features Specification
Type Analogue
Channels 14
Computer Connectivity USB (2 x 2)
Faders 12 x 100mm
Inputs - Mic Preamps 6 x XLR (CH 1-6)
Phantom Power 6
Inputs - Line 6 x 1/4" (CH 1-6), 8 x 1/4" (CH 7-14 Stereo)
Outputs - Main 2 x XLR (Main), 1 x 1/4" (Mono Out)
Outputs - Other 2 x RCA (Alt), 2 x RCA (Rec)
Aux Sends 2 x Pre, 2 x Post
Send/Return I/O 4 x 1/4", 2 x RCA (ST RTN), 2 x RCA (2TRK RTN)
Busses/Groups Alt
Headphones 1 x 1/4", 1 x 1/8"
USB 1 x Type B
EQ Bands 3-band, Sweepable Mid (CH 1-6), 2-band (CH 7-14 Stereo)
Rackmountable Yes
Dimensions Width: 15.2"
Height: 3.86"
Depth: 18.3"
Weight 14.3 lbs.
Total Channels 14
Max Mic Inputs 6
Computer Interface USB 2
Mixer Type Analogue
Computer Interface Channels 1
Total Aux Sends 4
Subgroup / Bus Outputs 1
Max Line Inputs 6
Analogue Insert Points No
Flying Faders No
Internal FX Yes
Additional Information
Scan Code LN48036
Model Number ZED1402/240X
GTIN 6938122229044
