Allen & Heath ME-500 16 Channel Personal Mixer
Allen & Heath ME-500 16 Channel Personal Mixer, 16 Mono / 16 Stereo Inputs with Level and Pan Control
Email me when the availability or price changes
Finance this product
- With a 10% deposit from just £12.49 / month (APR 19.9%)
- SCANPROTECT Protect against installation damage for 28 days.

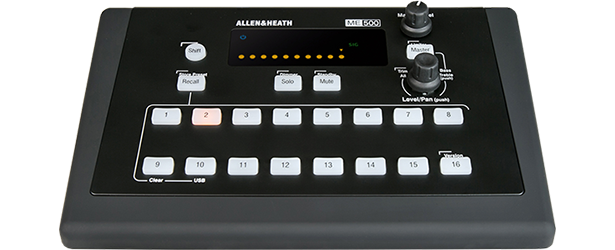

16 Channel Personal Mixer
Allen & Heath - ME-500
Ready to performThe Allen & Heath ME-500 is a powerful walk-up-and-mix solution that’s quick to set up and easy for just about anyone to learn in quick succession. The ME-500 personal mixer’s intuitive hands-on controls and clear visual display make it easy for musicians to quickly build and control their own monitor mixes. With plug ‘n’ play setup and self-sufficient musicians, ME-500 is also a huge time-saver for the audio engineers.
At A Glance
• 16 Mono / 16 stereo inputs with level and pan control
• Master 2 band EQ and Limiter
• Automatic key assignment
• 3.5mm and 1/4” headphone outputs
• Solo and Mute keys
• Mains or PoE powered
Fast & Easy Setup
8 User PresetsWith ME-500 there’s no time-consuming configuration of separate units. The first 16 mono / stereo channels and / or mixes assigned from the mixer will be automatically mapped to ME-500’s 16 select keys, so it’s quick and simple to deploy personal mixers in pressured situations such as festivals.
Levels, pan and mutes can all be saved and recalled at the touch of a button. Presets can be saved to USB and easily transferred to different ME-500s.
System Examples
ME-1 and ME-500 mixers can be directly connected to any available ME, SLink, dSnake or Monitor port in an Allen & Heath digital mixing system. Multiple ME-1 and ME-500 mixers can be daisy-chained with all mixers with external PSU power.
The ME-U hub can be connected to any available ME, SLink, dSnake or Monitor port in an Allen & Heath digital mixing system. ME-1 and ME-500 mixers connected straight into the ME-U are powered via PoE. Extra ME-1 and ME-500 mixers can be daisy-chained and powered via external PSU. Multiple ME-U hubs can be daisy-chained together if more than 10 ports are needed.

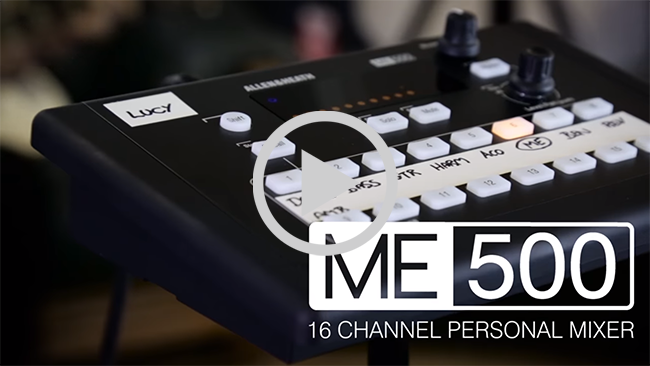

Introducing the ME-500 – 16 Channel Personal Mixer
The Tech Spec
| Features | Specifications | Type | Personal Mixer |
|---|---|
| Compatibility | Native dLive, GLD, Qu, Aviom A-Net 16 (DiGiCo, Yamaha, Avid and others via ME-U hub) |
| Number of Ports | 1 x Link In, 1 x Link Out |
| Connection Type | EtherCon |
| Input Channels | 16 |
| Output Channels | 16 |
| Analogue Outputs | 1 x 1/4" TRS (mono out) |
| Headphones | 1 x 1/4" TRS, 1 x 1/8" TRS |
| Data I/O | 1 x USB Type A |
| Power Source | 12V DC power supply / PoE support |
| Dimensions | Width: 9.0" Height: 2.2" Depth: 6.3" |
| Weight | 2.4 lbs. |
