Akasa AK-CCX-4002HP Venom CPU Cooler

Akasa Venom Ultra Performance CPU Cooler LGA1366/1155/1156/775 & AMD AM3/AM2/940/939 AK-CCX-4002HP

Akasa
Scan code: LN33739 Manufacturer code: AK-CCX-4002HP Request call
£32.38
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD On 13th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Frequently Bought Together

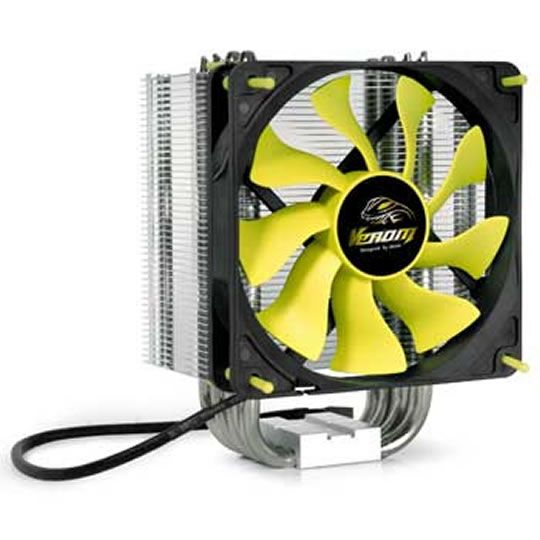

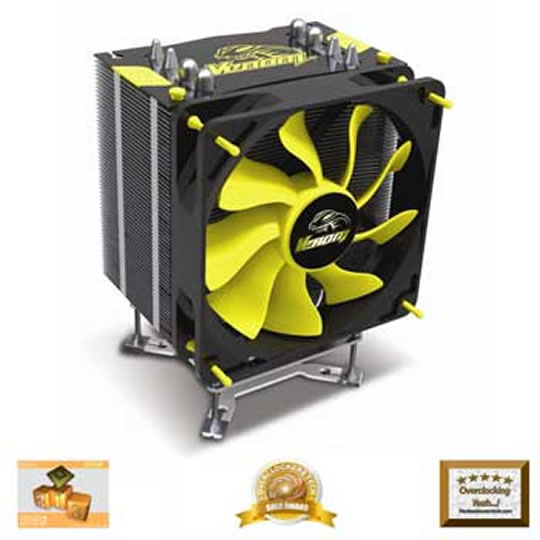

Product Overview Venom, this cooler is definitely rock and roll. Venom delivers ultra high performance enabling serious system overclocking. The 12cm killer Viper yellow fan uses S-Flow blades providing 30% more airflow than a standard fan at the same speed. PWM function ensures quiet operation during normal system use and performance cooling under load.

The Black cover and nickel plated heatpipes combined with the Viper yellow elements creates a striking combination which adds pazazz to any system. Four high capacity 8mm heatpipes with direct CPU contact provide rapid heat transfer from CPU to 45 aluminium fins. Anti-vibration rubber fan mounting pins provide easy installation and help to elimate a lot of fan noise. Adjustable mountings ensure full compatibility with all current AMD and Intel CPU’s.

The Smart cooler design allows for the installation of a second fan, giving extreme performance in a push-pull setup where the first fan “pushes” air through the heatsink’s cooling fins, at the same time the second one “pulls” air through from the other side. The combined airflow of two 12cm fans results in more efficient heat dissipation and consequently lower CPU temperatures.

• Performance 12cm PWM fan in killer Viper yellow
• 4 high capacity 8mm heatpipes with direct CPU contact
• Award winning S-FLOW fan blades provide 30% more airflow
• Smart design allows for a 2nd fan for extreme performance
• Rubber fan mounts for easy installation and quiet performance Features Socket type Intel LGA775, LGA1156 & LGA1366
AMD 939, AM2, AM2+ & AM3
Cooler dimensions 120 (W) x 96 (D) x 160 (H) mm
Heatsink material High grade aluminium fins, copper heatpipes
Weight 805g
Installation Screws and backplate (Intel)
Cam-lever clip (AMD)
Fan dimension 120 x 120 x 25mm
Fan speed 600-1900 RPM (PWM controlled)
Max airflow 83.63 CFM (141.75 m³/h)
Max air pressure 2.98 mm H2O
Noise level 6.9 - 28.9 dB(A)
Current rating 0.17A
Voltage rating 12V DC
Bearing type HDB (Hydro Dynamic)
Fan life expectancy 50,000 hours
Fan connector 4pin PWM
Product code AK-CCX-4002HP
Specifications
Cooler Specifications
Edition
Cooler Form Factor
Heatpipes
Cooler Features
Socket Compatibility
  • 1156
  • 1366
  • 775
  • AM2
  • AM3
Max. Cooling Capacity
Fan Specifications
Included Fan Configuaration
Fan Edition
PWM Fan No
Fan Bearing Type
Fan Colour
LED Lighting Colour
Fan Connectors
Approx Fan Speed 600 - 1200 rpm
Adjustable Fan Speed Controller No
Fan Airflow 83.63 CFM
Air Pressure
Sound Level (dB) 6.9 - 28.9 dB
Sound Level (Sone)
Materials
Fan Material
Heatsink Material Aluminium/ Copper
Dimensions & Weight
Fan Dimensions 120 x 120 x 25 mm
Heatsink Dimensions 120 x 160 x 96 mm (WxHxD)
Total Dimensions
Weight
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Akasa
Telephone:
+44 (0)20 8578 0055
