Soho H4 Plus ARGB 120mm Fan CPU Cooler from Akasa

Soho H4 Plus

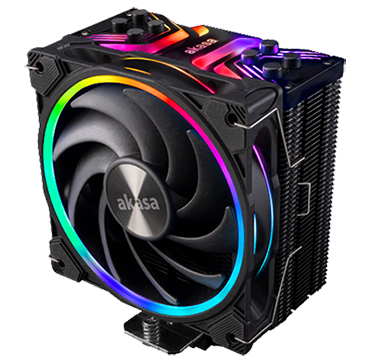

Cooling PerfectionWhen performance and style unite, the end result is a Soho H4 Plus CPU cooler. This high performance, premium CPU cooler with a 120mm PWM ARGB fan features copper pipes for optimum heat dissipation, and is designed for CPUs with a maximum TDP of 185W. Show off your cooler by using popular ARGB sync software and customise the lighting to suit your style.

Intel LGA1700/115X/1200/20XX

AMD SocketAM4


Give Your System Some Personality

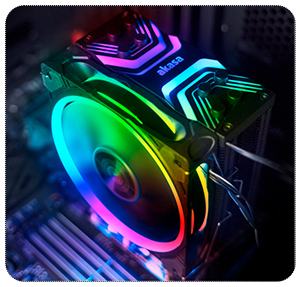

RGB Lighting

Customisable LightingEnjoy a variety of visual possibilities with over 16.8 million colour combinations for a totally personal experience.

Motherboard SyncMotherboard sync certified by popular RGB software including Asus®, Gigabyte™ RGB Fusion, MSI® and Razer Chroma™.

Unbeatable Cooling Technology

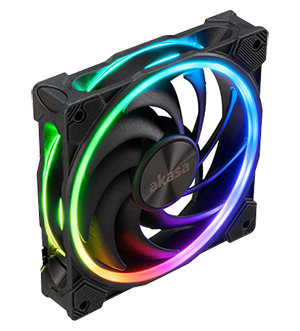

SOHO AR 120mm PWM FanA cooler that is able to support processors up to 185W TDP must be fitted with a strong, reliable fan. The SOHO H4 Plus has exactly that. Featuring a SOHO AR 120mm PWM fan with hydro dynamic bearings, it is capable of achieving speeds of up to 2000rpm - all whilst maintaining low noise.

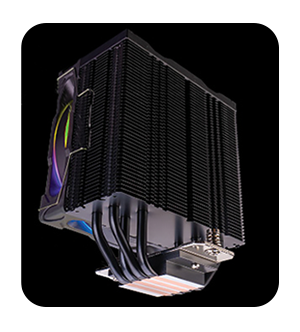

Sleek Black FinsHigh density design for maximum thermal distribution to ensure CPU has superb cooling. Electro-painted in black for corrosion resistance and sleek aesthetics.

Four HeatpipesHigh conductive with Direct Contact Technology that maximises efficient heat transfer from the CPU to the fins.


Ultra-Performance Thermal PasteT5 Pro-Grade Plus thermal paste is included with hybrid silicone and nano-diamond particles for ultra-performance. Outperforming other top selling ultra-performance competitor thermal pastes.

Easy Installation and Wide Compatibility

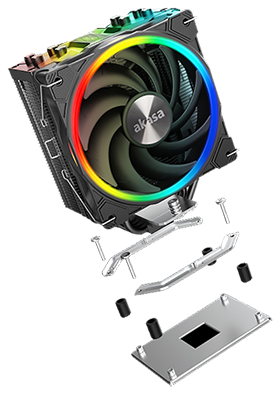

Suitable for a range of Intel and AMD SocketsMounting kit offers easy and secure installation for Intel LGA 1700/115X/1200/20XX and for the AMD AM4 sockets. The increased contact surface area allows more heat to be dissipated at a time, especially on an LGA 1700 socket. The new design of the SOLO H4 Plus is great for mini-ITX motherboards, allowing suitable space for RAM.

4K Recording
Cooler Specifications
Edition Soho H4 Plus
Cooler Form Factor Single Tower
Heatpipes 4
Cooler Features
  • Addressable RGB Lighting
  • Copper Heatpipes
Socket Compatibility
  • 1150
  • 1151
  • 1155
  • 1156
  • 1200
  • 1700
  • 2011
  • 2066
  • AM4
Max. TDP
Fan Specifications
Included Fan Configuration 1 x 120mm w/ Addressable RGB LEDs
Fan Edition
PWM Fan Yes
Fan Bearing Type Hydro-Dynamic Bearing
Fan Colour Black
LED Lighting Addressable RGB
Fan/Pump Connectors
  • 1 x 3-Pin ARGB
  • 1 x 4-pin
Max. Fan Speed 2000 rpm
Max. Fan Airflow 52.91 CFM
Max. Air Pressure 1.75 mm H²O
Max. Sound Level 31.8 dBA
Cooler Materials Aluminium / Copper
Included TIM (Thermal Interface Material)
Dimensions & Weight
Heatsink/Radiator Dimensions 157 x 120 x 96 mm (WxHxD)
Total Dimensions
Weight 730 g
Additional Information
Scan Code LN127684
Model Number AK-CC4022HP01
GTIN 4710679551838
