Akasa M.2 SSD to PCIe Adapter Card + Heatsink Cooler

Akasa AK-PCCM2P-0 M.2 SSD to PCIe Adapter Card + Heatsink Cooler, PCIe Gen3 x16 Slot, Low Profile, 1U Chassis Compatible

Thumbnail 1 : Akasa M.2 SSD to PCIe Adapter Card +  Heatsink Cooler Thumbnail 2 : Akasa M.2 SSD to PCIe Adapter Card +  Heatsink Cooler Thumbnail 3 : Akasa M.2 SSD to PCIe Adapter Card +  Heatsink Cooler Thumbnail 4 : Akasa M.2 SSD to PCIe Adapter Card +  Heatsink Cooler
Scan code: LN103469 Manufacturer code: AK-PCCM2P-05
£11.99
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 17th Dec To 19th Dec to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together
Product Overview

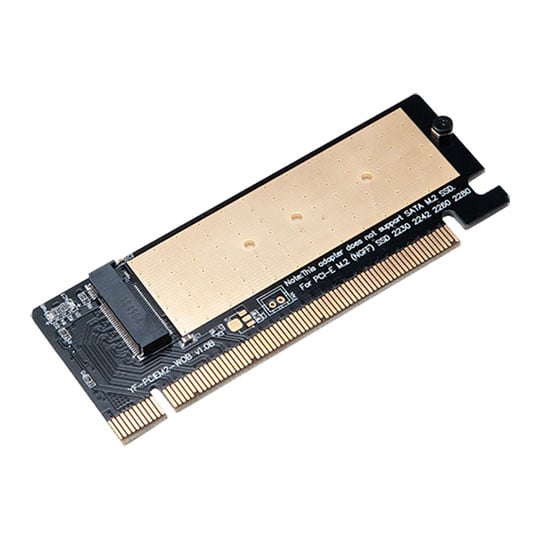

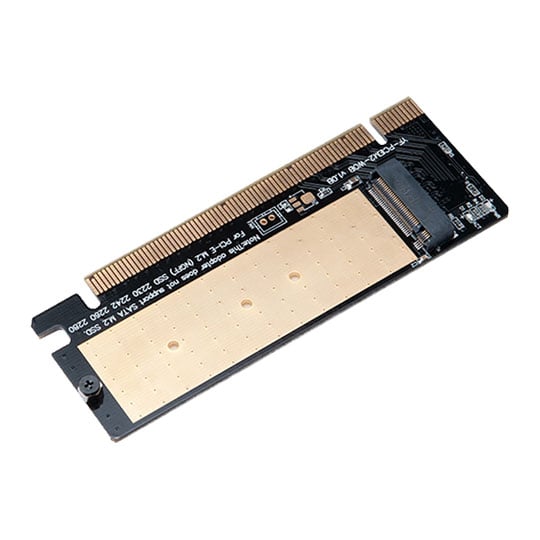

M.2 SSD to PCIe Adapter Card with Heatsink Cooler

Easily add and cool M.2 PCIe NVMe storage to an existing motherboard or PC. This adapter card with heatsink cooler is low profile with just 31mm height and fits in a 1U chassis. The PCB exposed copper coupled with an additional heatsink design reduces M.2 SSD heat and enhances performance. The speed of a PCIe Gen 3 x4 is up to 5.3X faster than SATA 3 and supports 2230, 2242, 2260 and 2280 size PCIe SSDs.

Features
Special Features
• Designed for M.2 PCIe SSD.
• M.2 PCIe NVMe Gen 3 x4 to x16 pinout host adapter.
• Low profile 31mm height, fits in a 1U chassis.
• Supports 2230, 2242, 2260 and 2280 size PCIe SSDs.
• Easily fits in a PCIe Gen 3 x16 PCIe slot.
• Backwards compatible with PCIe Gen 2.

Technical Specifications
Application: Converts M.2 SSD to work in a main board PCIe x16 slot.
Designed for: M.2 PCIe "M Key" and "M+B Key" SSD.
Supports: 2230, 2242, 2260 and 2280 size PCIe SSD.
Material: Metal bracket, printed circuit board, exposed copper, aluminium heatsink.
Operating system compatibility: OS independent; no additional drivers or software required.
Dimensions: 99.75 (L) x 38.23 (W) x 14 (H) mm (with heatsink and thermal pad).
Operating temperature: 0ºC - 55ºC.
Product code: AK-PCCM2P-05.
