Scan code: LN47347 Manufacturer code: AK-CC7122BP01

LP PWM Dual Bearing Cooler for mini-ITX and micro-ATX motherboards

Akasa AK-CC7122BP01 low profile cooler with PWM 2 ball bearing fan for Intel LGA1156/1155/1151/1150/775 - 26mm height

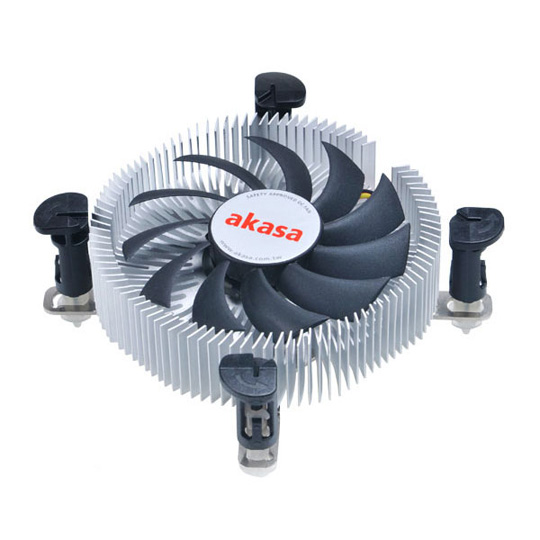

LP PWM Dual Bearing Cooler for mini-ITX and micro-ATX motherboards : image 1

zoom

Scan code: LN47347 Manufacturer code: AK-CC7122BP01

Share Facebook Twitter Google Reddit Pinterest LinkedIn

£9.49

Add To Basket

In stock

Delivery Options

By DPD On 29th May 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Collect instore Collect from our Bolton store, BL6 6PE | Free

Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store | £4.79

Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect

SCANPROTECT Protect against installation damage for 28 days. More info

ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Share Facebook Twitter Google Reddit Pinterest LinkedIn

Product Overview Ultra compact and low noise cooler for Intel Core 2 Duo and Core i3 CPU’s. The low profile design with embedded fan makes it a perfect solution for mini-ITX, HTPC and SFF systems.

Aluminium heatsink and twin ball bearing fan ensure high efficiency and long life. High engineered multi directional aluminium heatsink maximizes heat dissipation and PWM fan provides optimal CPU, motherboard and VRM cooling with minimal noise levels.

Intel approved pushpins ensure easy installation, reliable retention and maximum compatibility on both LGA775, LGA1150, LGA1151, LGA1155 and LGA1156 platforms without any mounting adjustment, pushpins will automatically slide into correct position. Pre-applied high performance thermal compound ensures clean and easy installation. Features • Hi-engineered aluminium heatsink with large full height copper core
• Multi-directional fins for maximum system cooling
• Embedded 8cm PWM fan with long life twin ball bearing
• Intel approved push pins provide maximum compatibility
• Dual mounting for Intel LGA775, LGA 1150/51/55/56 platforms
• High performance thermal interface is pre-applied
• Total height only 26mm

Specifications

Cooler Specifications
Edition
Cooler Form Factor
Heatpipes
Cooler Features
Socket Compatibility	1150 1151 1155 1156 775
Max. Recommended TDP
Max. Cooling Capacity
Fan Specifications
Included Fan Configuaration
Fan Edition
PWM Fan	No
Fan Bearing Type
Fan Colour
LED Lighting
Fan/Pump Connectors
Approx Fan Speed	600 - 3000 rpm
Manual Fan Speed Controller	Yes
Fan Airflow	23.45 CFM
Air Pressure
Sound Level (dB)	30.75 dB
Sound Level (Sone)
Materials
Fan Material
Cooler Material	Aluminium
Included TIM (Thermal Interface Material)
Dimensions & Weight
Fan Dimensions	75 x 75 x 10 mm
Heatsink/Radiator Dimensions	85.2 x 87.2 x 26 mm (WxHxD)
Total Dimensions
Weight
