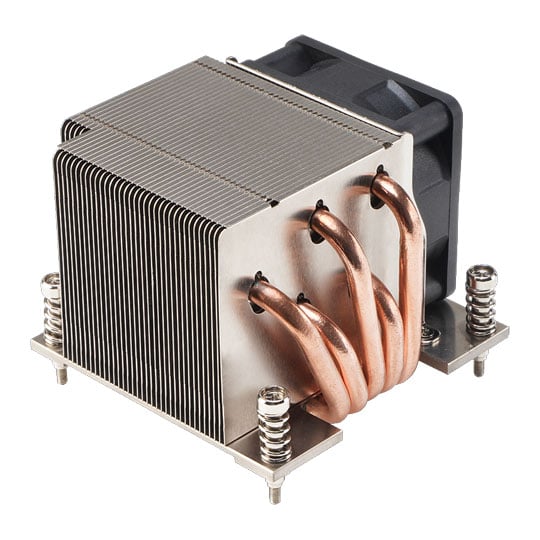

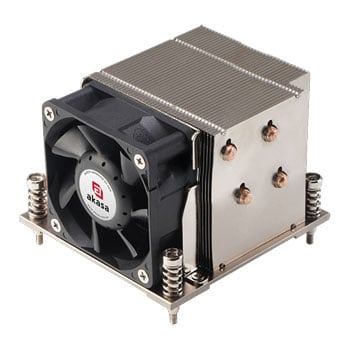

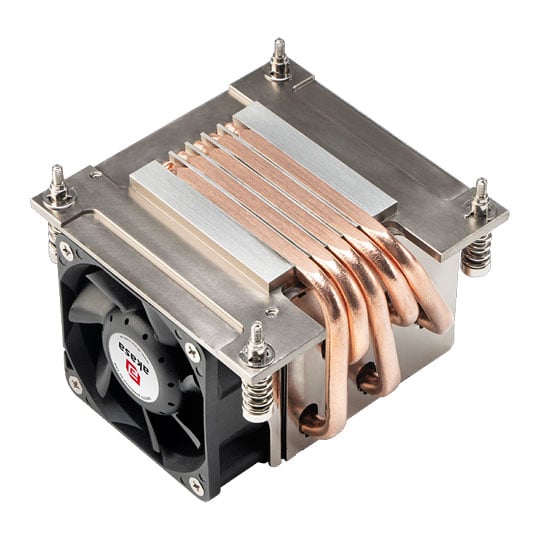

Akasa 2U Compact Active CPU Cooler for Intel 1700 / 1851 Sockets

Akasa 2U Cooler for Intel LGA 1851 / 1700, 60mm Fan, 5 Copper Heatpipes, 8000RPM, 4-Pin PWM, Low-Profile, Aluminium
MORE INFO
MORE INFO

Scan code: LN167063 Manufacturer code: AK-CC7502BP01
£49.99
£5.48 Next day delivery
Item overdue since 01 July 2026
Pre Order
Pre order
Pay in 3 interest-free payments of £16.67

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days.

Suggested Alternatives

Product Overview

Active 2U Cooler for Intel® Core™ and Core™ Ultra Processors (12-15th Generation)

Compact active cooler supports Intel® LGA1851 and LGA1700 sockets. With a PWM-controlled fan, it delivers quiet, efficient cooling for demanding 2U workstation, edge computing and server applications.


Advanced Heat Dissipation

Features aluminium fins and five embedded copper heatpipes to effectively draw heat away from the CPU for maximum cooling efficiency.


240W TDP Cooling Capacity

Supports 12-14th Gen Intel® Core™ desktop processors (Alder Lake, Raptor Lake, Raptor Lake Refresh) and Intel® Core™ Ultra processors (Series 2) up to 240W TDP, making it ideal for compute-intensive workloads, AI systems or office server builds.


High-Performance 60mm PWM Fan

The 60 x 60 x 25mm PWM fan provides quiet and smart cooling, operating between 2600–8000 RPM and delivering up to 47.2 CFM airflow. The two ball bearing extends durability to 80,000 hours for long-term reliability.


Secure Screw Mounting

Spring-loaded screw mounting enables quick and easy installation, while maintaining even pressure and strong vibration resistance for a secure, stable fit.


Pre-Applied Thermal Compound

Pre-applied high-performance thermal interface material (TIM) ensures optimal heat transfer right out of the box, eliminating the need for manual application and reducing installation time.


Features

• Active 2U CPU cooler measuring 88 × 90 × 67.3 mm and weighing 421 g, built for space-restricted workstation, edge, and server chassis.
• Aluminium fin stack with five embedded copper heatpipes pulls heat directly from the CPU for sustained thermal output control.
• Rated for up to 240 W TDP, supporting compute-intensive desktop and server processor configurations.
• 60mm PWM fan operates from 2600 to 8000 RPM and delivers up to 47.2 CFM airflow with 22.0 mm-H2O static pressure.
• 4-pin PWM fan connection runs on 12 V DC with a current rating of 0.82 A (0.85 A max).
• Two ball bearing fan design supports a life expectancy of 80,000 hours for continuous operation.
• Noise output is specified at 52.5 dB(A) at maximum fan speed.
• Spring-loaded screw mounting applies even contact pressure and resists vibration in rackmount systems.
• Pre-applied thermal interface material enables immediate installation and consistent heat transfer.
• Compatible with Intel® LGA1700 and LGA1851 sockets, covering 12th–15th Gen Intel® Core™ and Intel® Core™ Ultra Series 2 processors.

Specifications
Cooler Specifications
Edition AK-CC7502BP01
Cooler Form Factor Low-Profile Single Tower
Heatpipes 5
Cooler Features Copper Heatpipes
Socket Compatibility
  • 1700
  • 1851
Max. TDP 240W
Fan Specifications
Included Fan Configuration 1 x 60mm
Fan Edition
PWM Fan Yes
Fan Bearing Type Dual Ball Bearing
Fan Colour Black
LED Lighting N/A
Fan/Pump Connectors 1 x 4-pin PWM
Max. Fan Speed 2600 ~ 8000 rpm
Max. Fan Airflow 47.2 CFM
Max. Air Pressure 22 mm H²O
Max. Sound Level 52.5 dBA
Materials
Cooler Materials Aluminium
Included TIM (Thermal Interface Material) Included (Pre-Applied Thermal Paste)
Dimensions & Weight
Heatsink/Radiator Dimensions 88 x 90 x 67.3 mm (WxHxD)
Total Dimensions
Weight 421 g
Additional Information
Scan Code LN167063
Model Number AK-CC7502BP01
GTIN 4710679553139
