AJA KONA IP25 SDI to SMPTE ST 2110 IP Converter
AJA KONA IP25 SDI to SMPTE ST 2110 IP Converter, SDI to Uncompressed 2110 Video
Email me when the availability or price changes
Finance this product
- From £142.11 / month (APR 16.9%) for 48 months or 0% for 4 months
- With a 10% deposit from just £125.88 / month (APR 15.9%)
AJA KONA IP25
SDI to SMPTE ST 2110 IP Converter

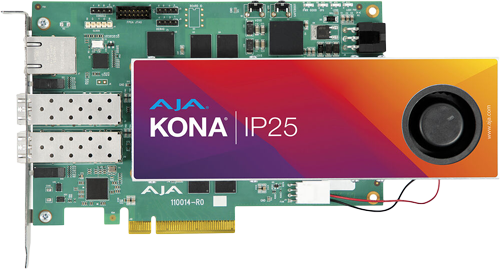

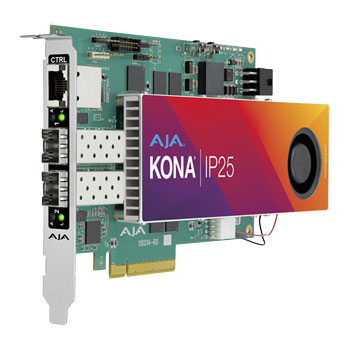

SMPTE ST 2110 Uncompressed IP I/OThe AJA KONA IP25 SDI to SMPTE ST 2110 IP Converter is a powerful PCIe Gen 4.0 IP I/O card built for professional broadcast and post-production workflows that need reliable, uncompressed video over IP. Designed for seamless SMPTE ST 2110 integration, it delivers bidirectional 4K and UltraHD support, PTP and NMOS control, and flexible 10/25 GigE connectivity for modern IP video environments.
Wide Software Compatibility
Support for a Wide Range of Creative ToolsAJA’s powerful drivers and application plug-ins ensure KONA IP25 supports the widest range of creative and workflow tools you use every day to get your work done. KONA IP 25 supports leading NLE, compositing, and streaming applications via our AJA Desktop Software, which includes AJA Control Room, a standalone application for capture and playout, and AJA Control Panel for I/O configuration and control.
Complete Control

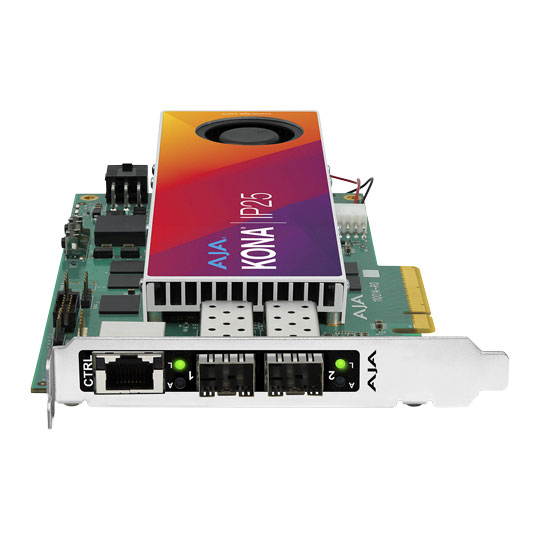

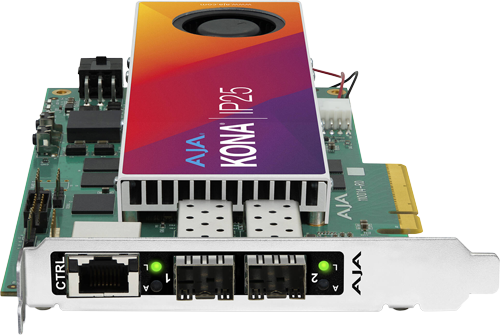

Support for a Wide Range of Creative ToolsKONA IP25 supports multiple ST 2110 uncompressed video streams, up to 4K and UltraHD 59.94/60 over IP via dual 25 GigE SFP cages. This is complemented by support for up to 16-channels of audio, and ancillary data.
All SMPTE ST 2110 configuration, control, and timing functions (NMOS and PTPv2) are handled on the KONA IP25, independent of the host computer with configuration and control options for either In-Band (media network via SFPs) or Out-of-Band (control network via RJ-45) capability.
NMOS enables discovery, registration, and control within software defined video networking environments via IS-04 and IS-05.
The New Standard For a Seamless SMPTE ST 2110 I/O
Designed to Fit Into Any ST 2110 InfrastructureKONA IP25 is designed to fit into any ST 2110 infrastructure, bridging the familiar KONA experience that professionals rely on for critical work into ST 2110 workflows. The KONA IP25 offers support for the SMPTE ST 2110 suite of standards:
• ST 2110-10 (System Timing)
• ST 2110-20 (Uncompressed video)
• ST 2110-21 (Traffic shaping for Uncompressed Video)
• ST 2110-30 (PCM Audio)
• ST 2110-40 (Ancillary Data)
Further, the KONA IP25 supports ST 2022-7 for both Rx and Tx via the dual 25G SFPs to provide hitless redundancy and ensure peace of mind for broadcast ingest and playout scenarios.
AJA Developer SDK
World Class SDKDevelopers who wish to use AJA’s world class SDK (Software Development Kit) can choose between two different methods to gain access and start putting their creativity to work with this rich, deep, and powerful set of video technologies. AJA’s SDK is available on Windows, Linux, and macOS, including support for the latest Apple silicon.
For the quickest and easiest way to get up and running with the core AJA SDK, we recommend the AJA Open Source Developer path, which is under the MIT license and hosted via GitLab.
For access to the AJA SDK, including AJA proprietary technologies and world class support, we recommend the AJA Developer Program path. This is accessed via the dedicated AJA SDK Developer page and requires a signed agreement.
It is entirely possible for a developer to begin on the AJA Open Source Developer path, and, if necessary, in the future, apply to enroll in the AJA Developer Program path.
HDR
HDR NLE / VFX Software SupportDesktop Software supports HDR across many third-party professional video software applications, including Adobe Premiere Pro, Apple Final Cut Pro, and Avid Media Composer.
Take advantage of SDR/HDR Transfer Characteristics, Colorimetry, and Luminance via the SDP file.
Apple Silicon Support
Optimised for The Latest Apple SiliconAJA Desktop Software is optimised for the latest Apple silicon with native support for AJA macOS drivers, application plug-ins, AJA Control Room, AJA Control Panel, and AJA System Test.
Apple Mac Pro Compatible
Apple Mac SupportAJA offers full compatibility for the latest Apple Mac computers, including support for AJA Control Room with Metal compatibility and extensive support for various applications.
For productions handling high resolution workflows all the way up to 4K, KONA IP25 is a perfect companion for high performance workflows.
