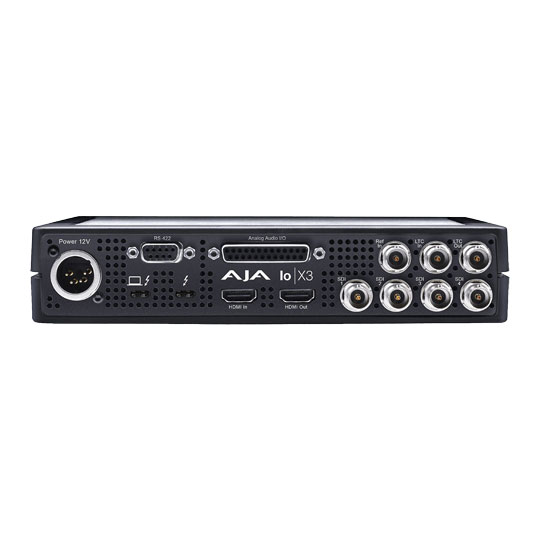

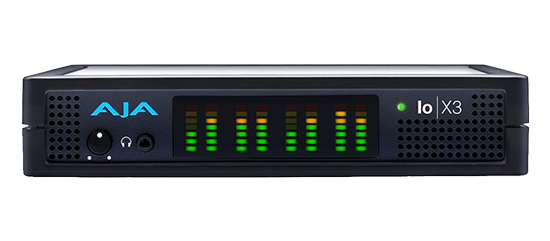

AJA Io X3

Multi-Channel Video I/O Over Thunderbolt 3The AJA Io X3 Professional Video I/O for Thunderbolt 3 is a versatile, compact solution for high-quality video and audio connectivity. Designed to seamlessly integrate with your laptop or desktop, the Io X3 offers robust support for DCI 2K and HD/SD workflows up to 60p through its 3G-SDI and HDMI interfaces. Featuring four bidirectional 3G-SDI ports, an HDMI 1.4b input and output, and support for HDR, this device ensures exceptional video clarity and audio fidelity. With dual Thunderbolt 3 connectors and a 4-pin XLR power input, the Io X3 provides unmatched flexibility and convenience for professional workflows.

Key Features• 2K/HD/SD I/O up to 50/60p
• 4x bidirectional 3G-SDI BNC with 16-channel embedded audio
• HDMI I/O with 8-channel embedded audio

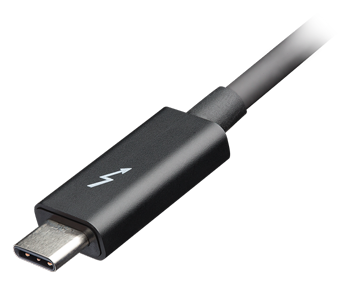

• Two Thunderbolt 3 (Thunderbolt 4 compatible) ports with loop through

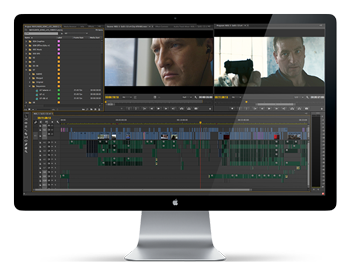

• Multi-channel workflow support for OBS, Wirecast, vMix, and other applications
• YCbCr 4:2:2 10-bit up to 60p
• RGB 4:4:4 12-bit up to 30p
• VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry, and Luminance via SDI
• PQ, HLG, HDR10 and Dolby Vision Support
• HDR Metadata Capture and Auto Playback Detection
• Multiview output over HDMI, to view up to 4-channels on one screen
• Analog audio flexibility with a choice of 8-channel In or 8-channel Out or 4-channel In and 4-channel Out via a standard Tascam connection
• Front panel audio display
• Includes support for Apple silicon
• XLR 12V power for battery or AC use (AC adapter included)
• Headphone jack and level control for mobile and live environments
• RS-422 VTR control, Reference, LTC Input and LTC Output

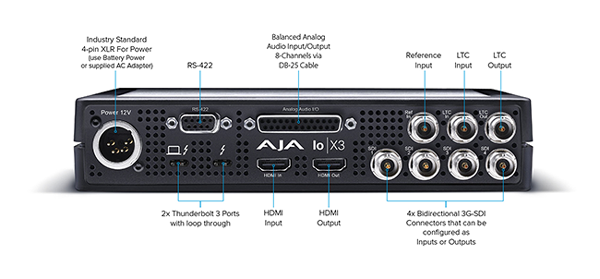

VersatileThe Io X3 rear panel offers a wealth of easy to access connectivity for almost any need in SD/HD/2K video pipelines. Power is supplied via industry standard 4-pin XLR with either the included AC adapter or battery power. Dual Thunderbolt 3 (Thunderbolt 4 compatible) ports provide host connectivity to a laptop or desktop computer running Windows, macOS, or Linux, with the second port for loop through to other Thunderbolt devices. RS-422 is included for machine control of external devices so they can be synchronized for editing. Analog audio is offered via a DB-25 port, with all 8-channels configurable to be in or out. HDMI in and out ports allow for easy monitoring or video input sources to be accessed, including HDR and SDR video. Reference input connects the Io X3 to any master clock source alongside LTC input and output for timecode. Finally, 4x bidirectional 3G-SDI ports can be configured as multi-channel inputs or outputs to suit the video application of choice, offering immense flexibility in the field, editing suite or on-set.

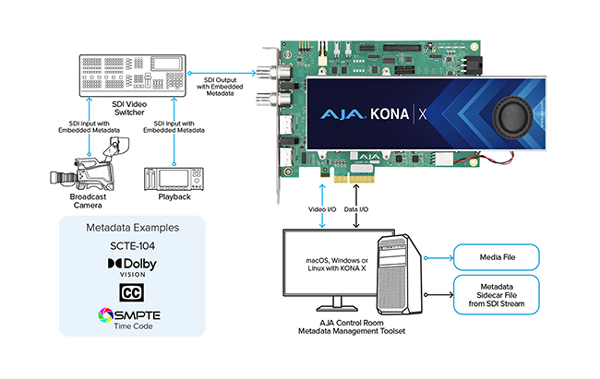

advanced workflowsMetadata is the key for managing advanced workflows. AJA is bringing to market an entirely new way to harvest metadata in the SDI signal stream and export the metadata to a sidecar file.

This new feature, called AJA Control Room Metadata Toolset, is being introduced in Desktop Software v17.1 and adds the following functionality:

• Supports capture of any metadata type, including SCTE-104 and Dolby Vision metadata, that is part of the SDI Ancillary metadata payload.
• Using an AJA KONA capture card that supports SDI input and the included AJA Control Room software (such as KONA 5 or KONA X), the card captures the metadata, which is then preserved in a metadata sidecar file.
• AJA Control Room can playback the metadata to provide quality monitoring.
• AJA Control Room can export the metadata synchronized with the media on a per-frame basis.

High Dynamic RangeHDR or High Dynamic Range, provides the ability to display a wider and richer range of colors, much brighter whites, and much deeper, darker blacks than standard signals allow. This gives your imagery a more ‘dynamic’ look and allows for natural, true to life colors to be communicated to your audience.

Io X3 provides this support for your 2K and HD HDR pipelines to HDMI and SDI compatible displays with HLG and HDR10 support with HDR Infoframe metadata, in accordance with HDMI 2.0a/CTA-861.3 and HD.

AJA Control Room software and Io X3 add support for HDR metadata capture from an incoming SDI or HDMI signal. The captured .mov video file will have embedded HDR metadata, allowing the file to be played back at its intended dynamic range.

AJA Control Room software and Io X3 Plus also provide HDR Auto Playback Detection. Embedded HDR metadata in a recorded .mov file is read and used to automatically set the HDR format on the monitor(s) connected to the HDMI and/or SDI outputs.

Support for file-based .mov HDR outputs with metadata from Adobe Premiere Pro / Adobe Media Encoder HDR files is also available. Screening those rendered outputs is a simple and high quality experience with AJA Control Room. Every frame is presented in its full quality, at the timing intended, and with the proper HDR format set correctly and automatically.
