AJA 12G-SDI to HDMI 2.0 Converter
AJA HI5-12G 12G-SDI to HDMI 2.0b Converter, up to 4K/UHD @ 60p, Audio Support, USB Configuration
Email me when the availability or price changes

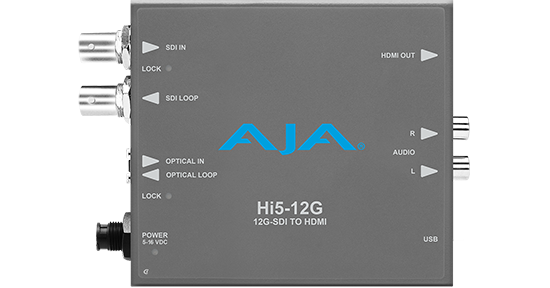

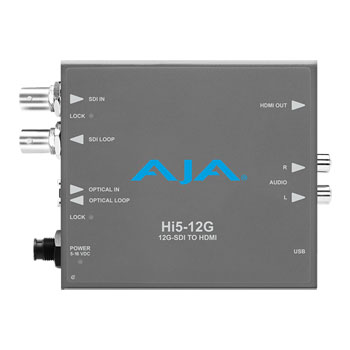

Hi5-12G-R Mini-Converter 12G-SDI from AJA
EXCELLENT WAYS TO BOOST YOUR WORKFLOWThe Hi5-12G converts 12G-SDI to HDMI 2.0, with pristine image fidelity and HFR support up to 60p for 4K/UltraHD, with single cable simplicity. Hi5-12G provides an easy to deploy monitoring connection from professional 4K 12G-SDI devices to new displays with HDMI 2.0 inputs, for cost-effective monitoring in professional workflows. The Hi5-12G can also generate HDR metadata in accordance with HDMI v2.0 and CTA-861-G. The Hi5-12G-R receiver can receive 4K signals over long distances from a Fiber connected source. It features a 12G-SDI single link input with a reclocked SDI loop out for simpler SDI confidence monitoring or pass on for SDI pipelines.
Hi5-12G Workflows

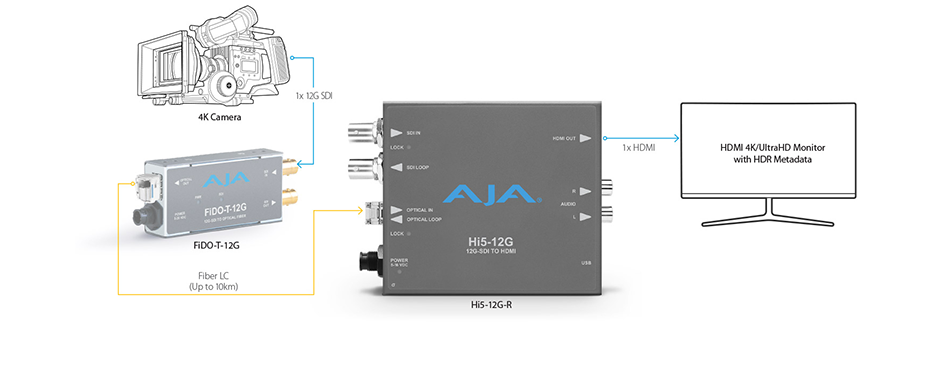

12G-SDI Source with Fiber Feed to Hi5-12G and UltraHD HDMI 2.0 Destination

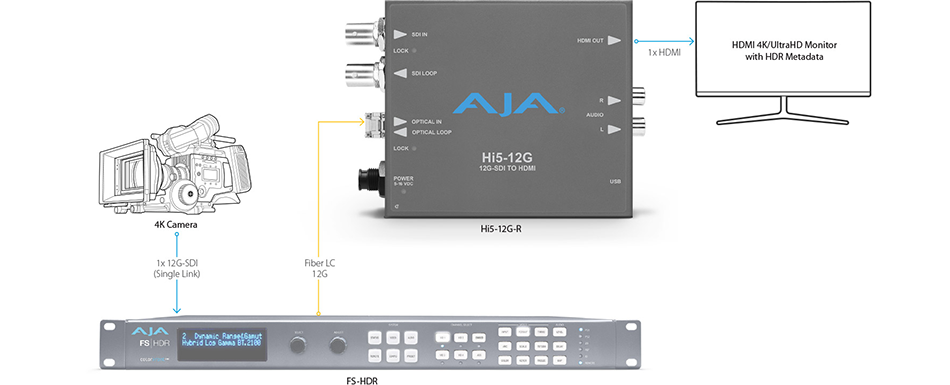

12G-SDI Camera Source for HDR Workflows and UltraHD HDMI 2.0 Destination
Experience True-to-Life Colour
HIGH DYNAMIC RANGE CAPABILITYHDR (High Dynamic Range) provides the ability to display a wider and richer range of colours, brighter whites, and deeper blacks than standard signals. This gives imagery a more dynamic look and allows for natural true to life colours to be displayed to your audience.
OG-Hi5-4K Plus provides this support for your 4K/UltraHD/HD HDR pipelines to
HDMI compatible displays by generating HDR metadata in accordance with HDMI v2.0a/CTA-861.3. OG-Hi5-4K-Plus also provides support for Hybrid Log-Gamma (HLG) HDR displays over HDMI.
Visuals in the Finest Quality
4K AND ULTRA HD4K signals use a 4096 x 2160 resolution, while Ultra HD use 3840 x 2160. This difference can prevent some monitors from being used either in full 4K workflows or in Ultra HD workflows. OG-Hi5-4K-Plus can compensate for these resolution differences, allowing UltraHD monitors to be used in 4K productions and vice versa.
OG-Hi5-4K-Plus also supports High Frame Rate (HFR) inputs. 4K/UltraHD signals at 50 or 60p can be fed into OG-Hi5-4K-Plus and output at up to 60p for viewing with appropriate HDMI 2.0 capable displays.
Get the Best Signal for your Workflow

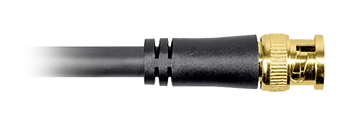

12G-SDI SupportThe 12G-SDI input on Hi5-12G allows extremely high quality signal representation through to the HDMI output for use with large raster and deep color workflows where image quality is critical.
Additional Features to Enhance your Experience
Audio IntegrationUp to 16-Channels of embedded SDI audio are supported on input and can be passed to 8-Channel of embedded HDMI audio on the output with the ability to delay the audio from 0 to 7 frames for proper synchronization with the output video. Two channels of analog audio output allow direct external monitoring without the need to disembed the audio separately.

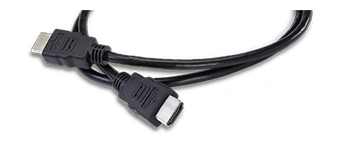

PsF to Progressive ConversionHDMI monitors do not natively support PsF signals. However, many professional productions still work with PsF formats. Hi5-12G converts incoming 1080PsF signals to 1080p. This progressive signal is compatible with HDMI monitors.
USB and Mini-Config Support
TAKE CONTROL OF YOUR HARDWAREAJA's completely free Mini-Config software can be used with any USB-enabled AJA Mini-Converter and provides an easy-to-use graphical interface with detailed information about the current input and output formats. Control all the parameters of any supported AJA Mini-Converter as well as loading firmware updates from AJA that add new features and functionality.
Download Mini-Config
Stay Powered Up for any Project
UNIVERSAL POWER SUPPLYAll AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.
Compact and Portable
TAKE YOUR GEAR ANYWHEREAJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.
Specialized Apps to Improve your Workflow
AJA Mini-MatrixInformation on the complete line of AJA Mini-Converters is now available as a mobile app on iOS. The Mini-Converter product line is extensive and this app helps you find the right converter for any situation, wherever you are.
Individual products have links back to the main AJA website for more details and you can email product information directly from the app. The free AJA Mini-Matrix app for iPad® and iPhone® is available now in the Apple iTunes® Store.
Superior Support for Years to Come
UNBEATABLE 5-YEAR WARRANTYAJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your Mini-Converter installation, configuration, operation or encounter any technical issue, AJA Support will work with you to get up and running. You can get in contact by sending an email to [email protected].
Mini-Converter products are covered by a generous five year international warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.
