AJA Corvid 88 8-Channel 3G-SDI I/O Card (Low Profile)
AJA Corvid 88 8-Channel 3G-SDI I/O Card, Low Profile, PCIe 2.0, 8-Lane
AJA - 'Corvid 88 8-Channel 3G-SDI I/O Card'
(Low Profile)
High Density I/O in Any FormatThe AJA Corvid 88 8-Channel 3G-SDI I/O Card is a powerful, low-profile PCIe 2.0 card designed for high-performance multi-channel video and audio input/output. Equipped with eight SD/HD/3G-SDI DIN 1.0/2.3 connections, each programmable as input or output, the Corvid 88 supports diverse video formats and configurations, including Dual Link HD-SDI and Quad Link 3G-SDI for high-resolution workflows like Ultra HD and DCI 4K. With support for 24-bit embedded SDI audio, four Mixer/Keyer widgets, and comprehensive control options, it integrates seamlessly with third-party solutions from industry leaders, making it ideal for advanced ingest and playout applications.
High Density Ingest And Output
input or outputEach BNC connection on Corvid 88 can be set programmatically as either an input or output and each can support a different video format, provided all format use the same clock timing. Connections can also be linked together to support dual link or 4K/UltraHD formats.
High Frame Rate Support
4K And UltraHDCorvid 88 supports 4K (4096 x 2160) and UltraHD (3840 x 2160) High Frame Rate (HFR) workflows. Working at frame rates of 48p, 50p and 60p ensure smooth motion for the most demanding 4K and UltraHD applications. High frame rates are not limited to 4K and UltraHD with Corvid 88, multiple 720p and 1080p HD inputs and outputs are also supported at frame rates up to 50p and 60p, making Corvid 88 extremely flexible for your current and future needs.

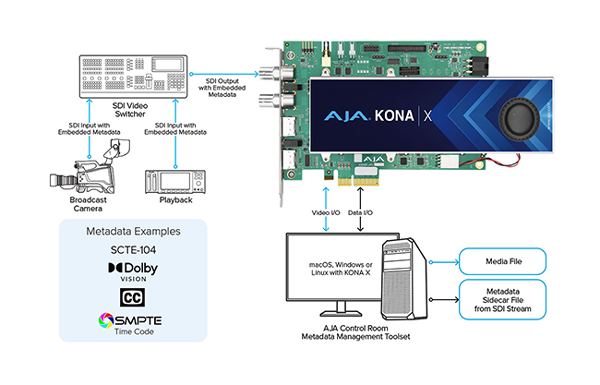

AJA Control Room Metadata Toolset
advanced workflowsMetadata is the key for managing advanced workflows. AJA is bringing to market an entirely new way to harvest metadata in the SDI signal stream and export the metadata to a sidecar file.
This new feature, called AJA Control Room Metadata Toolset, is being introduced in Desktop Software v17.1 and adds the following functionality:
• Supports capture of any metadata type, including SCTE-104 and Dolby Vision metadata, that is part of the SDI Ancillary metadata payload.
• Using an AJA KONA capture card that supports SDI input and the included AJA Control Room software (such as KONA 5 or KONA X), the card captures the metadata, which is then preserved in a metadata sidecar file.
• AJA Control Room can playback the metadata to provide quality monitoring.
• AJA Control Room can export the metadata synchronized with the media on a per-frame basis.
Section Heading
LTC and Reference InputCorvid 88 provides one external, switchable LTC/Reference Input connection on the back of the card. A second LTC input is available on an internal header for providing additional reference to Corvid 88.
RS-422A built-in RS-422 connection is available either as an external connection on the full-sized Corvid 88 or as an internal connection on the low profile Corvid 88. RS-422 allows control of external devices for frame accurate ingest and layoffs.
Powerful Platforms For Development Partners
Developer ProgramAJA's Developer Program allows partner companies to incorporate AJA products into their systems. By utilizing existing, proven video I/O devices, Developer Partners leverage AJA's expertise to develop and support these technologies, saving money and getting their integrated products to market more quickly.
Industry Leading Support
3 year warrantyAJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your Corvid installation, configuration, operation or encounter any technical issue, AJA Support will work with you to get up and running. Corvid products are covered by a generous three year warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.
