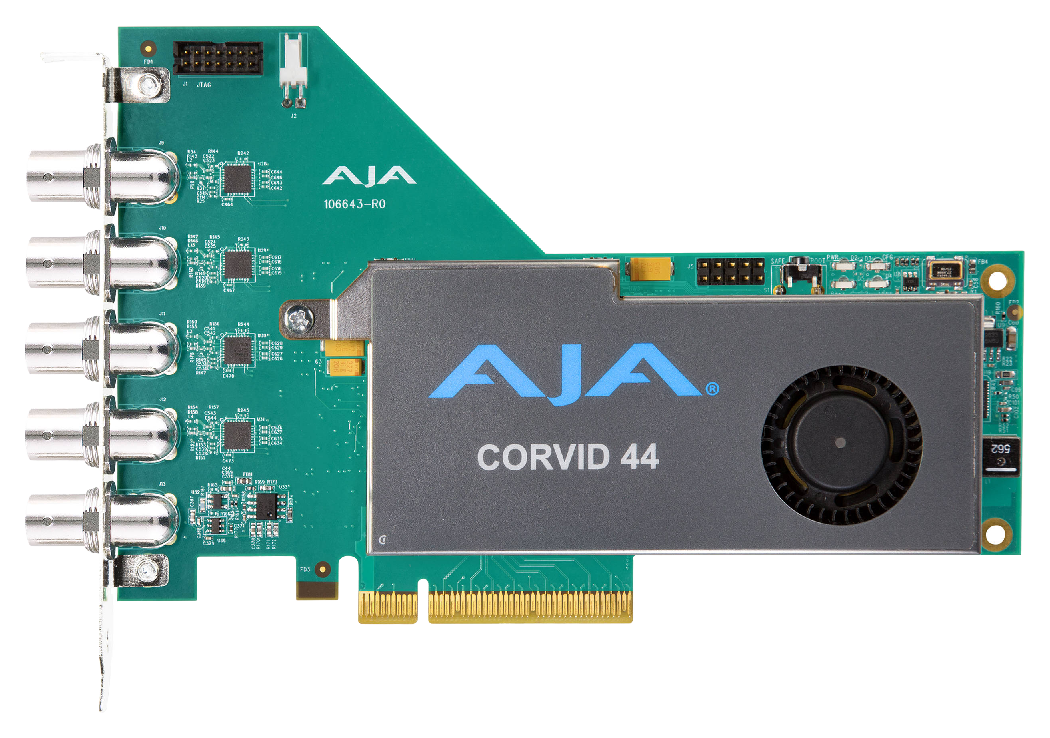

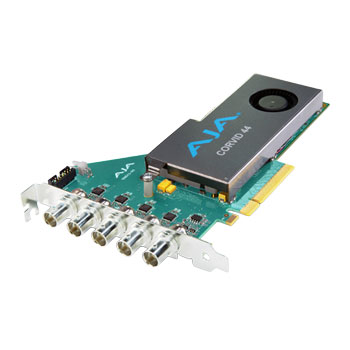

AJA Corvid 44 BNC
AJA Corvid 44 BNC, 4 x Full-Size 3G-SDI Connectors, DCI & UHD 4K/2K/HD/SD, 50/60p, 10/12-bit YCbCr And RGB Frame Buffer
Email me when the availability or price changes
Finance this product
- From £77.48 / month (APR 16.9%) or 0% for 4 months
- With a 10% deposit from just £73.02 / month (APR 19.9%)
AJA - 'Corvid 44 BNC'
Flexible Multi-Format I/O with Full-Size BNCIntroducing the AJA Corvid 44 BNC, designed to meet the demands of high-resolution TV productions and sports broadcasts. Whether you require inputs or outputs, each of the four 3G-SDI connections stands ready for your needs, accommodating various video formats and even supporting dual-link configurations or formats as impressive as UHD 4K. From dynamic DCI 4K to fluid UHD 4K, including 720p and 1080p resolutions, the Corvid 44 BNC excels, promising adaptability across your current and future setups. With features like BNC sync input, switchable between LTC and video reference, and an LTC input within the internal header, external signal synchronization becomes a breeze. The built-in RS-422 connection ensures precise control over external devices, guaranteeing frame-accurate ingesting and layoffs.
Key Features
• 4K/UltraHD/2K/HD/SD up to 50/60p
• 4x full-size bidirectional 3G-SDI spigots with 16-channel embedded audio per connection, up to a total of 64-channel/32-channel support
• RGB 4:4:4 12-bit and YCbCr 4:2:2 10-bit HFR workflows supported
• 2x independent Mixer/Keyer widgets.
• 4x independent 16-ch 48 kHz SDI embedded audio I/O engines
• 4K Closed Caption Support
• VPID signaling for SDR/HDR Transfer Characteristics, Colourimetry and Luminance via SDI
• PQ, HLG and Dolby Vision Support
• HDR Metadata Capture and Auto Playback Detection
• Ref/LTC input on internal header (Analog black burst or Tri-level)
• RS-422 on internal header
• Includes support for the Apple M1 chip
3G-SDI BNC Connections
Flexible Multi-Format I/OEach 3G-SDI BNC connection on Corvid 44 BNC can be set programmatically as either an input or output and each can support a different video format, provided all formats use the same clock timing. Connections can also be linked together to support dual link or 4K/UltraHD formats.
Supports 4K And UltraHD High Frame Rate Workflows
High Frame Rate supportCorvid 44 BNC supports 4K (4096 x 2160) and UltraHD (3840 x 2160) High Frame Rate (HFR) workflows. Working at frame rates of 48p, 50p and 60p ensure smooth motion for the most demanding 4K and UltraHD applications.
High frame rates are not limited to 4K and UltraHD with Corvid 44 BNC, multiple 720p and 1080p HD inputs and outputs are also supported at frame rates up to 50p and 60p, making Corvid 44 BNC extremely flexible for your current and future needs.
Multiple Connections
LTC and Reference InputCorvid 44 BNC provides one external, switchable LTC/Reference Input connection on the back of the card. A second LTC input is available on an internal header for providing additional reference to Corvid 44 BNC.
RS-422A built-in RS-422 connection is available as an external connection on Corvid 44 BNC. RS-422 allows control of external devices for frame accurate ingest and layoffs.
Industry Leading Support
3 Year WarrantyAJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your Corvid installation, configuration, operation or encounter any technical issue, AJA Support will work with you to get up and running.
Corvid products are covered by a generous three year warranty, including advance replacement as standard.
