ADAM Audio - 'Sub15' 15" Active Subwoofer
ADAM Audio - 'Sub15' 15" Active Subwoofer, 1000W, 20 Hz - 150 Hz Freq Response, 120 db Max. SPL
Adam Audio - 'Sub15'
15" Active Subwoofer
Powerful PerformanceThe Adam Audio Sub15 is an incredibly powerful subwoofer which can extend the frequency range of main and midfield monitors down to 20Hz. The 15″ woofer is made of a very durable aluminium membrane and is driven by a 100mm voice coil and two very powerful magnets. The Sub15 has 1000 Watts (RMS) of power capability, and the efficiency factor of the PWM amplifier is around 90%.
Thanks to all the features, the Sub15 is capable of taking on more intense musical frequencies with it can handle sudden peaks of bass without any sign of distortion or overheating. The downward firing bass port has been designed specifically with ample dimensions and rounded edges to reduce any chance of port noise.
1000 WPower RMS
20 Hz - 150 HzFrequency Response
≥120 dbMax. SPL
Amazing Features
• Allows optimal adaptation of the total system on the bass performance of the satellites
• Unrestricted bass reproduction for low-fatigue operation even at high volumes
• Powerful, compression-free sound reproduction even at very high sound levels
• Low-distortion amplification at both low and high volume levels
• Ideal addition to midfield and main monitors
Works For Every Situation
Easily AdjustableTo adjust the sound of the Sub15 to suit different room situations or for separate preferences, Adam Audio have integrated several controls including one for volume (-60dB to +6dB) and one for the crossover frequency (50Hz – 150Hz).
The satellite speakers can be driven at full range or high pass filtered at 85Hz. This lets the Sub15 be easily worked into a Dolby surround setup.
Unfavourable phase relationships between the satellites and the subwoofer, particularly in the crossover frequency range, can be controlled easily with the built in phase reverse switch.
A Perfect Addition

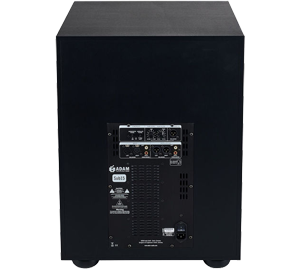

Versatile ConnectivityWhen it comes to connectivity, the Sub15 is also very versatile, there are balanced (XLR) and unbalanced (RCA) input/output connectors which you can find on the back of the subwoofer.
The Sub15 combines fantastic transient response capability with an impressive low frequency performance to allow for a genuine, musical reproduction experience.
With a high and undistorted sound pressure output of 120dB maximum SPL at one meter, the Sub15 works as the perfect subwoofer for mid-sized and larger control rooms.

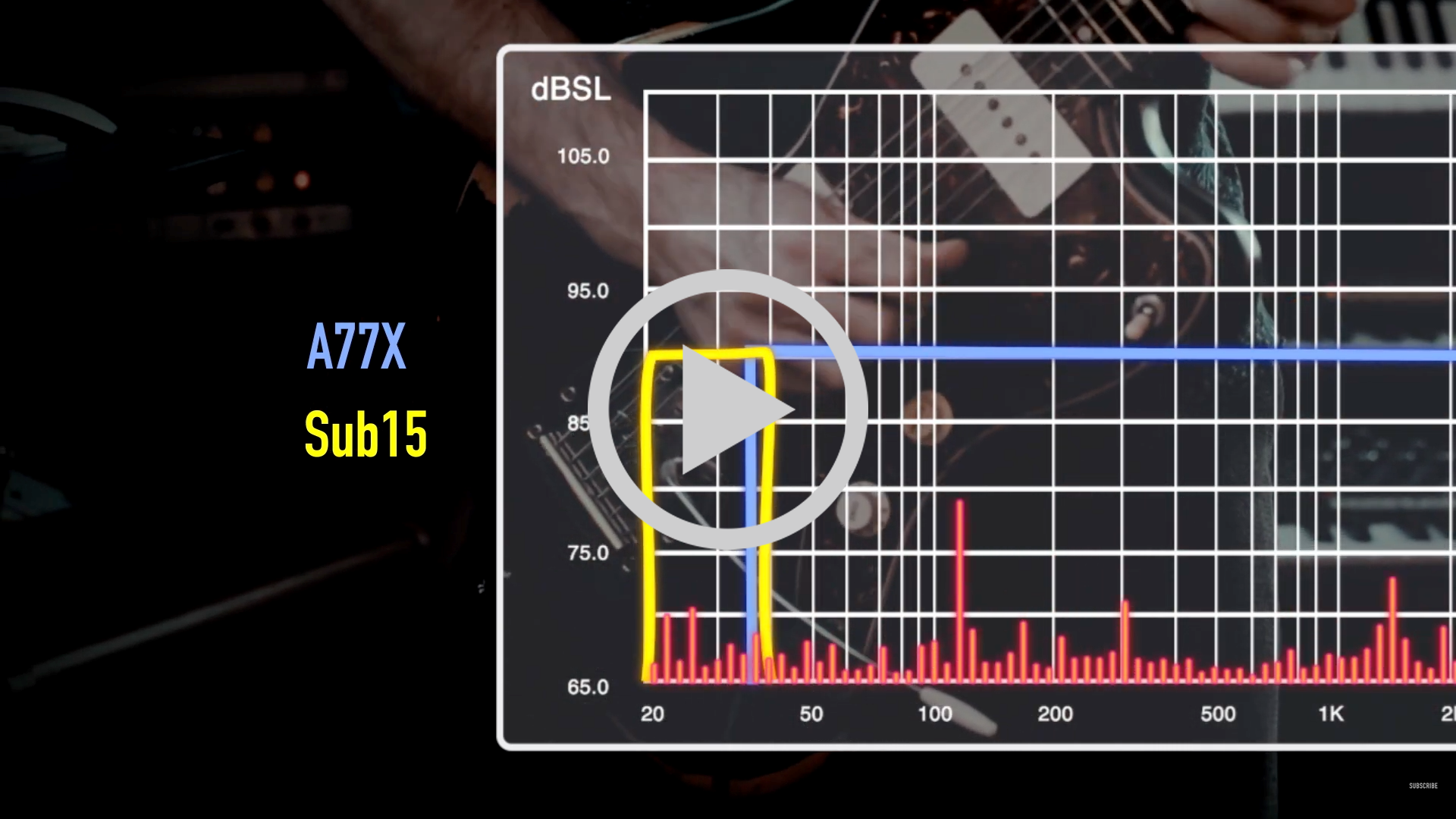

The Benefits of Using a Subwoofer | ADAM Audio
The Tech Spec
| Features | Specification |
|---|---|
| Warranty | 5 years (2 years warranty plus 3 years optional with product registration) | Powered | Yes |
| Speaker Size | 15" |
| Driver Type | Aluminum Cone |
| Total Power | 1000W RMS, 1200W Music |
| Frequency Range | 20Hz-150Hz |
| Crossover Frequency | 50-150Hz |
| Maximum Peak SPL | ≥120dB SPL @ 1m |
| Inputs | 2 x XLR, 1 x Dual RCA Stereo |
| Outputs | 2 x XLR (balanaced), 1 x XLR (sub out), 1 x Dual RCA Stereo |
| Dimensions | 25"(H) 18.5"(W) 20.5"(D) |
| Weight | 114.6 lbs. |
