ADAM Audio - A4V Pair, Stands, Leads & Sonarworks Measurement Mic

SCAN PRO AUDIO PRESENTS...Scan Pro Audio is proud to present this limited time offer professional monitoring package. Comprised of components to deliver the ultimate studio monitoring experience, with this bundle you can elevate your monitoring to the next level. Included is a pair of ADAM Audio’s newly released A4V studio monitors, Sonarworks - SoundID Measurement Microphone, a pair of Adam Hall's SKDB 039 Speaker Stands and a pair of Stagg's 3m XLR (m) Cable - Stereo Jack (m) to ensure you can get connected and hit the ground running right away!

what's included? • ADAM Audio - A4V (Pair)
• Adam Hall - SKDB 039 Speaker Stand - (Pair)
• Stagg - 3m XLR (m) cable - Stereo Jack (m) (Pair)
• Sonarworks - SoundID Measurement Microphone

Quality CompactedDesigned for small studio spaces, short listening distances and immersive multi-speaker configurations, the A4V delivers accurate, full-bodied sound in a compact form factor. This two-way speaker incorporates a 4-inch long-throw woofer made from the same Multi-Layer Mineral (MLM) fibres as other A Series speakers plus the classic X-ART tweeter.

Onboard DSP-based tuning capabilities let you easily dial in the perfect sound for your space. With a frequency range of 53 Hz to 42 kHz, the A4V can accommodate a broad spectrum of audio applications—from producing podcasts to mixing string quartets—and will fit well within immersive and 3D setups.

Wha't in the box? • 1 x Loudspeaker
• 1 x Power cable
• 1 x Quick start guide

Rotatable HPS Waveguide & X-ART TweeterADAM Audio HPS (high-frequency propagation system) waveguide technology enables tweeters to disperse sound with controlled consistency, broad in the horizontal axis but tightly focused in the vertical plane. The A Series introduces a rotatable HPS waveguide design. You can shift A Series tweeters in 90-degree steps to continue to benefit from HPS waveguide technology whether you position the speakers horizontally or vertically.

  The A Series HPS Waveguide is made from a new glass fibre polymer compound that helps create a clear sound, free of unwanted resonance. The ADAM Audio X-ART tweeter is at the heart of the rotatable HPS waveguide. Handmade in Germany, the X-ART tweeter provides a precise transient response and reproduces the finest sonic details. This X-ART tweeter is used in every A Series speaker, providing a detailed, consistent sound across the product line.

Multi-Layer Mineral WooferA Series woofers are constructed with a unique blend of mineral stone fibres that have been baked together to create a lightweight but highly stable material. The mineral composition, layering and geometry of each cone is specific to the driver used in each model. By combining this material with a new magnet system, A Series woofers produce high output with low distortion, delivering a clean low-end.

Hybrid AmplificationThe A Series combines the best of both digital and analogue worlds. The woofers are driven by Class D amplifiers that help produce linear performance while reducing distortion. These amplifiers were chosen specifically for their power and efficiency, in terms of both energy consumption and sound reproduction. Low thermal dissipation allows for a smaller heat sink, which facilitated additional investment in the exceptional power and performance of the A Series.

Tweeters and midrange drivers are powered by Class AB amplifiers which offer a smooth, natural reproduction of high frequencies. Each amplifier is optimized for its working range, resulting in a fine-tuned, properly aligned speaker. To reach this point, ADAM Audio carried out extensive measurements and listening sessions, trialling countless amplifiers and amplifier components.

DSP-Based ElectronicsThe A Series capitalizes on the transformative power of DSP-based electronics to provide greater tuning precision and better predictability than analogue-only speakers. With firmware that can be updated through an Ethernet connection, over time you can expect to integrate the latest DSP-based capabilities from ADAM Audio—including new filter types and features, plus alternative voicings. 

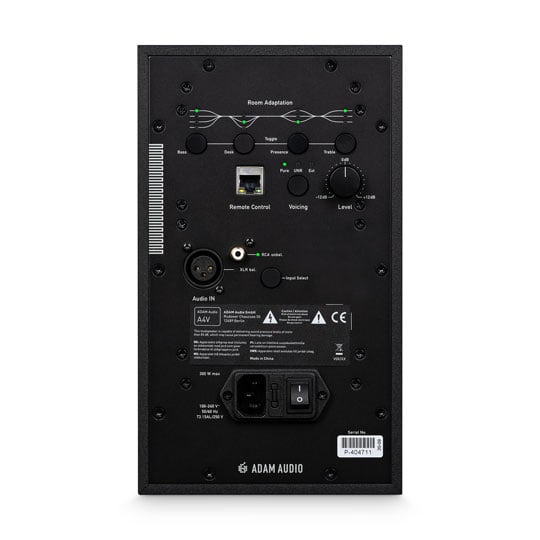

Room AdaptationOn the back panel of A Series speakers, you will find four bands of room adaptation equalization: Bass, Desk, Presence and Treble. Each band is adjustable in predefined steps, offering more than 100 tuning options to help compensate for the typical acoustic problems that arise from speaker placement.  

“UNR” or “Uniform Natural Response”A “Voicing” is a pre-defined sound profile of the A Series monitors. On the back panel, you will find two different selections, “UNR” and “Pure”. Here you will also find the “Ext” option which is dedicated to the extended functionality that comes with A Control via the Ethernet connection.

“UNR” or “Uniform Natural Response™” is a dynamic, natural-sounding response curve of ADAM Audio’s own design, which stems from a variety of iconic ADAM Audio legacy products, including the preceding AX Series. It lends itself to production, composition and song writing as its engaging and present sound can give you more room for creativity and flow. It is also a great option whenever you want to use your speakers simply to enjoy some good music.

“Pure” is a highly accurate and neutral sounding option. This is the “flat” setting, ideal for mixing and mastering, where you really must be aware of all the details and rely on an honest representation from your speakers.

The “Ext” option is dedicated to the extended functionality that comes with A Control via the Ethernet connection. Using A Control’s six-band EQ, a custom voicing and be created and pushed to the monitor.

A Control (Real-Time Remote Control) The DSP-based functionality of all A Series monitors can be controlled remotely and in real time over Ethernet using the free to download A Control software. A Control is available to download for Windows and MacOS in the MyADAM area of www.adam-audio.com for customers who have registered their A Series monitors. 

Once downloaded and installed, you can control multiple speakers at once, precisely adjusting equalisation and delay settings from various listening positions in your studio space. While you work, you can remotely control monitor levels if you’re far from a fader or physical interface. Remote-control capabilities are particularly useful in multi-purpose rooms allowing you to make sure that voicing, EQ, and other settings are all exactly how you want them.

Room Correction & Sonarworks IntegrationA Series speakers are designed to be adaptable to changing requirements, preferences, and environments. Using the A Control software, you can push advanced filters directly to an embedded platform onboard the monitors to help compensate for imperfect room acoustics. This embedded platform supports filters from industry leading third-party Sonarworks. Using Sonarworks software and a measurement mic, you can calibrate your speakers for a new room or shifting taste.

Bass Reflex System, Cabinets and Mounting The new A Series cabinets build on the heritage of ADAM Audio and the AX Series in particular. In an evolutionary design, A Series cabinets have deeper bevelling to further reduce diffraction. In addition, thicker baffle walls strengthen the cabinets and reduce internal vibrations, while a flared-port design optimizes airflow and reduces port noise. All A Series speakers include an underside mounting interface, giving you the flexibility to mount them wherever you need them. 

Sound-ID Reference Measurement Microphone
with individual calibration profileDesigned for seamless integrated use with Sonarworks SoundID software, the SoundID Reference measurement microphone is a pre-polarised electret-condenser armed with an omnidirectional polar pattern and 106 dB of dynamic range.

Sonarworks SoundID Reference Microphone is tailor made for use in the speaker calibration setup process of Sonarworks' SoundID Reference Studio software package and ensures that any speakers can be fully calibrated in 20 minutes flat.

Once complete, the calibration process imposes a flat frequency response target across all audible bands making any user's mix fully translatable between different studio monitors and even different listening devices.

at a glance • Omnidirectional polar pattern
• Pre-polarised electret-condenser capsule
• Speaker calibration requires SoundID Reference software

what's included? • 1x SoundID Reference Measurement Microphone with XLR connection
• Microphone calibration file for 30° off-axis measurements in .swmic format (Sonarworks software native format) to be used with SoundID Reference
• Microphone calibration file for 0° on-axis measurements in .txt format for third-party use
• 21-day trial of SoundID Reference available online

universal studio monitor standThis universal studio monitor stand consists of 35/40 mm black powder-coated tubes and holds speakers weighing up to 35 kg. The height is adjustable in 12 cm increments, while a T-screw and a locking pin ensure increased safety.

The standing space required measures 230 x 230 mm and also provides space for your monitor speakers. The stand’s upper tube is fitted with a plastic clip for discreet cable guidance. The triangular foot can be fitted with three adjustable plastic feet or with steel spikes. Removing the stand’s shelf allows the stand to be used with any speaker in combination with a 36 mm standard flange.
