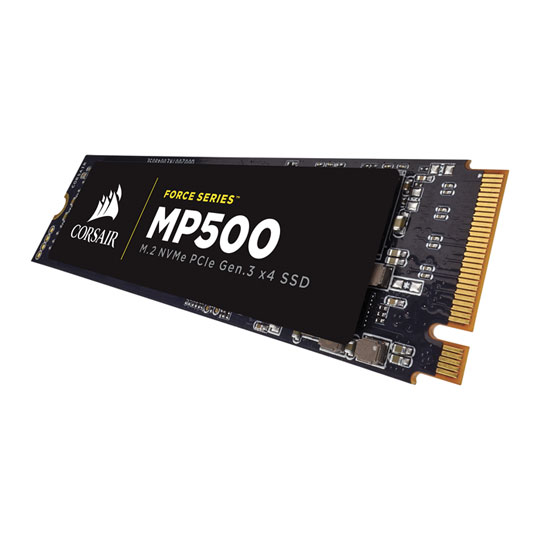

Corsair Force MP500 960GB M.2 NVMe PCIe SSD/Solid State Drive

960GB Corsair Force MP500, M.2 (22x80) PCIe 3.0 (x4) NVMe SSD, MLC NAND, Read 3000MB/s, Write 2300MB/s, 260k/230k IOPS

Scan code: LN84472 Manufacturer code: CSSD-F960GBMP500 Request call
Pay on Scan Finance with a 10% deposit from just £11.69 / month (APR 15.9%)
High End
Delivery options £5.48 By DPD On 22nd Jan 2018 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More

M.2 960GB Corsair MP500 SDD

MP500 960GB M.2 SSD

Incredible Speed at your Fingertips

The 960GB MP500 is a high-quality SDD that delivers incredible performance thanks to its easy to install M.2 form factor that is just 3mm in height, the Corsair MP500 SDD’s technical highlight is PCI-Express 3.0 x4 interface, which is the latest NVMe standard. This drive in particular has a storage capacity of 960GB, a with read speed of up to 3000MB/s and write speeds of up to 2300MB/s which delivers ultra-fast system boot times and less load times.



PCIe 3.0

Sequential Read

Sequential Write

Random Read

Random Write

Build Smaller, Perform Faster

The Corsair Force MP500 series M.2 SSDs deliver high performance, quick system boot ups, blazing fast transfer speeds and ultimate reliability in a compact form factor.

Other Solid State Drives in the M.2 Corsair MP500 range:

120GB 240GB 480GB

Compact Size Without Compromise

M.2 Size

Superior Performance

CORSAIR NVMe M.2 SSDs enable a new level of performance in a compact form-factor. The CORSAIR NVMe PCIE boosts bandwidth, allowing you to access all of your data, load files and launch games with speeds up to 4x faster than SATA 3.0.

Corsair MP500 Features

NVMe PCI-E SSD 3.0 x4 Interface

The CORSAIR NVMe PCIe boosts blazing fast bandwidth, allowing you to access your data, load files and launch games with speeds up to 4x faster than SATA 3.0.

Static and Dynamic Wear-Leveling

Additional protection to enhance reliability and extend life of the drive.

Corsair SSD Toolbox Application

Monitor S.M.A.R.T attributes and SSD health status with support for over-provisioning, secure wipe, disk cloning, FW update and more.

Toughened Contact Surface

30um gold finger thickness improves contact to the motherboard and provides vibration resistance to ensure reliability in vigorous conditions.

Compact M.2 2280 Form Factor

CORSAIR NVMe M.2 SSD enables a new level of performance in a compact form factor.

Enhanced Error Correction

Additional error bit correction and improved data retention while supporting the latest generation NAND.

Capacity 960GB
Edition Force MP500
Form Factor M.2 (2280)
Height 3mm
Interface PCIe 3.0 (x4)
Host Controller Interface NVMe
Controller Phison PS5007-E7
Flash Memory Type MLC NAND
Max. Read 3000 MB/s
Max. Write 2300 MB/s
DRAM Cache Memory 1024MB
DRAM Cache Memory Type DDR3
Max. Random Read 4K 260,000 IOPS
Max. Random Write 4K 230,000 IOPS
Latency N/A
Special Features
  • 30um Gold Finger Thickness
  • Advanced Garbage Collection
  • Corsair SSD Toolbox Software Support
  • DEVSLP Support
  • Dynamic Wear-Leveling
  • Enhanced Error Correction
  • Smart ECC
  • Smart Refresh
  • SmartFlush
  • Static Wear-Leveling
Power Consumption (active) 6.92W
Max. Endurance Rating 1396 TBW
Max. Operating Vibration 20Hz~80Hz/1.52mm, 80Hz~2000Hz/20G
Max. Non-operating Vibration 20Hz~80Hz/1.52mm, 80Hz~2000Hz/20G
Max. Operating Shock 1,500G
Max. Non-operating Shock 1,500G
Connectivity 1 x M.2 (PCIe)
OS Support
  • Linux
  • Mac OS X
  • Windows 10
Bracket N/A
Dimensions 80 x 22 x 3 mm (WxHxD)
Weight 82 g
Package Type Retail

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

36 months
Return to base
DOA Period:
28 days
RTB Period:
60 months
Manufacturer Contact Details
0871 472 47 47
