Scan code: LN77245 Manufacturer code: CSSD-F120GBMP500

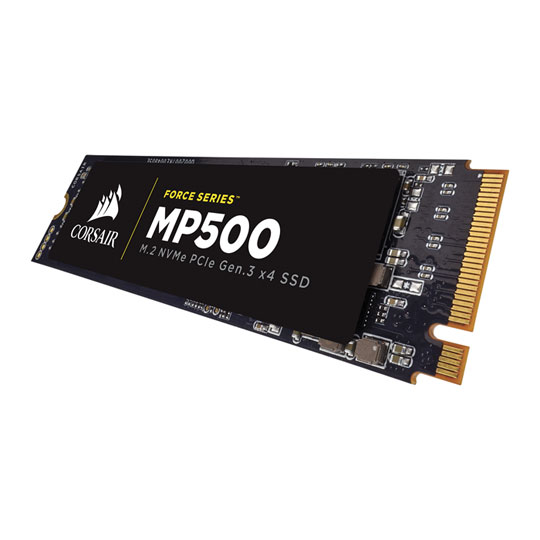

Corsair Force MP500 120GB M.2 NVMe PCIe SSD/Solid State Drive

120GB Corsair Force MP500, M.2 (22x80) PCIe 3.0 (x4) NVMe SSD, MLC NAND, Read 3000MB/s, Write 2400MB/s, 150k/90k IOPS

Thumbnail 1 : Corsair Force MP500 120GB M.2 NVMe PCIe SSD/Solid State Drive Thumbnail 2 : Corsair Force MP500 120GB M.2 NVMe PCIe SSD/Solid State Drive Thumbnail 3 : Corsair Force MP500 120GB M.2 NVMe PCIe SSD/Solid State Drive Thumbnail 4 : Corsair Force MP500 120GB M.2 NVMe PCIe SSD/Solid State Drive Corsair Force MP500 120GB M.2 NVMe PCIe SSD/Solid State Drive : video thumbnail 1
Scan code: LN77245 Manufacturer code: CSSD-F120GBMP500
There are 5 people viewing this product
£55.49
Delivery Options
  • By DPD On 30th May 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

M.2 120GB Corsair MP500 SDD

MP500 120GB M.2 SSD

Incredible Speed at your Fingertips

The 120GB MP500 is a high-quality SDD that delivers incredible performance thanks to its easy to install M.2 form factor that is just 3mm in height, the Corsair MP500 SDD’s technical highlight is PCI-Express 3.0 x4 interface, which is the latest NVMe standard. This drive in particular has a storage capacity of 120GB, a with read speed of up to 3000MB/s and write speeds of up to 2400MB/s which delivers ultra-fast system boot times and less load times.

120GB

M.2
22x80

PCIe 3.0
NVMe

3000MB/s
Sequential Read

2400MB/s
Sequential Write

150K IOPS
Random Read

90K IOPS
Random Write

Build Smaller, Perform Faster

The Corsair Force MP500 series M.2 SSDs deliver high performance, quick system boot ups, blazing fast transfer speeds and ultimate reliability in a compact form factor.

Other Solid State Drives in the M.2 Corsair MP500 range:

240GB 480GB 960GB

Compact Size Without Compromise

M.2 Size

Superior Performance

CORSAIR NVMe M.2 SSDs enable a new level of performance in a compact form-factor. The CORSAIR NVMe PCIE boosts bandwidth, allowing you to access all of your data, load files and launch games with speeds up to 4x faster than SATA 3.0.

Corsair MP500 Features

NVMe PCI-E SSD 3.0 x4 Interface

The CORSAIR NVMe PCIe boosts blazing fast bandwidth, allowing you to access your data, load files and launch games with speeds up to 4x faster than SATA 3.0.

Static and Dynamic Wear-Leveling

Additional protection to enhance reliability and extend life of the drive.

Corsair SSD Toolbox Application

Monitor S.M.A.R.T attributes and SSD health status with support for over-provisioning, secure wipe, disk cloning, FW update and more.

Toughened Contact Surface

30um gold finger thickness improves contact to the motherboard and provides vibration resistance to ensure reliability in vigorous conditions.

Compact M.2 2280 Form Factor

CORSAIR NVMe M.2 SSD enables a new level of performance in a compact form factor.

Enhanced Error Correction

Additional error bit correction and improved data retention while supporting the latest generation NAND.

Specifications
Capacity 120GB
Edition Force MP500
Form Factor M.2 (2280)
Height 3mm
Interface PCIe 3.0 (x4)
Host Controller Interface NVMe
Controller Phison PS5007-E7
Flash Memory Type MLC NAND
Max. Read 3000 MB/s
Max. Write 2400 MB/s
DRAM Cache Memory 256MB
DRAM Cache Memory Type DDR3
Max. Random Read 4K 150,000 IOPS
Max. Random Write 4K 90,000 IOPS
Latency N/A
Special Features
  • 30um Gold Finger Thickness
  • Advanced Garbage Collection
  • Corsair SSD Toolbox Software Support
  • DEVSLP Support
  • Dynamic Wear-Leveling
  • Enhanced Error Correction
  • Smart ECC
  • Smart Refresh
  • SmartFlush
  • Static Wear-Leveling
Power Consumption (active) 4.44W
Max. Endurance Rating 175 TBW
MTBF
Max. Operating Vibration 20Hz~80Hz/1.52mm, 80Hz~2000Hz/20G
Max. Non-operating Vibration 20Hz~80Hz/1.52mm, 80Hz~2000Hz/20G
Max. Operating Shock 1,500G
Max. Non-operating Shock 1,500G
Connectivity 1 x M.2 (PCIe)
OS Support
  • Linux
  • Mac OS X
  • Windows 10
Bracket N/A
Dimensions
Weight
Package Type Retail
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
SCAN
Telephone:
0871 472 4747
Customers also bought
TekSpek Guides
SSD Form Factors
SSD Form Factors
Date Issued: 27th Nov 2017

The arrival of the solid-state drive (SSD) has revolutionised the speed at which modern PCs perform common tasks. This is because SSDs have no moving parts, compared to larger, bulkier mechanical drives, thus they store information on memory chips. This means that accesses, reads and writes are many, many times faster

Read More

Reviews
120GB Corsair Force MP500, M.2 (22x80) PCIe 3.0 (x4) NVMe SSD, MLC NAND, Read 3000MB/s, Write 2400MB/s, 150k/90k IOPS is rated 4.6 out of 5 by 5.
Rated 3 out of 5 by from Fast but hot Device is super fast, but it runs extremely hot, idles at 60-65c, under full load it got to 75c, which concerns me as the device starts to throttle down at 80c. Make sure your case has adequate airflow directly on to the m2 and if necessary, a third party heatsink. If I'd researched this prior, I'd probably went for the Samsung sm961..
Date published: 2018-05-17
Rated 5 out of 5 by from Great item and service again from scan Purchased this to replace an Intel optain device that was supplied in my new system. The Intel optain device is fast. But this NVME device leaves the optain in it's dust. Easy to install. Windows 10 took 15 minutes to install from a USB3 memory stick. Boot uptime reduced to less than 15 seconds from power on. Benchmark tests using a 500Mb file show a sequential read of 2550Mb/sec. Real world folder to folder showed a transfer of 1.9Gb in 1 second. This drive is fast, really fast.
Date published: 2018-05-02
Rated 5 out of 5 by from Amazing Excellent product. What a difference it’s made to my set up the boot times are ridiculous to what it was on my standard hard drive,45second to Now 15 seconds! That’s not a joke that’s real time on several tests amazing. Also excellent service and delivery times packaging etc from scan first class service for a first class product thanks!
Date published: 2018-04-17
Rated 5 out of 5 by from Lightning fast. Fast, easy to install, runs a bit warm. No fuss from windows. Runs perfectly well as a boot drive. I get an average temperature of 57c even though my case has good air flow. NVME M.2 drives like this could really do with factory fitted heatsinks. Still: Excellent for boot drive use.
Date published: 2017-06-22
Rated 5 out of 5 by from 120GB Corsair Force MP500, M.2 (22x80) PCIe 3.0 (x4) NVMe SSD, MLC NAND, Read 3000MB/s, Write 2400MB/s, 150k 10/10 Would by again. Once you use this for your O/S tour will never to back to a even a SSD. Lighting quick. Easy install. Will be buying a bigger version. You will not be disappointed if you purchase this
Date published: 2017-02-18
