Hot Seller

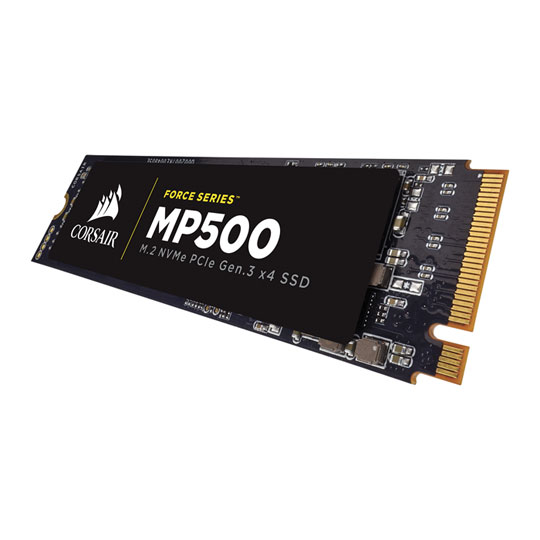

Corsair Force MP500 240GB M.2 NVMe PCIe SSD/Solid State Drive

240GB Corsair Force MP500, M.2 (22x80) PCIe 3.0 (x4) NVMe SSD, MLC NAND, Read 3000MB/s, Write 2400MB/s, 250k/210k IOPS

Corsair
Scan code: LN77246 Manufacturer code: CSSD-F240GBMP500 Request call
£129.98
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
From £11.67 / month (APR 14.9%)
Monthly Payment: £22.56
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £129.98
Total inc. interest: £135.33
Monthly Payment: £11.67
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £129.98
Total inc. interest: £140.02
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
High End
Delivery options £5.48 By DPD On 24th Jan 2018 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together

M.2 240GB Corsair MP500 SDD

MP500 240GB M.2 SSD

Incredible Speed at your Fingertips

The 240GB MP500 is a high-quality SDD that delivers incredible performance thanks to its easy to install M.2 form factor that is just 3mm in height, the Corsair MP500 SDD’s technical highlight is PCI-Express 3.0 x4 interface, which is the latest NVMe standard. This drive in particular has a storage capacity of 240GB, a with read speed of up to 3000MB/s and write speeds of up to 2400MB/s which delivers ultra-fast system boot times and less load times.

240GB

M.2
22x80

PCIe 3.0
NVMe

3000MB/s
Sequential Read

2400MB/s
Sequential Write

250K IOPS
Random Read

210K IOPS
Random Write

Build Smaller, Perform Faster

The Corsair Force MP500 series M.2 SSDs deliver high performance, quick system boot ups, blazing fast transfer speeds and ultimate reliability in a compact form factor.

Other Solid State Drives in the M.2 Corsair MP500 range:

120GB 480GB 960GB

Compact Size Without Compromise

M.2 Size

Superior Performance

CORSAIR NVMe M.2 SSDs enable a new level of performance in a compact form-factor. The CORSAIR NVMe PCIE boosts bandwidth, allowing you to access all of your data, load files and launch games with speeds up to 4x faster than SATA 3.0.

Corsair MP500 Features

NVMe PCI-E SSD 3.0 x4 Interface

The CORSAIR NVMe PCIe boosts blazing fast bandwidth, allowing you to access your data, load files and launch games with speeds up to 4x faster than SATA 3.0.

Static and Dynamic Wear-Leveling

Additional protection to enhance reliability and extend life of the drive.

Corsair SSD Toolbox Application

Monitor S.M.A.R.T attributes and SSD health status with support for over-provisioning, secure wipe, disk cloning, FW update and more.

Toughened Contact Surface

30um gold finger thickness improves contact to the motherboard and provides vibration resistance to ensure reliability in vigorous conditions.

Compact M.2 2280 Form Factor

CORSAIR NVMe M.2 SSD enables a new level of performance in a compact form factor.

Enhanced Error Correction

Additional error bit correction and improved data retention while supporting the latest generation NAND.

Specifications
Capacity 240GB
Edition Force MP500
Form Factor M.2 (2280)
Height 3mm
Interface PCIe 3.0 (x4)
Host Controller Interface NVMe
Controller Phison PS5007-E7
Flash Memory Type MLC NAND
Max. Read 3000 MB/s
Max. Write 2400 MB/s
DRAM Cache Memory 512MB
DRAM Cache Memory Type DDR3
Max. Random Read 4K 250,000 IOPS
Max. Random Write 4K 210,000 IOPS
Latency N/A
Special Features
  • 30um Gold Finger Thickness
  • Advanced Garbage Collection
  • Corsair SSD Toolbox Software Support
  • DEVSLP Support
  • Dynamic Wear-Leveling
  • Enhanced Error Correction
  • Smart ECC
  • Smart Refresh
  • SmartFlush
  • Static Wear-Leveling
Power Consumption (active) 4.89W
Max. Endurance Rating 349 TBW
MTBF
Max. Operating Vibration 20Hz~80Hz/1.52mm, 80Hz~2000Hz/20G
Max. Non-operating Vibration 20Hz~80Hz/1.52mm, 80Hz~2000Hz/20G
Max. Operating Shock 1,500G
Max. Non-operating Shock 1,500G
Connectivity 1 x M.2 (PCIe)
OS Support
  • Linux
  • Mac OS X
  • Windows 10
Bracket N/A
Dimensions
Weight
Package Type Retail
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
60 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 47 47
Customers also bought
TekSpek Guides
SSD Form Factors
SSD Form Factors
Date Issued: 27th Nov 2017

The arrival of the solid-state drive (SSD) has revolutionised the speed at which modern PCs perform common tasks. This is because SSDs have no moving parts, compared to larger, bulkier mechanical drives, thus they store information on memory chips. This means that accesses, reads and writes are many, many times faster

Read More

Reviews
240GB Corsair Force MP500, M.2 (22x80) PCIe 3.0 (x4) NVMe SSD, MLC NAND, Read 3000MB/s, Write 2400MB/s, 250k/210k IOPS is rated 5.0 out of 5 by 2.
Rated 5 out of 5 by from Fast and reliable I always buy reputable branded storage, especially ssd storage to try and mitigate any potential corruption etc. This drive is brilliant provided you have the time to set it all up via the bios/uefi to be able to boot from it.
Date published: 2017-04-23
Rated 5 out of 5 by from Fast. Not as fast as the 960 Evo/Pro, on paper. I wanted an MLC drive under £200 so this was my only real choice. This one is plenty fast for average OS usage and intensive applications alike. It has 1.5x the endurance of the 960 Pro (on paper per GB) which is nice.
Date published: 2017-01-20
  • y_2018, m_1, d_22, h_5
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.6
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_2
  • loc_en_GB, sid_77246, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

Are Migration tools available for SSD Corsair force MP500?

Are there specific migration tools provided by Corsair? I've sone a search and I can only find old tools that are not windows10 compatible and also charged for. If you've any advice that would be helpful - this looks a good SSD but samsung provide migration tools so their products may be a better option.
Asked by: samuel27
Hello, The Corsair SSD tools are currently not available from Corsair. There are other tools available that would be able to perform this task for Windows 10, though we cannot guarantee what software may work specifically with these drives. Regards,
Answered by: JackB
Date published: 2018-01-15
