Scan code: LN104612 Manufacturer code: NF-A9-PWM

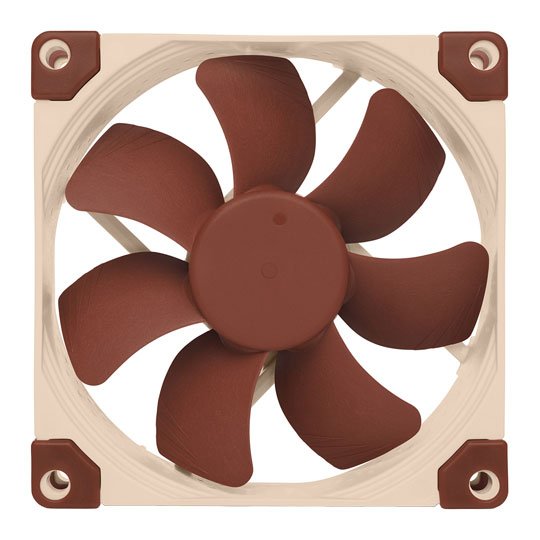

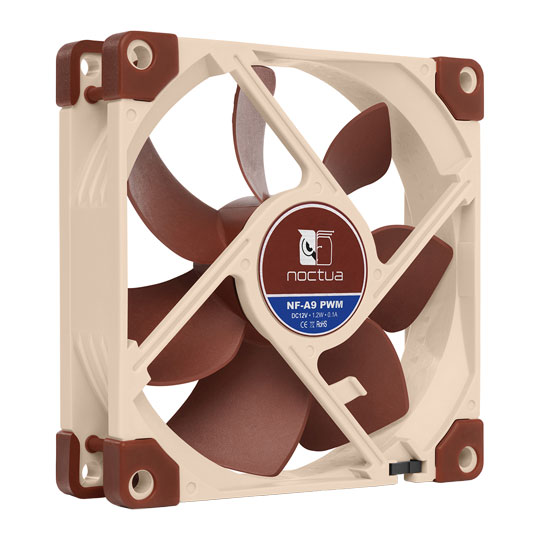

Noctua NF-A9 PWM 92mm Beige/Brown Fan

92mm Noctua NF-A9 PWM, Beige/Brown, 7 Blade, SSO2 Bearing, 400-2000RPM, 46.4CFM Airflow, 22.8dB, 4-pin PWM

Thumbnail 1 : Noctua NF-A9 PWM 92mm Beige/Brown Fan Thumbnail 2 : Noctua NF-A9 PWM 92mm Beige/Brown Fan Thumbnail 3 : Noctua NF-A9 PWM 92mm Beige/Brown Fan Thumbnail 4 : Noctua NF-A9 PWM 92mm Beige/Brown Fan
Scan code: LN104612 Manufacturer code: NF-A9-PWM
£16.99
Order now and get it tomorrow, Mon 28th Sep
Delivery Options
  • By DPD On 28th Sep to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Premium Quality 92mm Fan

The NF-A9 is a highly optimised, premium quality quiet 92mm fan. Featuring Noctua’s AAO (Advanced Acoustic Optimisation) frame as well as sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A9 further improves the renowned quiet cooling performance of the award-winning NF-B9. The PWM version sports Noctua’s custom designed NE-FD1 IC for fully automatic speed control via 4-pin fan headers and comes with a Low-Noise-Adaptor to reduce the maximum speed during PWM control from 2000 to 1550rpm. Its superb running smoothness, reference-class SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for the highest demands.


Succeeding the Award-Winning NF-B9

Noctua's NF-B9 fan has become a default-choice among PC enthusiasts looking for a premium quality quiet 92mm fan. Thanks to its thoroughgoing aerodynamic optimisations, the NF-A9 provides higher static pressure and an even better airflow/noise ratio than its much acclaimed predecessor.


Flow Acceleration Channels

The NF-A9 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.


AAO Frame

Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.


Stepped Inlet Design

Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.


Inner Surface Microstructures

With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.


Integrated Anti-Vibration Pads

Integrated anti-vibration pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.


SSO2 Bearing

The NF-A9 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.


Custom-designed PWM IC with SCD

Supporting fully automatic PWM speed control, the NF-A9 PWM uses Noctua's novel, custom-designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at low speeds.


Stops at 0% PWM

When the fan is set to 0% PWM duty cycle by the motherboard or PWM fan controller, it will stop. This makes it ideal for creating setups with semi-passive cooling that automatically turn the fans off and thus run completely silent at idle if thermals allow.


Low-Noise Adaptor

The NF-A9 PWM is supplied with a (L.N.A.) that reduces the maximum fan speed from 2000 to 1550rpm. The L.N.A. can be used either to run the fan at a fixed speed of 1550rpm or to cap the maximum speed when using automatic PWM control.


Extensive Cabling Options

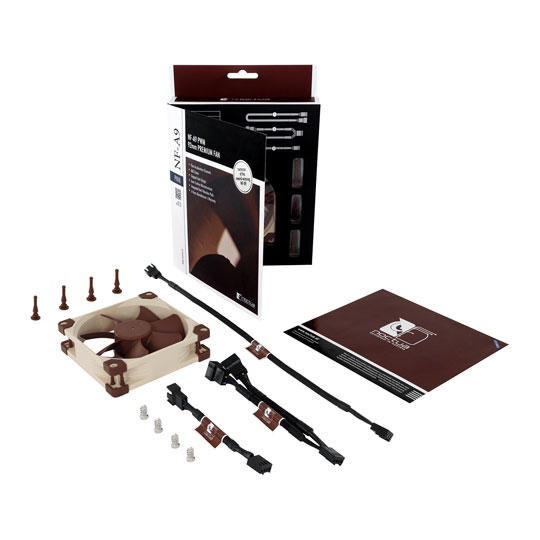

The fan's short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved and a 4-pin y-cable allows the connection of a second NF-A9 PWM fan to the same PWM fan header for automatic control.


6-Year Manufacturer’s Warranty

Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-A9 features an MTTF of more than 150.000 hours rating and comes with a full 6-year manufacturer’s warranty.

Features
• Sound-optimised blade geometry and profile (Flow Acceleration Channels).
• Self-stabilising oil-pressure bearing (SSO2 Bearing).
• <17 dB(A) minimum noise with supplied L.N.A.
• 46.4 CFM maximum airflow.
• Includes 4 Vibration-Compensators.
• Six years warranty.
Specifications
Pack Information
Edition NF-A9 PWM
Pack Type Single (1) Fan Standalone Pack
Includes
  • 1 x 92mm Fan/s
  • 4 x Fan Mounting Screws
Individual Fan Specifications
Fan Diameter 92mm
Fan Depth 25 mm
Fan Speed 400 - 2000 rpm
Fan Blades 7
PWM Yes
Fan Specialization Inaudible Airflow
Airflow 46.4 CFM
Air Pressure 2.28 mm H²O
Sound Level (dBA) 22.8 dBA
Sound Level (Sone)
Motor Type
Bearing Type SSO2
Manual Speed Controller No
Material Plastic / Rubber
Fan Colour Beige/Brown
LED No
LED Colour
MTBF 150000 Hours
Fan Fixing
  • Push-pin Fixing
  • Rubber Fan Mounts
  • Screw Fixing
Cable length 200 + 300 mm
Connectors 1 x 4-pin
Additional Information
Scan Code LN104612
Model Number NF-A9-PWM
GTIN 4716123315513
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
72 months
Type:
Direct
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Noctua
