be quiet 92mm Silent Wings 2 PWM Quiet PC Case Fan

92mm be quiet! Silent Wings 2, 7 Blade, PWM, Inaudible Airflow Fan, 1800rpm, 32.6CFM, 17.4dB, Fluid Dynamic Bearing,4pin

be quiet!
Scan code: LN50054 Manufacturer code: BL029 Request call
£16.99
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD On 13th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview Variable, Virtually Inaudible, State of the Art Cooling
The SilentWings 2 fan family provides the greatest airflow-to-noise ratio and highest reliability on the market. Key to these fans' unrivalled and uncompromising performance are a unique airflow-optimized fan blade design, custom anti-vibration mounts, and a high-tech fluid dynamic bearing with copper core that greatly reduces noise and imparts super-long life. Through this advanced technology these fans achieve virtually silent operation without sacrificing airflow, and so offer the perfect balance between superior cooling and serenity.

The newest member of the family, SilentWings 2 PWM, adds variable-speed capability to this formidable combination of features and abilities. Just connect one to the PWM header on your mainboard or fan controller to achieve fine control over the fan speed and noise profile.

The SilentWings 2 PWM 92mm model is a medium size fan that combines all of the above class-leading features and provides more cooling air flow than smaller fans, at noise levels down to 17.4 dB(A). Features Virtually Silent Operation
SilentWings® 2 fans include a wide array of electronic and mechanical optimizations for superior air flow with very low noise production.

• Unique airflow-optimized fan blade design reduces noise-generating fan turbulence.
• Advanced fluid dynamic bearing providing for greatly reduced operating noise.

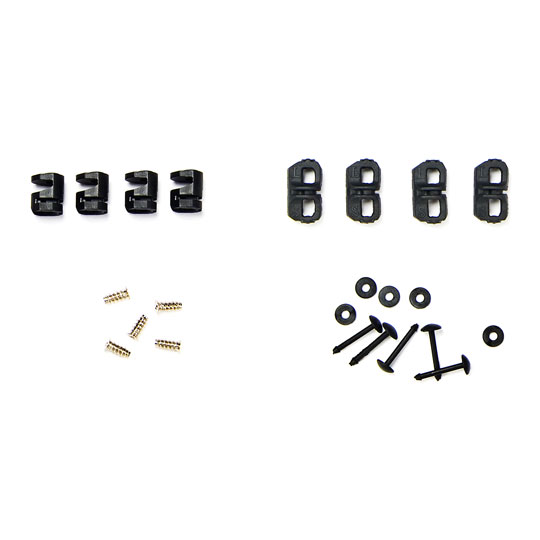

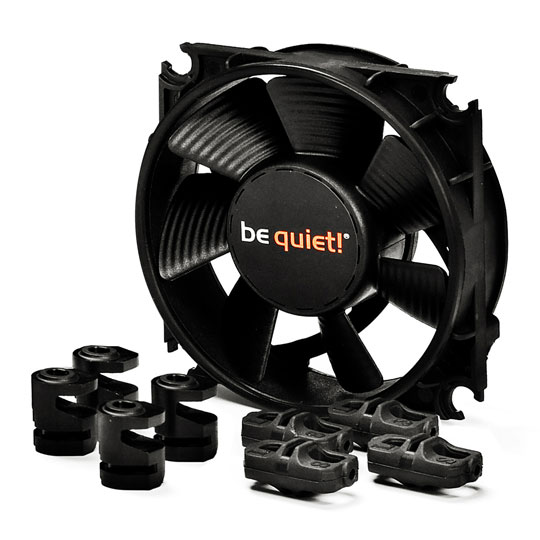

• Improved modular vibration damping mounts and rubberized frame help prevent transmission of vibration to computer case and its components.
• Option for direct hard mount when preferred.
• Advanced high quality IC motor controller reduces electrical noise.

Variable Speed Function
• Pulse Width Modulation (PWM) allows compatible 4-pin controllers (including those built into many motherboards) to intelligently vary the speed (and thus the noise level) of the fan. With PWM your system can ramp up the cooling when it's needed, or operate in maximum quiet mode when it's not.

Engineering
• Advanced fluid dynamic bearing (FDB) with industrial grade lubricant eliminates direct contact between rotor and frame, resulting in extremely low noise levels.
• The FDB has a copper core that conducts heat away from the bearing more effectively, enabling super-long fan life of up to 300,000 hours.
• Dynamically balanced fan blades enhance reliability and result in maximum operating silence
• German product conception, design and quality control.
Specifications
Specifications
Edition SILENT WINGS 2
Fan Diameter 92mm
Fan Depth 25 mm
Fan Speed 1800 rpm
Fan Blades 7
PWM Yes
Fan Specialization Inaudible Airflow
Airflow 32.6 CFM
Air Pressure 1.98 mm H2O
Sound Level 17.4 dB
Motor Type 4-pole Motor
Bearing Type Fluid Dynamic Bearing
Manual Speed Controller No
Material Plastic / Rubber
Fan Colour Black
LED No
LED Colour N/A
MTBF 300,000 Hours
Fan Fixing
  • Push-pin Fixing
  • Screw Fixing
Cable length 450 mm
Connectors 1 x 4-pin
