be quiet 80mm Silent Wings 2 PWM Quiet PC Case Fan

80mm be quiet! Silent Wings 2, 7 Blade, PWM, Inaudible Airflow Fan, 2000rpm, 26CFM, 15.5dB, Fluid Dynamic Bearing, 4-pin

be quiet!
Scan code: LN50053 Manufacturer code: BL028 Request call
£14.99
In stock
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
3xs Approved High End
Delivery options £5.48 By DPD On 8th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Frequently Bought Together

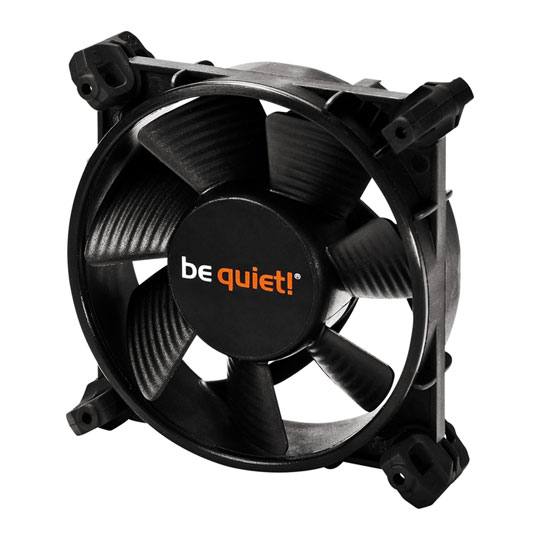

Product Overview Variable, Virtually Inaudible, State of the Art Cooling
The SilentWings 2 fan family provides the greatest airflow-to-noise ratio and highest reliability on the market. Key to these fans' unrivalled and uncompromising performance are a unique airflow-optimized fan blade design, custom anti-vibration mounts, and a high-tech fluid dynamic bearing with copper core that greatly reduces noise and imparts super-long life. Through this advanced technology these fans achieve virtually silent operation without sacrificing airflow, and so offer the perfect balance between superior cooling and serenity.

The newest member of the family, SilentWings 2 PWM, adds variable-speed capability to this formidable combination of features and abilities. Just connect one to the PWM header on your mainboard or fan controller to achieve fine control over the fan speed and noise profile.

The SilentWings 2 PWM 80mm model is a standard size fan that combines all of the above class-leading features with operating noise levels down to a virtually silent 15.5 dB(A). Features Virtually Silent Operation
SilentWings® 2 fans include a wide array of electronic and mechanical optimizations for superior air flow with very low noise production.

• Unique airflow-optimized fan blade design reduces noise-generating fan turbulence.
• Advanced fluid dynamic bearing providing for greatly reduced operating noise.

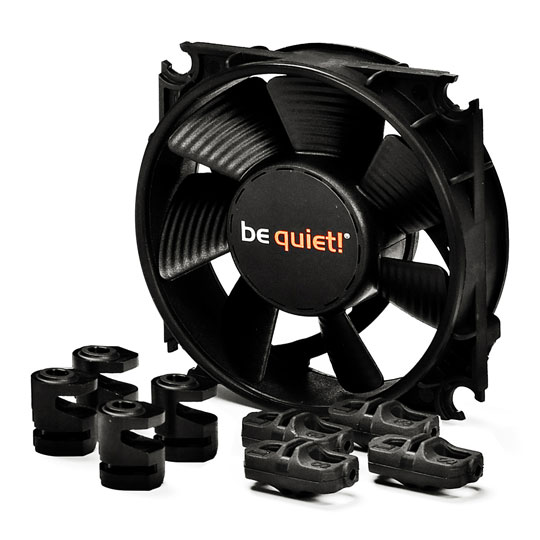

• Improved modular vibration damping mounts and rubberized frame help prevent transmission of vibration to computer case and its components.
• Option for direct hard mount when preferred.
• Advanced high quality IC motor controller reduces electrical noise.


Variable Speed Function
• Pulse Width Modulation (PWM) allows compatible 4-pin controllers (including those built into many motherboards) to intelligently vary the speed (and thus the noise level) of the fan. With PWM your system can ramp up the cooling when it's needed, or operate in maximum quiet mode when it's not.

Engineering
• Advanced fluid dynamic bearing (FDB) with industrial grade lubricant eliminates direct contact between rotor and frame, resulting in extremely low noise levels.
• The FDB has a copper core that conducts heat away from the bearing more effectively, enabling super-long fan life of up to 300,000 hours.
• Dynamically balanced fan blades enhance reliability and result in maximum operating silence.
• German product conception, design and quality control.
Specifications
Specifications
Edition SILENT WINGS 2
Fan Diameter 80mm
Fan Depth 25 mm
Fan Speed 2000 rpm
Fan Blades 7
PWM Yes
Fan Specialization Inaudible Airflow
Airflow 26 CFM
Air Pressure 2.25 mm H2O
Sound Level 15.5 dB
Motor Type 4-pole Motor
Bearing Type Fluid Dynamic Bearing
Manual Speed Controller No
Material Plastic / Rubber
Fan Colour Black
LED No
LED Colour N/A
MTBF 300,000 Hours

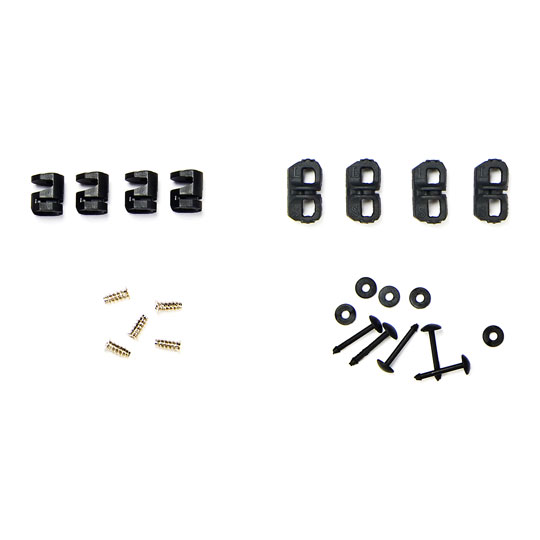

Fan Fixing
  • Push-pin Fixing
  • Screw Fixing
Cable length 450 mm
Connectors 1 x 4-pin
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Direct
DOA Period:
7 days
Manufacturer Contact Details
Manufacturer:
be quiet!
TekSpek Guides
Chassis Airflow
Chassis Airflow
Date Issued: 20th Oct 2008

The modern PC is potentially a mass of heat output and heat production hot spots. With CPUs rated at more than 100W of heat output, single graphics boards carrying similar ratings (and people want to run two!), multiple hard drives the norm, lots of memory and mainboards covered in heatpipes to combat toasty core logic and PWM circuits, a PC appreciably warming up a room when it’s working hard is no joke.

Read More

Watercooling
Watercooling
Date Issued: 19th Jun 2008

Watercooling for the PC has been around for years in some form or another, for at least as long as Scan have been in business, with basic physics defining why you want to use it. That means for air cooling, to cope with increasing temperature in the heatsink you need to move the air across it faster. That is why thermostatically controlled fans in your PC will turn faster the hotter something gets.

Read More

System Noise Reduction
System Noise Reduction
Date Issued: 5th Mar 2007

Anybody who has been near their share of computer systems will appreciate that not all systems make the same amount of noise. There are a number of reasons for why this is so. Firstly, a computer makes noise for different reasons. Generally, anything mechanical is going to make noise.

Read More

Reviews
Rated 5 out of 5 by 2 reviewers.
Rated 5 out of 5 by WOW factor fans.... Silent wings 2....... Fantastic performance, packaging and accessories... These fans were everything I was hoping to buy and more.... So, maybe the price was a little high.... but I do believe you get what you pay for nowadays.. I know that normally 80/92mm fans are quite noisey, but these surprised me... I intend to put a couple of these in my next build/project without hesitation.... Superb product all round 10/10..... 27 April 2015
Rated 5 out of 5 by Buying a Be Quiet! fan is an experience I have not experienced a fan like the be quiet before. Everything just works, even rubber mounts to my 7mm thick case. So quiet, and such a good quality. 26 February 2015
  • 2016-05-20 T12:52:37.853-05:00
  • bvseo_lps, prod_bvrr, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasreviews, tv_2, tr_2
  • loc_en_US, sid_50053, prod, sort_default
1-2 of 2
Questions & Answers
