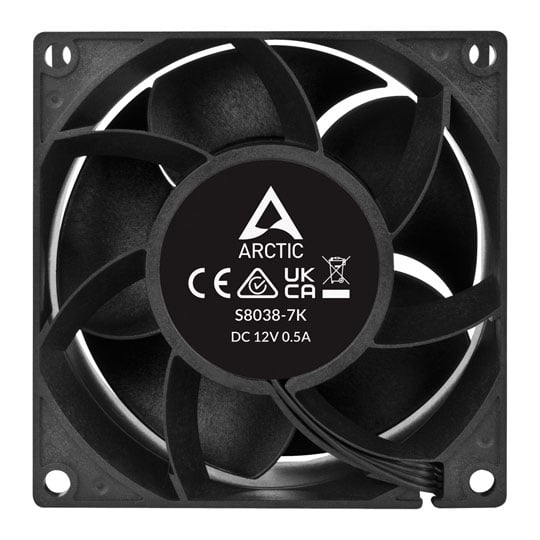

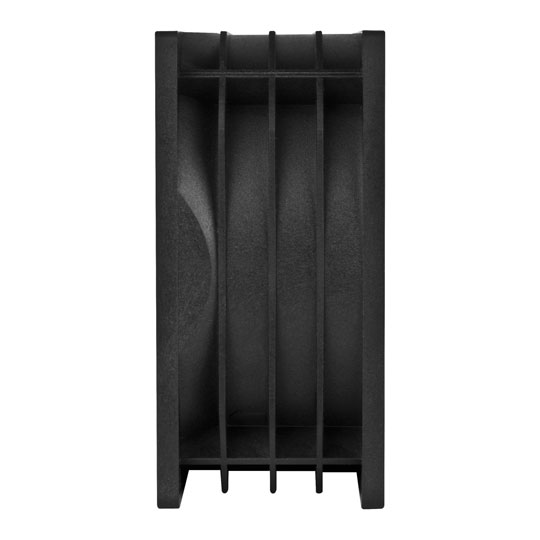

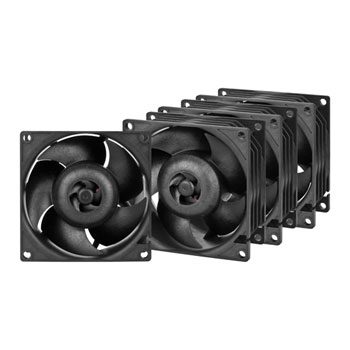

Arctic 80mm S8038-7K Airflow/Pressure Optimised Server Fan - 4 Pack

80mm Arctic S8038-7K (4 Pack) Fans, Black, Airflow/Pressure Optimised, 5 Blade, Dual Ball Bearing, 7000rpm, 70CFM, PWM

Thumbnail 1 : Arctic 80mm S8038-7K Airflow/Pressure Optimised Server Fan - 4 Pack Thumbnail 2 : Arctic 80mm S8038-7K Airflow/Pressure Optimised Server Fan - 4 Pack Thumbnail 3 : Arctic 80mm S8038-7K Airflow/Pressure Optimised Server Fan - 4 Pack Thumbnail 4 : Arctic 80mm S8038-7K Airflow/Pressure Optimised Server Fan - 4 Pack
Scan code: LN145432 Manufacturer code: ACFAN00292A
£29.99Item currently awaiting an ETA
Pre order
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

New Standards in Energy Efficiency

In server environments, often no attention is paid to the power consumption of the fans used, and these often do not fulfil the requirements for energy efficiency. ARCTIC has set itself the goal of developing one of the most efficient server fans. The progress we have made shows once again that efficiency and innovation do not necessarily have to be expensive. The S8038 series consumes only half the power compared to well-known competitor products with the same performance and also offers a longer service life.


Full Control with a Wide Speed Range

The S8038-7K offers a wide speed range that can be controlled both via PWM and voltage. This enables perfect optimisation of the fan to the specific requirements of the system. With a speed range from 500 rpm to 7000 rpm, it offers an ideal balance between cooling performance and noise development despite different requirements. The standard 4-pin connection additionally allows the S8038-7K to be connected to 2-pin or 3-pin headers and thus be controlled by voltage instead of PWM. The 30 cm long cable offers excellent flexibility when positioning the fan.


Active Cooling for Extended Motor Lifespan

The lifespan of fans is mostly determined by the lifespan of the motor, which is significantly dependent on the motor temperature, especially in long-term operation. The motor of the S8038-7k is actively cooled by an additional impeller in the fan hub. By maintaining lower motor temperatures, its lifespan is extended by up to 50 %. This advance not only leads to improved operating efficiency, but also to significant cost savings in the long run. An adhesive label for the motor hub is included in the delivery, which ensures a long service life even in particularly dusty environments.


Wide Range of Applications

The S8038-7K fits into 2U server cases and serves as an upgrade or replacement for a CPU fan, radiator fan or for system ventilation. In addition to server cooling, it is also used in industrial systems and plays an important role in machine control and automation systems. Reliable and robust, it guarantees performance in various hardware environments and ensures efficient cooling and minimal downtime.


High Airflow and Static Pressure

Heat sinks and radiators benefit from fans with high static pressure. The S8038-7K has a static pressure of 25 mm/H2O, which enables it to push air, even through narrow cooling fins. At the same time, it achieves a maximum airflow of 118.93 m³/h allowing it to quickly dissipate heat from enclosures. These properties make it the ideal choice for a wide range of applications.


Designed for Continuous Operation

The impeller of the S8038-7K is held in place by two ball bearings, making it not only particularly durable but also less sensitive to external influences such as heat and dust.


Features


• Fan Bearing: Dual Ball Bearing.
• Fan Speed: 500 - 7000 rpm.
• Airflow: 70 CFM.
• Speed Control: Pulse Width Modulation - PWM.
• Static Pressure: 25 mm H2O.


Specifications
Pack Information
Edition S8038-7K 4 Pack
Pack Type
Includes 4 x 80mm Fan/s
Individual Fan Specifications
Fan Diameter 80mm
Fan Depth 38 mm
Fan Speed 500 - 7000 rpm
Fan Blades 5
PWM Yes
Fan Specialization
Airflow 70 CFM
Air Pressure 25 mm H²O
Sound Level (dBA)
Sound Level (Sone)
Motor Type
Bearing Type Dual Ball Bearing
Manual Speed Controller No
Material
Fan Colour Black
LED No
LED Colour
MTBF
Fan Fixing
Cable length 300 mm
Connectors
Additional Information
Scan Code LN145432
Model Number ACFAN00292A
GTIN 4895213704304
