Scan code: LN148305 Manufacturer code: MAG A750BN PCIE5

MSI MAG A750BN 750W Fully Wired 80+ Bronze PCIE 5.0 ATX Power Supply

750W MSI MAG A750BN, Fully Wired, 80PLUS Gold, Single Rail, PCIe 5.0, 62.5A, 120mm Fan, ATX PSU

Thumbnail 1 : MSI MAG A750BN 750W Fully Wired 80+ Bronze PCIE 5.0 ATX Power Supply Thumbnail 2 : MSI MAG A750BN 750W Fully Wired 80+ Bronze PCIE 5.0 ATX Power Supply Thumbnail 3 : MSI MAG A750BN 750W Fully Wired 80+ Bronze PCIE 5.0 ATX Power Supply Thumbnail 4 : MSI MAG A750BN 750W Fully Wired 80+ Bronze PCIE 5.0 ATX Power Supply
Scan code: LN148305 Manufacturer code: MAG A750BN PCIE5
Order now and get it tomorrow, Wed 24th Jul
£69.98
Get it Tomorrow, 24 JulIn stock
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 24th Jul to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Unite As One

The MAG A750BN PCIE5's distinctive design works to symbolise unity and strength. It unites all the components by supplying power to the entire system with stunning reliability and stability. With the MAG A750BN PCIE5, any system has the power it needs to survive all challenges of modern day computing.


PCIE 5.0 READY

It has an output port that is compliant with PCIe 5.0, enabling to support the RTX 4070* series graphics cards.

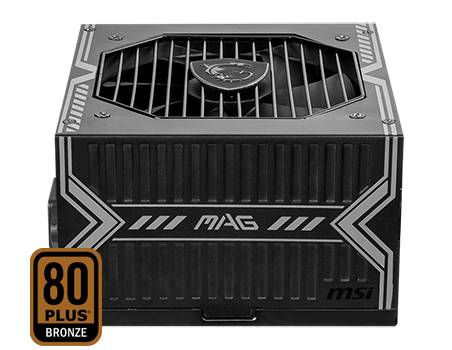

80 PLUS Bronze Certification

The efficiency of your power supply directly influences your system’s performance and power consumption. The 80 PLUS certification promises lower energy consumption and qualified efficiency level.


Active PFC Design

The active PFC improves the efficiency of the power output and provides a more stable environment for other PC components to operate in.

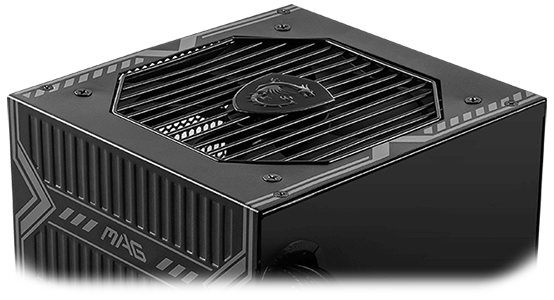

Temperature Adaptation

Engineered for reliability, your system can operate safely at peak performance even under high-temperature conditions. This rugged power supply ensures sustained operation regardless of your environment.

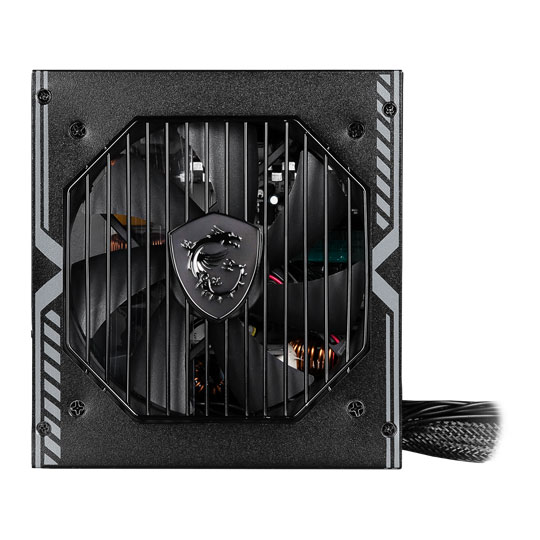

120mm Low Noise Fan

The 120mm fan reduces the noise generated while maintaining excellent heat dissipation.


Features

• PCIe 5.0 Ready (300W)
• 120mm Fan
• DC to DC power Design
• Active PFC Design
• Industrial level protection with OVP, OCP, SCP, OPP, OTP

Specifications
Form Factor ATX
Edition MAG A750BN PCIE5
Wattage 750 W
80 PLUS Certification 80 PLUS Bronze
Max. Efficiency (at 230Vac) 85 %
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 62.5 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 62.5 A
Modular No
Modularity Fully Wired
SLI/CrossFire No
EPS 12V Yes
Motherboard Connector 24-pin
Connectors
  • 1 x 16-pin PCIe
  • 1 x 4+4-pin CPU +12V (EPS)
  • 1 x 4-pin FDD Adapter
  • 2 x 4-pin Molex
  • 2 x 6+2-pin PCIe
  • 1 x SATA
Dimensions 150 x 86 x 140 (WxHxD)
Package Type Retail
Warranty
Additional Information
Scan Code LN148305
Model Number MAG A750BN PCIE5
GTIN 824142333808
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
MSI
Telephone:
0870 820 0009
