Scan code: LN137389 Manufacturer code: MAG A750GL PCIe5

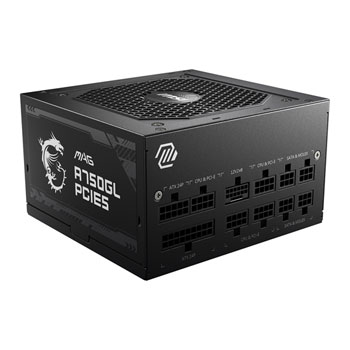

MSI MAG A750GL 750W Full Modular 80+ Gold PCIE 5.0 ATX3.0 Compact Power Supply

750W MSI MAG A750GL, Fully Modular, PCIe 5.0 80PLUS Gold, Single Rail, PCIe 5.0, 62A, 120mm Fan, ATX 3.0 PSU

Thumbnail 1 : MSI MAG A750GL 750W Full Modular 80+ Gold PCIE 5.0 ATX3.0 Compact Power Supply Thumbnail 2 : MSI MAG A750GL 750W Full Modular 80+ Gold PCIE 5.0 ATX3.0 Compact Power Supply Thumbnail 3 : MSI MAG A750GL 750W Full Modular 80+ Gold PCIE 5.0 ATX3.0 Compact Power Supply Thumbnail 4 : MSI MAG A750GL 750W Full Modular 80+ Gold PCIE 5.0 ATX3.0 Compact Power Supply
Scan code: LN137389 Manufacturer code: MAG A750GL PCIe5
£99.98Item currently awaiting an ETA
Pre order
From £9.06 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £9.06
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £99.98
Total inc. interest: £108.71
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

MSI steam promotion

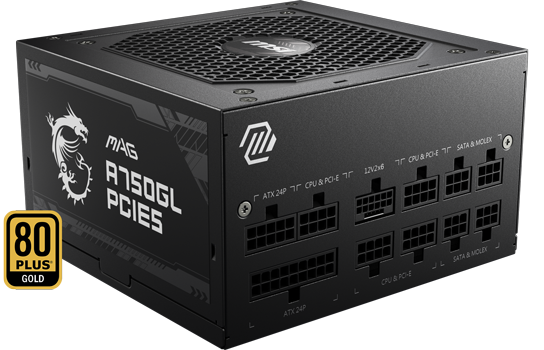

MAG A750GL PCIE5 750W 80 PLUS Gold Fully Modular Power Supply from MSI

MSI PCIe 5.0 PSU

Overflow with PowerThe MAG A750GL PCIE5 power supply offers 80 PLUS Gold-certified energy efficiency, ATX 3.0 compatibility, PCIe 5.0 GPU support (up to 450W), and a Fluid Dynamic Bearing (FDB) fan for quiet and stable performance.

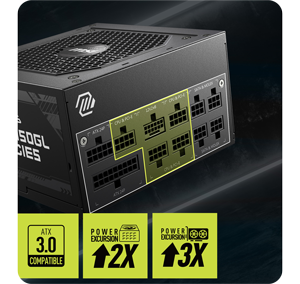

Embrace ATX 3.0 Compatibility

ATX 3.0 Compatible

Fully Modular DesignBeing ATX 3.0 compatible, the MAG A750GL PCIE5 power supply can handle up to 2x total power excursions and 3x GPU power excursions.

A fully modular design means that only the connectors required for by the build are used. This significantly reduces cable clutter, simplifies the overall build and improving airflow.

Seated on The Cutting-Edge

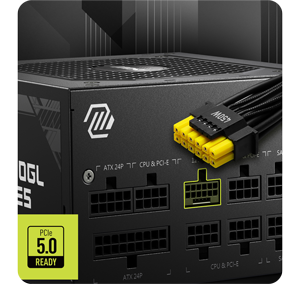

Gen 5 Support

PCIe 5.0 GPU SupportedThe MSI MAG A750GL PCIE5 power supply features extra GPU power feeds (3 x 8-pin VGA connectors) to support a broad array of NVIDIA and AMD graphics cards.

Alternatively, through the native 16-pin PCIe connector, the PSU can provide up to 450W of power to a PCIe 5.0 GPU.

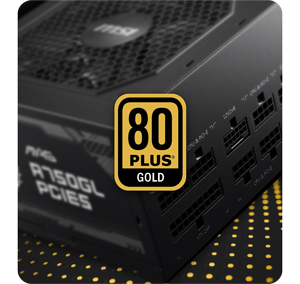

80 PLUS Gold Certified

80 PLUS Gold

Reliable, Efficient power deliveryThe efficiency of a power supply directly influences system performance and power consumption. An 80 PLUS Gold certified rating means higher efficiency (up to 90%) and reduces internal thermal loading.

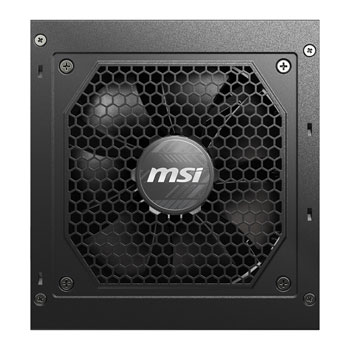

Exceptionally Quiet Operation

Fluid Dynamic Fan

Fluid-Dynamic Bearing FanDeveloped for quiet and stable operation, a 120 mm Fluid-Dynamic Bearing achieves a good balance between cooling performance and noise level.

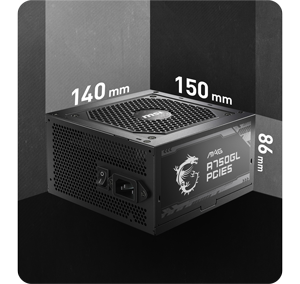

ATX Form Factor


            compact form factor

Compact SizeA compact 140 mm-long and 150 mm-wide ATX form factor ensures a comfortable and easy fit in most PC cases. This frees up more space for cable management and airflow to the rest of the system.

Improved Cable Management

Flat black Cables

Use What You NeedThe flat black cables allow for improved cable management and provide more space for airflow. Because of its fully modular design, only the necessary cables need to be plugged in and the rest can be stored in the supplied cable bag.

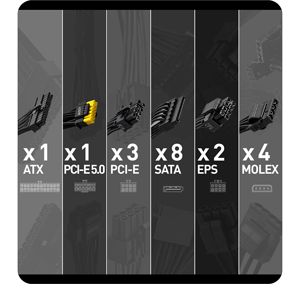

Massive Connectivity Options

Huge connectivity options

Impeccable Hard-Ware SupportBy offering a wide range of connectivity options, the MAG A750GL PCIE5 power supply guarantees extensive hardware support. Connect multiple hard drives, SSDs, graphics cards and other components to satisfy your needs. The cable connectors are made of premium copper alloy, which offers better current surge protection than generic phosphor bronze.

Specifications
Form Factor ATX 3.0
Edition MAG A750GL
Wattage 750 W
80 PLUS Certification 80 PLUS Gold
Max. Efficiency (at 230Vac) 90 %
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 62 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 62 A
Modular Yes
Modularity Full Modular
SLI/CrossFire No
EPS 12V Yes
Motherboard Connector 24-pin

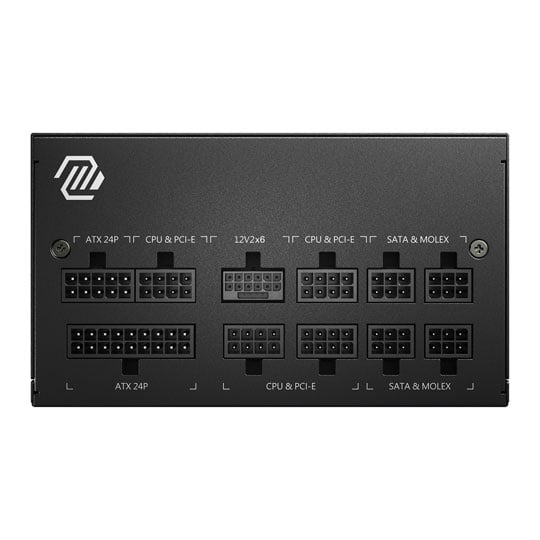

Connectors
  • 1 x 16-pin PCIe
  • 2 x 4+4-pin CPU +12V (EPS)
  • 1 x 4-pin FDD Power
  • 4 x 4-pin Molex
  • 3 x 6+2-pin PCIe
  • 8 x SATA
Dimensions 150 x 86 x 140 (WxHxD)
Package Type Retail
Warranty
Additional Information
Scan Code LN137389
Model Number MAG A750GL PCIe5
GTIN 3067818010314
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
MSI
Telephone:
0870 820 0009
