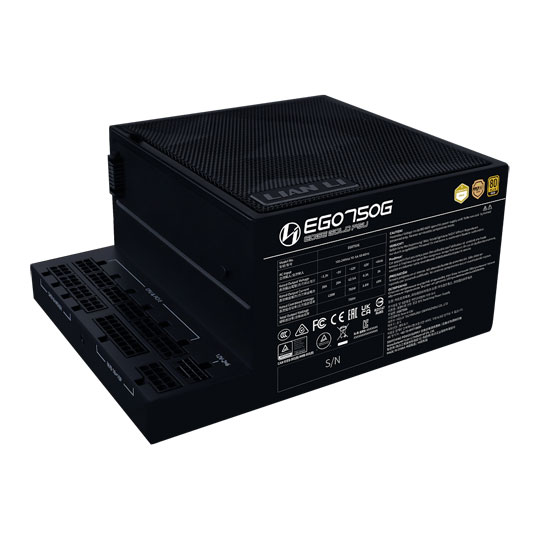

Lian Li EDGE GOLD 750 Watt Fully Modular 80+ Gold PSU - Black
750W Lian Li EDGE GOLD, Fully Modular, 80 PLUS Gold, Single Rail, 62.5A, 120mm Fan, ATX PSU, Black
750W EDGE GOLD 80 PLUS Gold Fully Modular PSU from Lian-Li
GOLD CLASS INNOVATIONThe Lian Li EDGE GOLD PSU is more than just a power source; it's the gleaming cornerstone of your build, designed to shine and streamline. With its striking L-shape, this PSU is tailor-made for dual-chamber systems like the LIAN LI O11 series, elevating both form and function. A level above the regular EDGE Series, these PSUs contain mounting points for the incredibly innovative USB & PWM Fan Hub (available as a seperate purchase for this model), giving you the option to link up and explore internal Lian-Li accessories such as the UNI Fans and STRIMER controllers without worrying about risking I/O panel functionality or messy cable routing. Fully compliant with the ATX 3.0 and 3.1 specifications, the EDGE GOLD PSU is future-ready, accommodating the latest high-performance motherboards and components. This adherence to evolving standards ensures it remains a robust solution for cutting-edge builds, and an excellent turning point for making the Lian Li ecosystem more approachable than ever.
750Watts
62.5Amps
ATX 3.1Form Factor
NOTE: The images below are used for illustration purposes. Refer to the top image for the correct product colour.
An Extra Step Up
L-SHaped designEngineered specifically for dual-chamber chassis, the EDGE PSU’s L-shape design is ideal for vertical installation at the second chamber. This unique form factor reorients the connectors outward, allowing you to tame cables much easier. The PSU also features a raised connector which allows you to link up your Lian-Li ecosystem with an EDGE GOLD USB Fan Hub, available as a separate purchase for this variant.
Extensive Efficiency
GOLDen GREATNESSAchieving the 80 PLUS, Cybenetics and PPLP Gold certifications, the EDGE GOLD Series ensures top-tier energy efficiency, reducing power consumption and heat output while delivering reliable, stable performance.
80PLUS GOLDThis certification guarantees that a PSU operates with at least 87% energy efficiency at 20%, 50%, and 100% loads, helping reduce wasted energy and lower electricity bills.
Cybenetics GoldCybenetics rates PSUs based on their efficiency, noise output, and build quality, offering a more comprehensive understanding of a PSU’s real-world performance.
PPLP GoldPLP certification ensures that a PSU can handle varying loads without voltage drops or instability, guaranteeing reliable power delivery under different usage conditions.
Dual Colour PCIe 5.1 Connector
1Dual-colour shell ensures a firm, clear connection for easy installation.
2Gold plating added to prevent any risk of short circuits, keeping things safe.
3Soldered wire and terminal connections ensure stable current flow.
4Increased copper thickness (0.25mm) lowers contact resistance for better efficiency.
custom designed 12vhpwrLIAN LI’s in-house R&D developed 12V-2×6 alloy copper soldered terminals for secure and efficient power delivery, enhancing system stability and performance. The terminal maintain a contact resistance below 1.5mΩ after 50 plug/pull cycles, compared to ordinary terminals at 2-3mΩ, enhancing the connector’s performance and long-term reliability.
Cool & Controlled
Springing into actionThanks to the 0dB technology, the PSU fan stays on standby during low loads, ensuring silent operation. Once the load hits around 390W, the fan activates to maintain cooling efficiency. This gradual increase in fan speed helps balance performance and noise, ensuring that cooling is only used when necessary, while keeping noise levels minimal during lighter use.
120mm PWM Fan The EDGE GOLD PSU features a 0dB 120mm PWM fan located behind a magnetic mesh dust filter at the top of the unit. This fan operates in silent mode until it’s needed, ensuring minimal noise during lighter loads. The magnetic mesh dust filter is easy to remove, making regular cleaning straightforward to maintain optimal performance. With a high porosity of 66.9%, the mesh allows for excellent airflow while keeping noise to a minimum.
Industrial Grade Capacitors
GERMAN EPCOS CAPACITORSThe EDGE GOLD line also integrate German EPCOS capacitors, offering compact, robust performance with higher tolerance to temperature and harsh environments. Featuring LLC topology and Active PFC, the EDGE series enhances efficiency, reduces heat generation, and ensures cleaner, more reliable power delivery.
SATA Synergy
Extended SATA SolutionsThe EDGE GOLD PSU series goes beyond the standard SATA connectivity by incorporating Y-type and close-type connectors, in addition to the usual options. The Y-type connectors are ideal for powering multiple devices from a single cable, reducing clutter and helping maintain a clean build. The close-type connectors are designed for more compact setups, providing a tidy cable management solution when storage drives are placed near one another. These cables are also longer than those found in the previous EDGE series, giving users more flexibility when arranging components and improving overall airflow.
CLOSE-TYPE SATAA long cable with 15mm spacing between power connectors, making it easy to attach devices while maintaining a tidy setup.
Y-TYPE SATAPerfect for connecting drives and controllers located in different areas, providing flexibility and reducing cable clutter.
Always Reliable
Where structure meets promiseEngineered with premium materials, the EDGE GOLD series delivers not just power, but unwavering reliability built for the long haul. Designed to endure, this PSU redefines expectations with a blend of performance and durability. Backed by a comprehensive 10-year warranty, it’s more than a power supply—it’s a promise of quality you can depend on, year after year.
