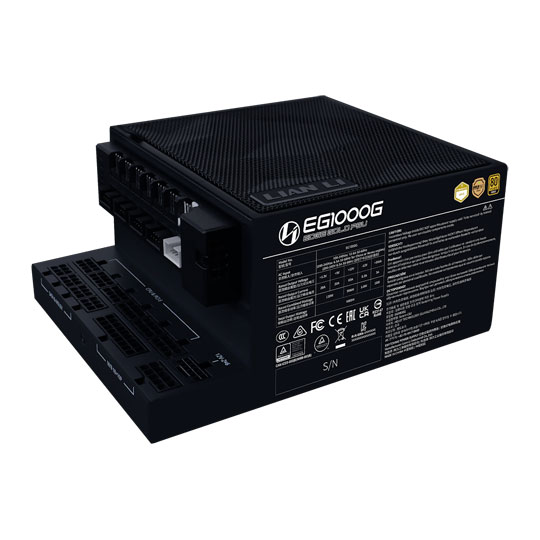

Lian Li EDGE GOLD 1000 Watt PCIE 5.1 Fully Modular 80+ Gold PSU with USB & Fan Hub - Black
1000W Lian Li EDGE GOLD, Fully Modular, PCIE 5.1 80PLUS Gold, Single Rail, 83.3A, 120mm Fan, PSU, Black ATX3.1
Email me when the availability or price changes
Suggested Alternatives
1000W Lian Li EDGE GOLD, Fully Modular, 80 PLUS Gold, Single Rail, 83.3A, 120mm Fan, ATX PSU, White
LN153352
No customer review£155.99Due 15th Jun
1200W Lian Li EDGE GOLD, Fully Modular, 80 PLUS Gold, Single Rail, 100A, 120mm Fan, ATX PSU, Black
LN153353
No customer review£179.99Due 15th Jun
1200W Lian Li EDGE GOLD, Fully Modular, 80 PLUS Gold, Single Rail, 100A, 120mm Fan, ATX PSU, White
LN153354
No customer review
1000W EDGE GOLD 80 PLUS Gold Fully Modular PSU & 9-Pin Internal USB/4-Pin PWM Fan Hub from Lian-Li
GOLD CLASS INNOVATIONThe Lian Li EDGE GOLD PSU is more than just a power source; it's the gleaming cornerstone of your build, designed to shine and streamline. With its striking L-shape, this PSU is tailor-made for dual-chamber systems like the LIAN LI O11 series, elevating both form and function. A level above the regular EDGE Series, these PSUs contain mounting points for the incredibly innovative USB & PWM Fan Hub, giving you the option to link up and explore internal Lian-Li accessories such as the UNI Fans and STRIMER controllers without worrying about risking I/O panel functionality or messy cable routing. Fully compliant with the ATX 3.0 and 3.1 specifications, the EDGE GOLD PSU is future-ready, accommodating the latest high-performance motherboards and components. This adherence to evolving standards ensures it remains a robust solution for cutting-edge builds, and an excellent turning point for making the Lian Li ecosystem more approachable than ever.
1000Watts
83.3Amps
ATX 3.1Form Factor
NOTE: The images below are used for illustration purposes. Refer to the top image for the correct product colour.
An Extra Step Up

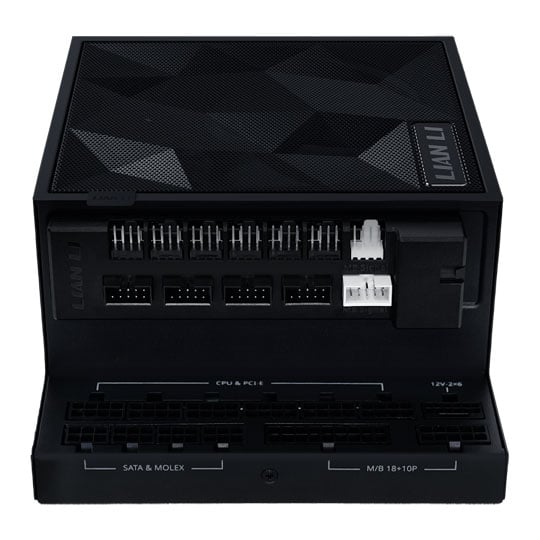

L-SHaped designEngineered specifically for dual-chamber chassis, the EDGE PSU’s L-shape design is ideal for vertical installation at the second chamber. This unique form factor reorients the connectors outward, allowing you to tame cables much easier. The PSU also features a raised connector which allows you to link up your Lian-Li ecosystem with an included EDGE GOLD USB Fan Hub.
Included USB & Fan Hub
OPTION 1 - Direct AttachmentThe hub attaches directly to the upright connector on the raised section of an EDGE or EDGE GOLD PSU. This method eliminates the need for additional mounting hardware and keeps cabling to a minimum. By drawing power straight from the PSU, the hub delivers reliable operation while maintaining a neat and cohesive setup within the case.
OPTION 2 - Free AttachmentFor greater flexibility, the hub can be detached and mounted elsewhere in the case using its magnetic backing. Once positioned, it draws power via the included PCIe 8-pin connector, operating independently of the PSU’s upright connector. This approach supports custom layouts and is ideal for managing devices or components that benefit from close proximity to the hub.
Innovative, Excellent Design
1. PWM Fan SectionThe top half of the accessory features six extended 4-pin PWM fan connectors, each capable of supporting up to 2A, to suit the demand of multi-fan configurations. This makes it a game-changer for cooling arrangements.
2. USB SectionThe other half The hub supports four internal 9-pin USB ports, totalling up to eight downstream connections. These are perfect for RGB controllers and USB devices, with a combined output of 2.5A.
3. Direct EDGE ConnectorUpright connector which clicks straight onto an EDGE or EDGE GOLD PSU.
4. Magnetic Back PanelAllows for easy placement and accessibility from within your chassis.
5. Independant PCIe ConnectionIf you've gone for the magnetic option, connect to the hub via PCIe 8-Pin.
Your Routing, Your Rules
9-PIN USB CONNECTORSThe hub provides two versatile options for connecting to the motherboard’s USB signal, making it adaptable to different setups. It includes a 9-pin internal USB to 9-pin internal USB cable for a direct internal connection, though this may affect the availability of some USB ports on the motherboard’s rear I/O panel. Alternatively, a 9-pin USB to USB 2.0 Type-A cable is included, allowing you to route the connection externally through the case’s ventilation grates to the rear I/O panel, preserving all internal USB functionality.
1x Internal 9-Pin USB to Internal 9-Pin USB
1x Internal 9-Pin USB to USB 2.0 Type-A
Extensive Efficiency
GOLDEN GREATNESSAchieving the 80 PLUS and PPLP Gold certifications, in addition to Cybenetics Platinum, the EDGE GOLD Series ensures top-tier energy efficiency, reducing power consumption and heat output while delivering reliable, stable performance.
80PLUS GOLDThis certification guarantees that a PSU operates with at least 87% energy efficiency at 20%, 50%, and 100% loads, helping reduce wasted energy and lower electricity bills.
Cybenetics PlatinumCybenetics rates PSUs based on their efficiency, noise output, and build quality, offering a more comprehensive understanding of a PSU’s real-world performance.
PPLP GoldPLP certification ensures that a PSU can handle varying loads without voltage drops or instability, guaranteeing reliable power delivery under different usage conditions.
Dual Colour PCIe 5.1 Connector
1Dual-colour shell ensures a firm, clear connection for easy installation.
2Gold plating added to prevent any risk of short circuits, keeping things safe.
3Soldered wire and terminal connections ensure stable current flow.
4Increased copper thickness (0.25mm) lowers contact resistance for better efficiency.
custom designed 12vhpwrLIAN LI’s in-house R&D developed 12V-2×6 alloy copper soldered terminals for secure and efficient power delivery, enhancing system stability and performance. The terminal maintain a contact resistance below 1.5mΩ after 50 plug/pull cycles, compared to ordinary terminals at 2-3mΩ, enhancing the connector’s performance and long-term reliability.
Cool & Controlled
Springing into actionThanks to the 0dB technology, the PSU fan stays on standby during low loads, ensuring silent operation. Once the load hits around 390W, the fan activates to maintain cooling efficiency. This gradual increase in fan speed helps balance performance and noise, ensuring that cooling is only used when necessary, while keeping noise levels minimal during lighter use.
120mm PWM Fan The EDGE GOLD PSU features a 0dB 120mm PWM fan located behind a magnetic mesh dust filter at the top of the unit. This fan operates in silent mode until it’s needed, ensuring minimal noise during lighter loads. The magnetic mesh dust filter is easy to remove, making regular cleaning straightforward to maintain optimal performance. With a high porosity of 66.9%, the mesh allows for excellent airflow while keeping noise to a minimum.
Industrial Grade Capacitors
GERMAN EPCOS CAPACITORSThe EDGE GOLD line also integrate German EPCOS capacitors, offering compact, robust performance with higher tolerance to temperature and harsh environments. Featuring LLC topology and Active PFC, the EDGE series enhances efficiency, reduces heat generation, and ensures cleaner, more reliable power delivery.
SATA Synergy
Extended SATA SolutionsThe EDGE GOLD PSU series goes beyond the standard SATA connectivity by incorporating Y-type and close-type connectors, in addition to the usual options. The Y-type connectors are ideal for powering multiple devices from a single cable, reducing clutter and helping maintain a clean build. The close-type connectors are designed for more compact setups, providing a tidy cable management solution when storage drives are placed near one another. These cables are also longer than those found in the previous EDGE series, giving users more flexibility when arranging components and improving overall airflow.
CLOSE-TYPE SATAA long cable with 15mm spacing between power connectors, making it easy to attach devices while maintaining a tidy setup.
Y-TYPE SATAPerfect for connecting drives and controllers located in different areas, providing flexibility and reducing cable clutter.
Always Reliable
Where structure meets promiseEngineered with premium materials, the EDGE GOLD series delivers not just power, but unwavering reliability built for the long haul. Designed to endure, this PSU and its included USB & PWM Fan hub redefines expectations with a blend of performance and durability. Both products are backed by world-class warranty which ensure you can get cabling without breaking a sweat.
POWER SUPPLY WARRANTY10 Year Warranty for EDGE GOLD Power Supply
USB/FAN HUB WARRANTY2 Year Warranty for 9-Pin USB / 4-Pin PWM Hub
