Scan code: LN65078 Manufacturer code: CP-9020081-UK

Corsair 650 Watt RM650i Fully Modular ATX PSU/Power Supply

650W Corsair RMi Series RM650i, 80PLUS Gold, Full Modular, SLI/CrossFire, Single Rail, 54A +12V, 1x135mm Fan, ATX PSU

MORE INFO
MORE INFO
Thumbnail 1 : Corsair 650 Watt RM650i Fully Modular ATX PSU/Power Supply Thumbnail 2 : Corsair 650 Watt RM650i Fully Modular ATX PSU/Power Supply Thumbnail 3 : Corsair 650 Watt RM650i Fully Modular ATX PSU/Power Supply Thumbnail 4 : Corsair 650 Watt RM650i Fully Modular ATX PSU/Power Supply Corsair 650 Watt RM650i Fully Modular ATX PSU/Power Supply : video thumbnail 1
Scan code: LN65078 Manufacturer code: CP-9020081-UK
3xs Approved
£144.98Item due on 11 June 2020
Pre Order
Due 11th Jun
From £13.02 / month (APR 14.9%)
Monthly Payment: £25.16
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £144.98
Total inc. interest: £150.95
Monthly Payment: £13.02
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £144.98
Total inc. interest: £156.18
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

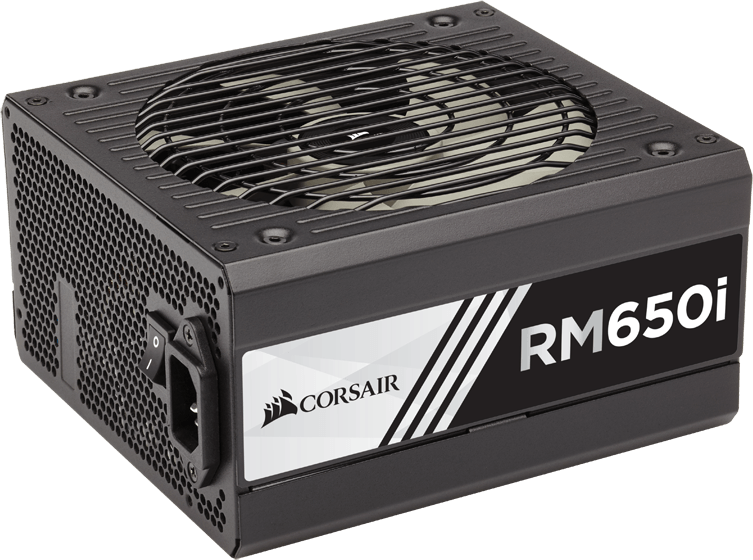

RM650i - Corsair Power Supply - Fully Modular ATX PSU

Corsair RM650i Power Supply 80PLUS - Gold

Corsair RMi 650W Power Supply

This version of the RMi Series power supplies from corsair comes with a total power output of 650W. The RM650i gives you extremely tight voltage control with near quiet operation. The 80PLUS GOLD rating on this PSU reduces operating costs and excess heat. It also features a fully modular cable set, these DC cables makes building and upgrading your PC easier and leaves it looking great. The Zero RPM fan mode ensures virtual silence at low and medium loads. The RMi Series also features the Corsair Link Digital which makes it extremely easy to monitor the power supplies performance along with toggling single rail or multi rail modes, or controling fan speed directly from your desktop.

View other RMi power outputs:
RM750i - RM850i - RM1000i

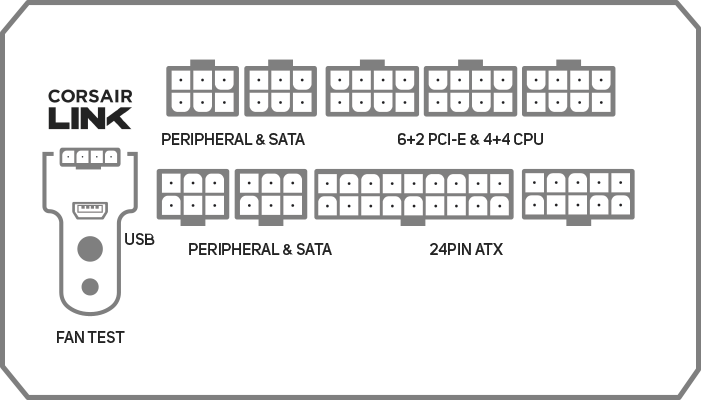

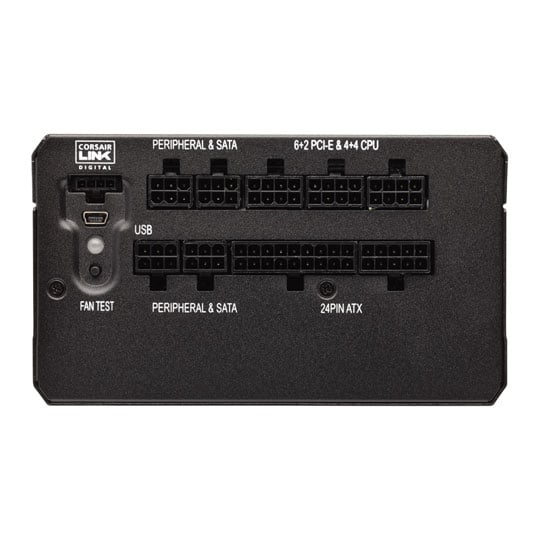

Fully Modular Connectivity

Connections

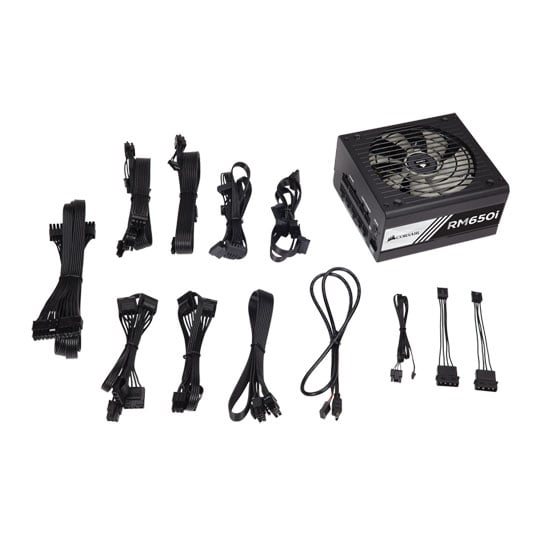

RMi Fully Modular Cable Design

The fully modular design of the RMi power supply means that during your build you can mount the PSU in the case first and then attatch only the cables you need, making builds and upgrades easy with great looking results. In addition the advanced desktop app lets you monitor and log fan speed, voltages and power consumption, as well as control and configure +12V rail operation.

RM650i Efficiency & Noise Graphs

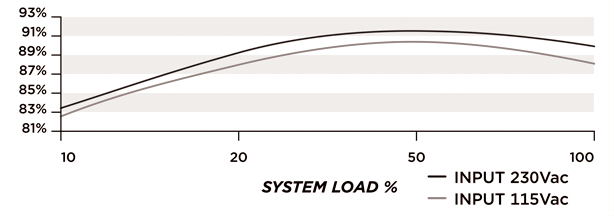

RM650i EFFICIENCY

Efficiency Graph

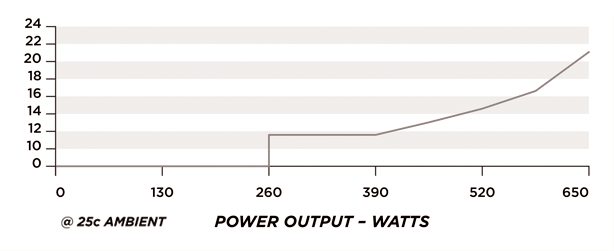

RM650i FAN NOISE

Noise Graph

Corsair RM650i Output Power Chart

CORSAIR RM650i DC OUTPUT - SINGLE +12V RAIL MODE
DC Output +3.3V +5V +12V -12V +5Vsb
Max Load 25A 25A 54A 0.8A 3A
Maximum Combined Wattage 130W 648W 9.6W 15W
Total Power: 650W
CORSAIR RM650i DC OUTPUT - MULTIPLE +12V RAIL MODE
DC Output +3.3V +5V +12V1 +12V2 -12V3 +12V4 +12V5 +12V6 +12V7 -12V8 +12V +5VSB
Max Load 25A 25A 40A 40A 40A 40A 40A 40A 40A 40A 0.8A 3A
Maximum Combined 130W 648W 9.6W 15W
Total Power: 650W

Corsair RM650i Key Features

80PLUS - Gold

80 PLUS Gold CertifiedGold certification ensures high efficiency operation for less excess heat and lower operating costs.

Japanese Capacitors

Japanese 105°C capacitorsPremium internal components ensure solid power delivery and long term reliability.

Zero Fan Mode

Zero RPM Fan ModeFan doesn’t turn on until it’s needed, so you’ll enjoy virtually silent operation at low and medium loads.

Single or Multiple Rails

Configurable +12V RailIt’s your choice – run it in the default multi-rail +12V mode, or toggle single-rail operation.

Specifications
Size ATX
Edition RMi Series RM650i
Wattage 650 W
80 PLUS Certification 80 PLUS Gold
Max. Efficiency (at 230Vac) 91 %
Cooling Fan
Fans 1 x 135mm
Internal +12V Rails Single Rail
Rail 1 +12V 54 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 54 A
Modular Yes
Modularity Full Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 1 x 4+4-pin CPU +12V (EPS)
  • 2 x 4-pin FDD Power
  • 7 x 4-pin Molex
  • 4 x 6+2-pin PCIe
  • 8 x SATA
Dimensions 150 x 86 x 160 mm (WxHxD)
Package Type
Additional Information
Scan Code LN65078
Model Number CP-9020081-UK
GTIN 843591045537
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
120 months
Type:
Return to base
RTB Period:
120 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Loading Please Wait

Please wait . . .

TekSpek Guides
Power Supply units
Power Supply units
Date Issued: 28th Apr 2020

Power-supply units, or PSUs, are an integral part of any computer build. Often overlooked, it is the component that is likely to last the longest, and it can be moved between systems when you upgrade to the latest and greatest in the future.

Read More

Reviews
Questions & Answers

Regarding ports

There are two pictures showing this product with a different number of ports, which is correct?
Asked by: SamM
Hello, The correct image is the one with the 2 rows on the back, thank you for pointing this out to us we will update this asap. Thanks,
Answered by: LizN
Date published: 2015-11-08
