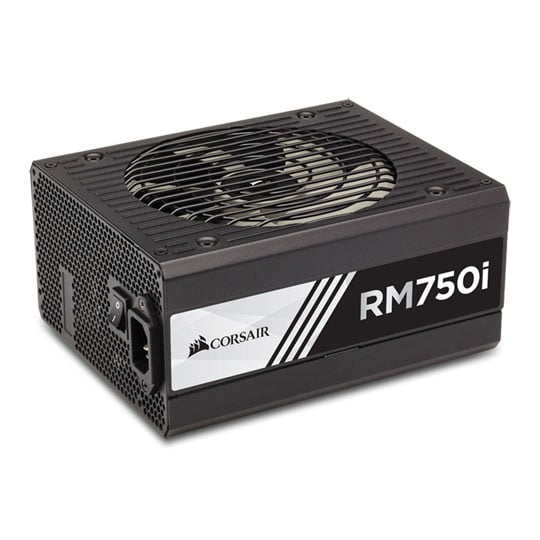

Corsair RMi Series 750W Fully Modular Power Supply

750W Corsair RM750i Series Fully Modular PSU, 80PLUS Gold Certified, 135mm Fan, ATX

Corsair
Scan code: LN65077 Manufacturer code: CP-9020082-UK Request call
£117.98Item due on 03 November 2017
Pre order
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More

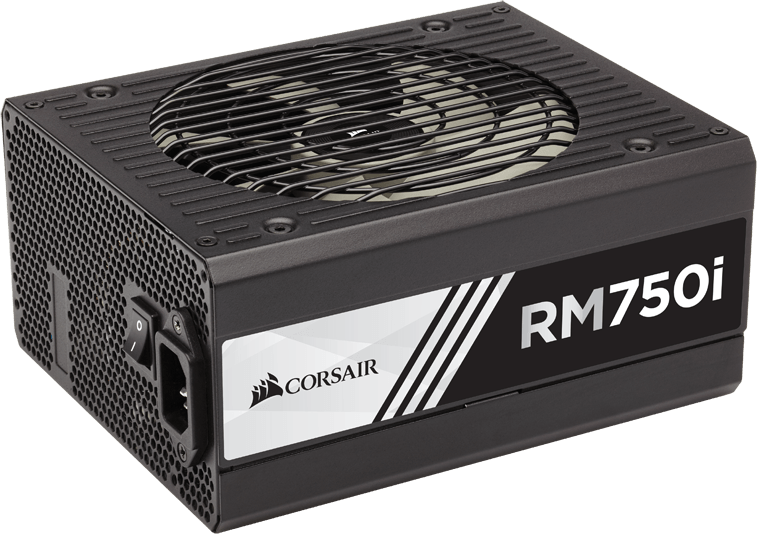

RM750i - Corsair Power Supply - Fully Modular ATX PSU

Corsair RM750i Power Supply 80PLUS - Gold

Corsair RMi 750W Power Supply

This version of the RMi Series power supplies from corsair comes with a total power output of 750W. The RM750i gives you extremely tight voltage control with near quiet operation. The 80PLUS GOLD rating on this PSU reduces operating costs and excess heat. It also features a fully modular cable set, these DC cables makes building and upgrading your PC easier and leaves it looking great. The Zero RPM fan mode ensures virtual silence at low and medium loads. The RMi Series also features the Corsair Link Digital which makes it extremely easy to monitor the power supplies performance along with toggling single rail or multi rail modes, or controling fan speed directly from your desktop.

View other RMi power outputs:
RM650i - RM850i - RM1000i

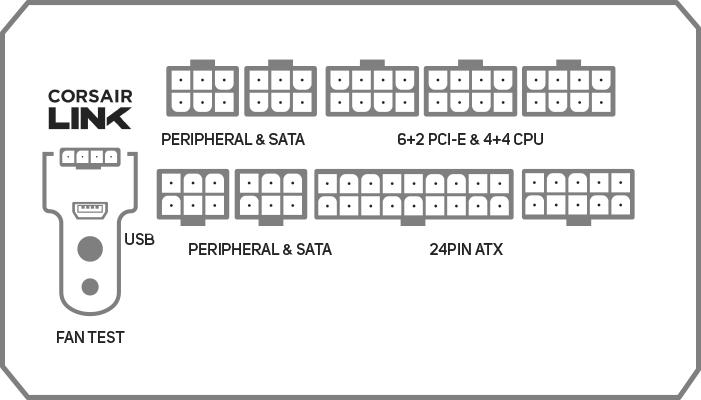

Fully Modular Connectivity

Connections

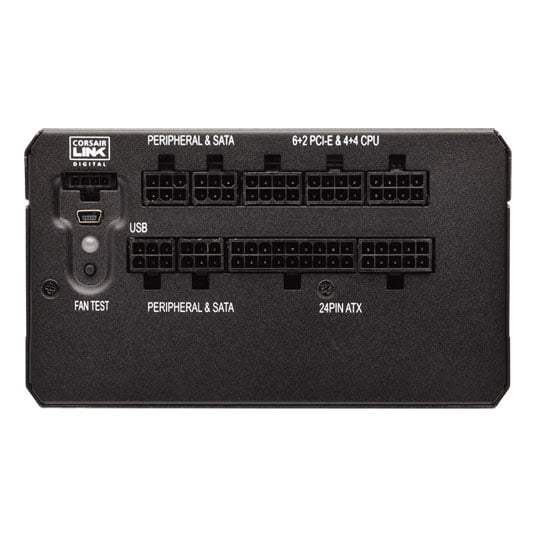

RMi Fully Modular Cable Design

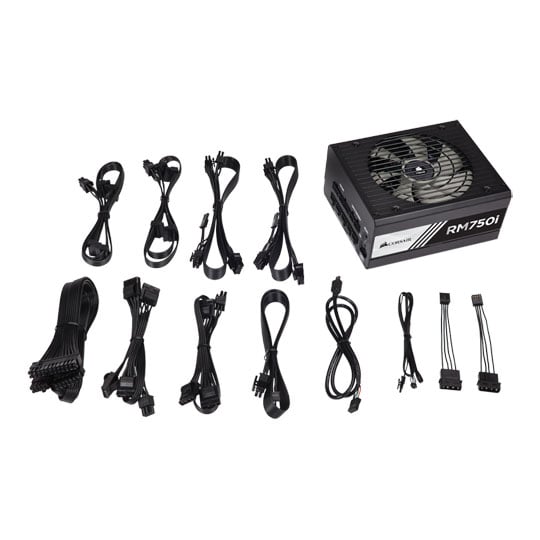

The fully modular design of the RMi power supply means that during your build you can mount the PSU in the case first and then attatch only the cables you need, making builds and upgrades easy with great looking results. In addition the advanced desktop app lets you monitor and log fan speed, voltages and power consumption, as well as control and configure +12V rail operation.

RM750i Efficiency & Noise Graphs

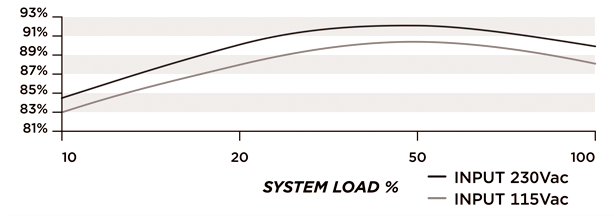

RM750i EFFICIENCY

Efficiency Graph

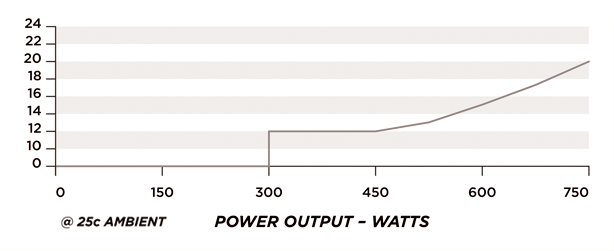

RM750i FAN NOISE

Noise Graph

Corsair RM750i Output Power Chart

CORSAIR RM750i DC OUTPUT - SINGLE +12V RAIL MODE
DC Output +3.3V +5V +12V -12V +5Vsb
Max Load 25A 25A 62.5A 0.8A 3A
Maximum Combined Wattage 150W 750W 9.6W 15W
Total Power: 750W
CORSAIR RM750i DC OUTPUT - MULTIPLE +12V RAIL MODE
DC Output +3.3V +5V +12V1 +12V2 -12V3 +12V4 +12V5 +12V6 +12V7 -12V8 +12V +5VSB
Max Load 25A 25A 40A 40A 40A 40A 40A 40A 40A 40A 0.8A 3A
Maximum Combined 150W 750W 9.6W 15W
Total Power: 750W

Corsair RM750i Key Features

80PLUS - Gold

80 PLUS Gold CertifiedGold certification ensures high efficiency operation for less excess heat and lower operating costs.

Japanese Capacitors

Japanese 105°C capacitorsPremium internal components ensure solid power delivery and long term reliability.

Zero Fan Mode

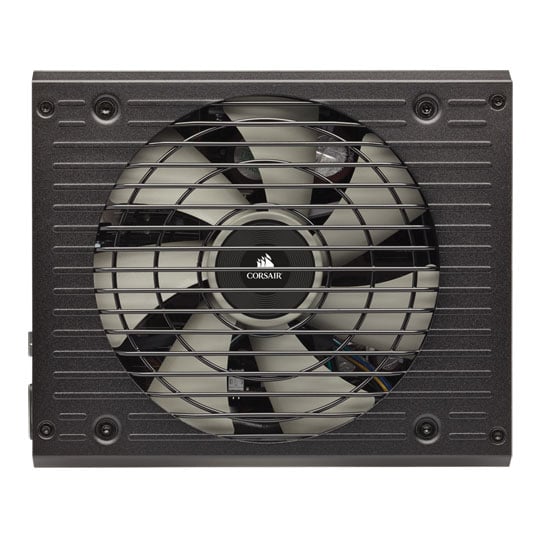

Zero RPM Fan ModeFan doesn’t turn on until it’s needed, so you’ll enjoy virtually silent operation at low and medium loads.

Single or Multiple Rails

Configurable +12V RailIt’s your choice – run it in the default multi-rail +12V mode, or toggle single-rail operation.

Specifications
Size ATX
Edition RM750i
Wattage 750 W
80 PLUS Certification 80 PLUS Gold
Max. Efficiency 92 %
Cooling Fan
Fans 1 x 135mm
Internal +12V Rails Single Rail
Rail 1 +12V 62.5 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 62.5 A
Modular Yes
Modularity Full Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 1 x 4+4-pin CPU +12V (EPS)
  • 7 x 4-pin Molex
  • 4 x 6+2-pin PCIe
  • 2 x FDD Power
  • 8 x SATA
Dimensions 150 x 86 x 180 mm (WxHxD)
Package Type
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
120 months
Type:
Return to base
RTB Period:
120 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Customers also bought
Reviews
750W Corsair RM750i Series Fully Modular PSU, 80PLUS Gold Certified, 135mm Fan, ATX is rated 5.0 out of 5 by 5.
Rated 5 out of 5 by from Well Made and Quiet in use! I bought this to replace a faulty unit previously installed. It comes well packed, and with a good selection of cables (more than I needed!). Because it is modular, it makes for a clean layout as only cables required are installed. Once powered up, the first thing that struck me was how quiet it is in use. The other positive which drew me to this power supply was the warranty period, although I doubt I will need it.
Date published: 2016-06-05
Rated 5 out of 5 by from Superb Great power supply. Extremely quiet even when powering i7 6700k and single 980Ti and Kraken x41. Highly recommended and more than enough power if you're not using multiple pumps and SLI 980Ti / Titan.
Date published: 2016-04-22
Rated 5 out of 5 by from Great Power Supply Extremely efficient and very quite. Most of the time the fan is not even spinning. Very happy with this Power supply. Also included more than enough cables for my needs.
Date published: 2016-04-15
Rated 5 out of 5 by from Nice PSU with some good feature, but a pit pricy Comes with Corsair Link which allows PSU temperature and fan speed to be monitored using free Corsair Link software. Fan only comes on when needed. Very quiet.
Date published: 2015-10-15
Rated 5 out of 5 by from Quiet yet Powerful After hearing lots of good reviews about this product. I had to buy it i did own a couple of other Corsair CX Series PSU's which were no so bad but had terrible coil whine. So decided to pay a bit more and get the RMI 750i from Corsair and now im glad i did. No more coil whine so silent. Does get a bit warm though but the fan doesn't spin has it has that Zero fan less mode. all my games run perfect no stutter didn't know how much it made the difference just by getting a better power supply fast delivery excellent service as always. Can't recommend this enough guys its awesome a must have for every pc build.
Date published: 2015-07-21
