Corsair RMi Series 850W Fully Modular Power Supply
850W Corsair RM850i, Full Modular, 80 PLUS Gold, SLI/CrossFire, Single/Multi Rail, 70.8A, 135mm Fan, ATX PSU
RM850i - Corsair Power Supply - Fully Modular ATX PSU
Corsair RMi 850W Power Supply
This version of the RMi Series power supplies from corsair comes with a total power output of 850W. The RM850i gives you extremely tight voltage control with near quiet operation. The 80PLUS GOLD rating on this PSU reduces operating costs and excess heat. It also features a fully modular cable set, these DC cables makes building and upgrading your PC easier and leaves it looking great. The Zero RPM fan mode ensures virtual silence at low and medium loads. The RMi Series also features the Corsair Link Digital which makes it extremely easy to monitor the power supplies performance along with toggling single rail or multi rail modes, or controling fan speed directly from your desktop.
View other RMi power outputs:
RM650i - RM750i - RM1000i

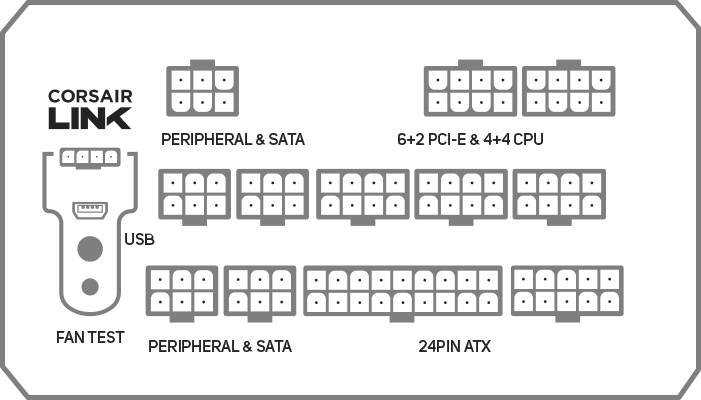

Fully Modular Connectivity
RMi Fully Modular Cable Design
The fully modular design of the RMi power supply means that during your build you can mount the PSU in the case first and then attatch only the cables you need, making builds and upgrades easy with great looking results. The addition the advanced desktop app lets you monitor and log fan speed, voltages and power consumption, as well as control and configure +12V rail operation.

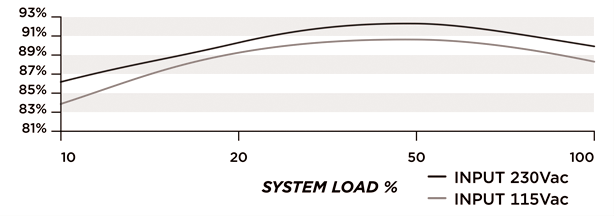

RM850i Efficiency & Noise Graphs

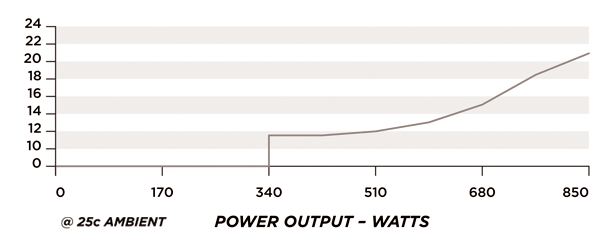

RM850i FAN NOISE
Corsair RM850i Output Power Chart
|CORSAIR RM850i DC OUTPUT - SINGLE +12V RAIL MODE|
|Maximum Combined Wattage||150W||850W||9.6W||15W|
|Total Power: 850W|
|CORSAIR RM850i DC OUTPUT - MULTIPLE +12V RAIL MODE|
|Total Power: 850W|
Corsair RM850i Key Features
80 PLUS Gold CertifiedGold certification ensures high efficiency operation for less excess heat and lower operating costs.
Japanese 105°C capacitorsPremium internal components ensure solid power delivery and long term reliability.
Zero RPM Fan ModeFan doesn’t turn on until it’s needed, so you’ll enjoy virtually silent operation at low and medium loads.
Configurable +12V RailIt’s your choice – run it in the default multi-rail +12V mode, or toggle single-rail operation.
|80 PLUS Certification||80 PLUS Gold|
|Max. Efficiency||92 %|
|Fans||1 x 135mm|
|Internal +12V Rails||Single/Multi Rail|
|Rail 1 +12V||70.8 A|
|Rail 2 +12V||N/A|
|Rail 3 +12V||N/A|
|Rail 4 +12V||N/A|
|Rail 5 +12V||N/A|
|Rail 6 +12V||N/A|
|Max. Combined Output +12V||70.8 A|
|Dimensions||150 x 86 x 180 mm (WxHxD)|
