Scan code: LN115289 Manufacturer code: CP-9020103-UK/RF

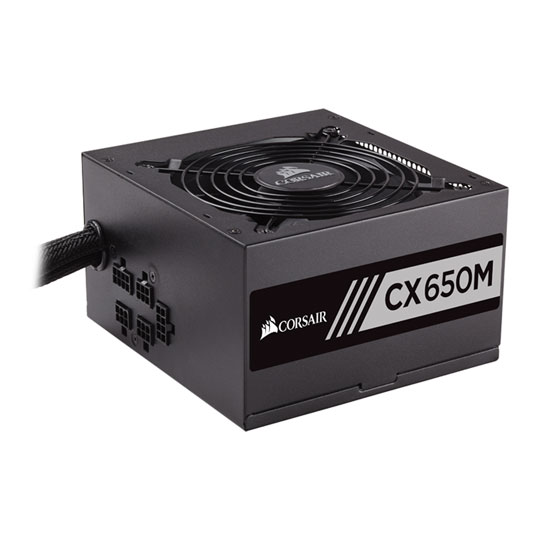

Corsair 650 Watt CX650M Semi Modular PSU/Power Supply, Factory Refurbished

650W Corsair CX650M, 80PLUS Bronze, Hybrid Modular, Single Rail, 54A +12V, 1x120mm Fan, ATX PSU, Refurbished

Thumbnail 1 : Corsair 650 Watt CX650M Semi Modular PSU/Power Supply, Factory Refurbished Thumbnail 2 : Corsair 650 Watt CX650M Semi Modular PSU/Power Supply, Factory Refurbished Thumbnail 3 : Corsair 650 Watt CX650M Semi Modular PSU/Power Supply, Factory Refurbished Thumbnail 4 : Corsair 650 Watt CX650M Semi Modular PSU/Power Supply, Factory Refurbished
Scan code: LN115289 Manufacturer code: CP-9020103-UK/RF
Order now and get it tomorrow, Thu 7th Jul
£49.99
Get it Tomorrow, 07 JulIn stock
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 7th Jul to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Refurbished CX650M - Corsair Power Supply - Hybrid Modular ATX PSU

Corsair CX650M Power Supply 80PLUS - Bronze

Corsair CXM 650W Power Supply

The CX650M is an excellent mid-level PSU for use in basic system builds and desktop PC computer uprades. The CXM Series is available in a variety of power configurations allowing you to power more components if needed. The matt black finish, black sleeved cables and black connectors give the CX650M a high-tech look. The clever thermally controlled fan design allows for little or no detectable fan noise during normal use, this gives an 80PLUS BRONZE certified efficiency rating. This CX650M has been tested to strict Corsair standards for a trouble-free installation.

View other CXM Series power supplies:
CX450 - CX550

Hybrid Modular Connectivity

Connections

Modular Cabling System

On the CX650M PSU the peripheral power cables aren’t hard-wired to the power supply, you can connect only the cables you need for your exact configuration of PCI-E cards and storage devices. The rest of the cables stay in the box, and not in your PC’s case where they can add to the clutter and interfere with airflow.

Corsair CX650M Output Power Chart

Corsair CX650M ATX Power Supply
AC Input Rating DC Output Rating
AC Input: 100V - 240V DC Output +3.3V +5V +12V -12V +5Vsb
Current: 13A - 6.5A Max Load 25A 25A 54A 0.8A 3A
Frequency: 47Hz - 63Hz Maximum Combined Wattage 130W 648W 9.6W 15W
  Total Power: 650W
Specifications
Size ATX
Edition CX650M
Wattage 650 W
80 PLUS Certification 80 PLUS Bronze
Max. Efficiency (at 230Vac) 85 %
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 54 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 54 A
Modular Yes
Modularity Hybrid Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 1 x 4+4-pin CPU +12V (EPS)
  • 1 x 4-pin FDD Power
  • 3 x 4-pin Molex
  • 4 x 6+2-pin PCIe
  • 6 x SATA
Dimensions 150 x 86 x 140 mm (WxHxD)
Package Type Refurbished
Additional Information
Scan Code LN115289
Model Number CP-9020103-UK/RF
GTIN 0843591058131
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
01204 474747
