Scan code: LN70154 Manufacturer code: CP-9020101-UK

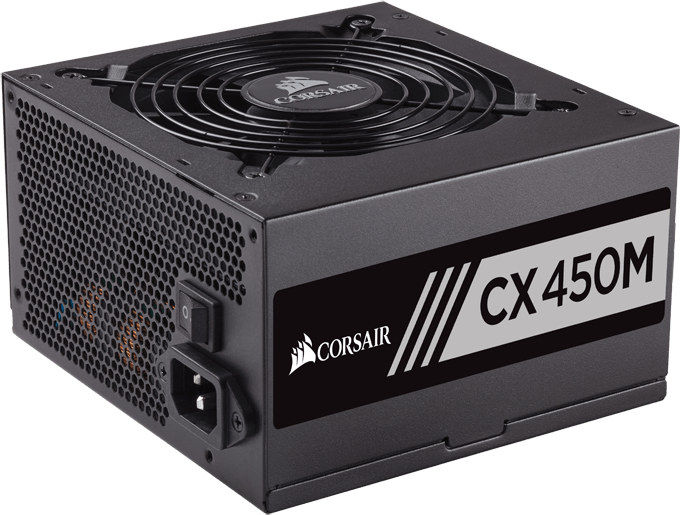

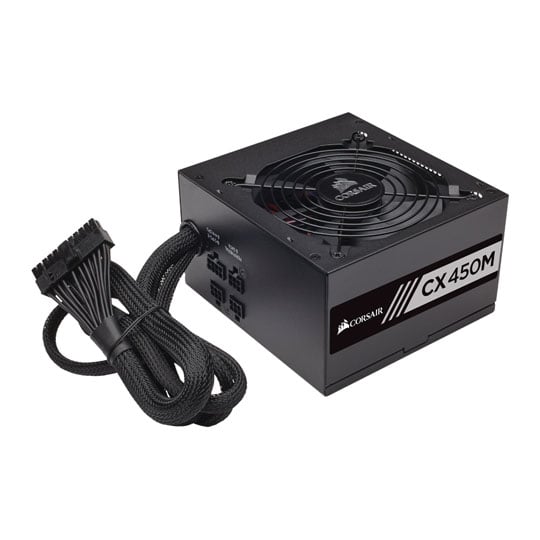

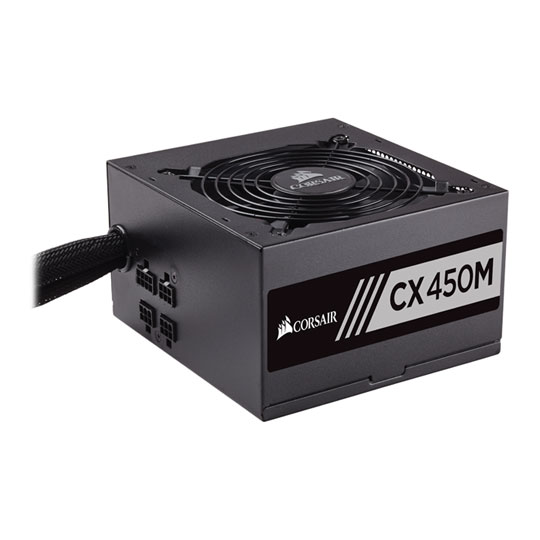

Corsair 450 Watt CX450M Semi Modular PSU/Power Supply

450W Corsair CX450M, 80PLUS Bronze, Hybrid Modular, SLI/CrossFire, Single Rail, 37.4A +12V, 1x120mm Fan, ATX PSU

MORE INFO
MORE INFO
Thumbnail 1 : Corsair 450 Watt CX450M Semi Modular PSU/Power Supply Thumbnail 2 : Corsair 450 Watt CX450M Semi Modular PSU/Power Supply Thumbnail 3 : Corsair 450 Watt CX450M Semi Modular PSU/Power Supply Thumbnail 4 : Corsair 450 Watt CX450M Semi Modular PSU/Power Supply
Scan code: LN70154 Manufacturer code: CP-9020101-UK
£54.98
Add To Basket
In stock
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 22nd May 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

CX450M - Corsair Power Supply - Hybrid Modular ATX PSU

Corsair CX450M Power Supply 80PLUS - Bronze

Corsair CXM 450W Power Supply

The CX450M is an excellent mid-level PSU for use in basic system builds and desktop PC computer uprades. The CXM Series is available in a variety of power configurations allowing you to power more components if needed. The matt black finish, black sleeved cables and black connectors give the CX450M a high-tech look. The clever thermally controlled fan design allows for little or no detectable fan noise during normal use, this gives an 80PLUS BRONZE certified efficiency rating. This CX450M has been tested to strict Corsair standards for a trouble-free installation.

View other CXM Series power supplies:
CX550 - CX650

Hybrid Modular Connectivity

Connections

Modular Cabling System

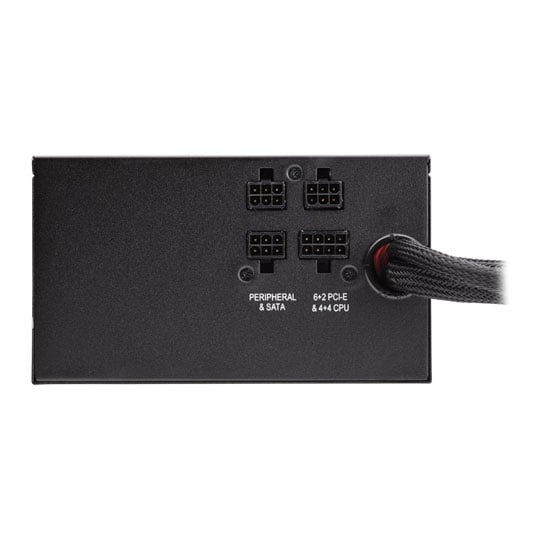

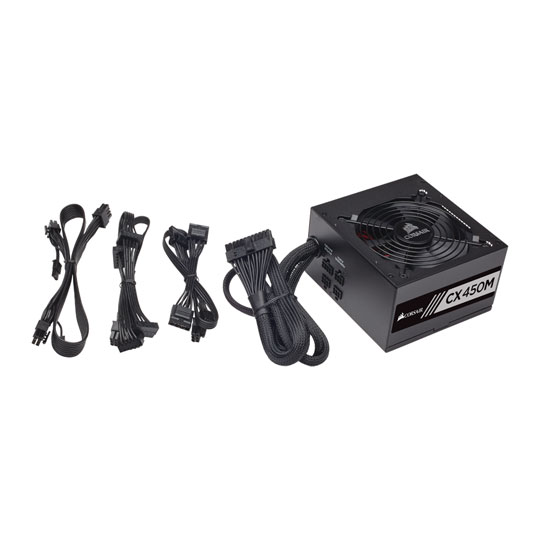

On the CX450M PSU the peripheral power cables aren’t hard-wired to the power supply, you can connect only the cables you need for your exact configuration of PCI-E cards and storage devices. The rest of the cables stay in the box, and not in your PC’s case where they can add to the clutter and interfere with airflow.

Corsair CX450M Output Power Chart

Corsair CX450M ATX Power Supply
AC Input Rating DC Output Rating
AC Input: 100V - 240V DC Output +3.3V +5V +12V -12V +5Vsb
Current: 13A - 6.5A Max Load 25A 25A 37.4A 0.8A 3A
Frequency: 47Hz - 63Hz Maximum Combined Wattage 110W 448.8W 9.6W 15W
  Total Power: 450W
Specifications
Size ATX
Edition CX450M
Wattage 450 W
80 PLUS Certification 80 PLUS Bronze
Max. Efficiency (at 230Vac) 85 %
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 37.4 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 37.4 A
Modular Yes
Modularity Hybrid Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 1 x 4+4-pin CPU +12V (EPS)
  • 1 x 4-pin FDD Power
  • 3 x 4-pin Molex
  • 2 x 6+2-pin PCIe
  • 4 x SATA
Dimensions
Package Type
Additional Information
Scan Code LN70154
Model Number CP-9020101-UK
GTIN 843591057974
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
60 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Loading Please Wait

Please wait . . .

Reviews
450W Corsair CX450M, 80PLUS Bronze, Hybrid Modular, SLI/CrossFire, Single Rail, 37.4A +12V, 1x120mm Fan, ATX PSU is rated 5.0 out of 5 by 2.
Rated 5 out of 5 by from Great quality PSU for the price-point Really good quality for the cost. Runs nice and quietly, is modular so you don't have messy cables, and for a cheap gaming PC is all you need. If you're considering similar products that aren't Corsair, I would suggest buying this one instead. It might be 10-20 quid more expensive, but you don't want to skimp on your PSU. This one will stand the test of time and Corsair are a fantastic brand.
Date published: 2019-01-27
Rated 5 out of 5 by from Performs very well This psu fits the bill on my middle-range pc. It is quiet and installing is made easy by the semi-modular cabling.
Date published: 2017-12-08
