Corsair 550 Watt CX550M Semi Modular PSU/Power Supply
550W Corsair CX550M, 80 PLUS Bronze, Hybrid Modular, SLI/CrossFire, Single Rail, 45.8A +12V, 1x120mm Fan, ATX PSU
By DPD On 22nd Oct 2019
to your specified address. |
Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery windowWeekend, timed and European delivery options are available at checkout
Collect from our Bolton store, BL6 6PE |
Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store |
Collect your parcel from your newsagents, petrol stations and convenience stores
Protect against installation damage for 28 days.
ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.
Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info
CX550M - Corsair Power Supply - Hybrid Modular ATX PSU
Corsair CXM 550W Power Supply
The CX550M is an excellent mid-level PSU for use in basic system builds and desktop PC computer uprades. The CXM Series is available in a variety of power configurations allowing you to power more components if needed. The matt black finish, black sleeved cables and black connectors give the CX450M a high-tech look. The clever thermally controlled fan design allows for little or no detectable fan noise during normal use, this gives an 80PLUS BRONZE certified efficiency rating. This CX450M has been tested to strict Corsair standards for a trouble-free installation.
View other CXM Series power supplies:
CX450 - CX650
Hybrid Modular Connectivity
Modular Cabling System

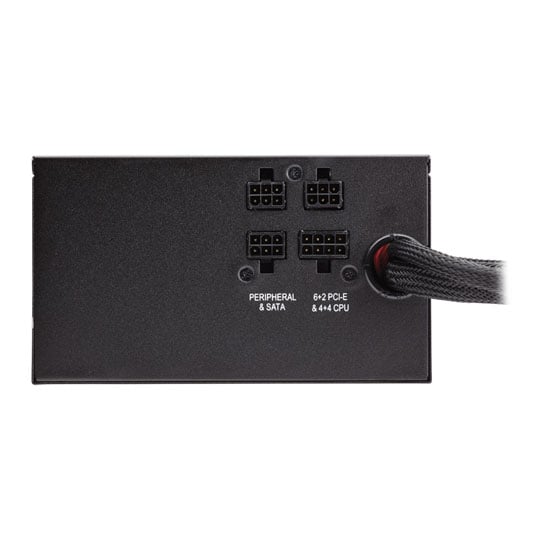

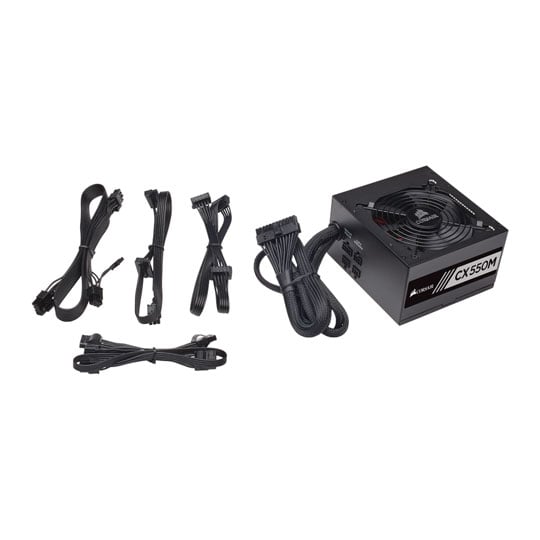

On the CX550M PSU the peripheral power cables aren’t hard-wired to the power supply, you can connect only the cables you need for your exact configuration of PCI-E cards and storage devices. The rest of the cables stay in the box, and not in your PC’s case where they can add to the clutter and interfere with airflow.
Corsair CX550M Output Power Chart
|Corsair CX550M ATX Power Supply|
|AC Input Rating||DC Output Rating|
|AC Input: 100V - 240V||DC Output||+3.3V||+5V||+12V||-12V||+5Vsb|
|Current: 13A - 6.5A||Max Load||25A||25A||45.8A||0.8A||3A|
|Frequency: 47Hz - 63Hz||Maximum Combined Wattage||120W||550W||9.6W||15W|
|Total Power: 550W|
|80 PLUS Certification||80 PLUS Bronze|
|Max. Efficiency (at 230Vac)||85 %|
|Fans||1 x 120mm|
|Internal +12V Rails||Single Rail|
|Rail 1 +12V||45.8 A|
|Rail 2 +12V||N/A|
|Rail 3 +12V||N/A|
|Rail 4 +12V||N/A|
|Rail 5 +12V||N/A|
|Rail 6 +12V||N/A|
|Max. Combined Output +12V||45.8 A|
|Dimensions||150 x 86 x 140 mm (WxHxD)|
Please note your statutory rights are not affected.
For further information regarding Scan's warranty procedure please see our terms and conditions
- 60 months
- Return to base
- DOA Period:
- 28 days
- RTB Period:
- 60 months
- 0871 472 4747
Date Issued: 25th Oct 2017
Power-supply units, or PSUs, are an integral part of any computer build. Often overlooked, it is the component that is likely to last the longest, and it can be moved between systems when you upgrade to the latest and greatest in the future.
