Corsair 650 Watt CX650M Semi Modular PSU/Power Supply

650W Corsair CX650M, 80 PLUS Bronze, Hybrid Modular, SLI/CrossFire, Single Rail, 54A +12V, 1x120mm Fan, ATX PSU

Corsair
Scan code: LN70155 Manufacturer code: CP-9020103-UK Request call
£70.49
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD On 15th Dec 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together

CX650M - Corsair Power Supply - Hybrid Modular ATX PSU

Corsair CX650M Power Supply 80PLUS - Bronze

Corsair CXM 650W Power Supply

The CX650M is an excellent mid-level PSU for use in basic system builds and desktop PC computer uprades. The CXM Series is available in a variety of power configurations allowing you to power more components if needed. The matt black finish, black sleeved cables and black connectors give the CX650M a high-tech look. The clever thermally controlled fan design allows for little or no detectable fan noise during normal use, this gives an 80PLUS BRONZE certified efficiency rating. This CX650M has been tested to strict Corsair standards for a trouble-free installation.

View other CXM Series power supplies:
CX450 - CX550

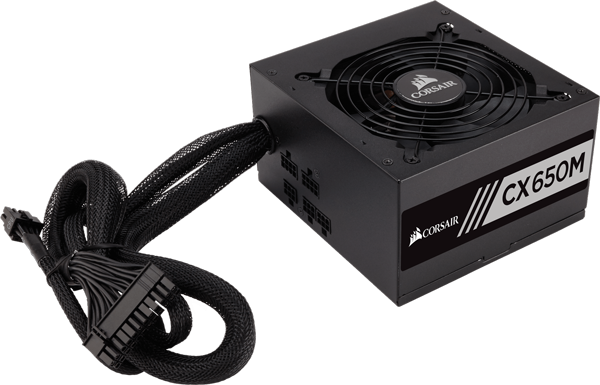

Hybrid Modular Connectivity

Connections

Modular Cabling System

On the CX650M PSU the peripheral power cables aren’t hard-wired to the power supply, you can connect only the cables you need for your exact configuration of PCI-E cards and storage devices. The rest of the cables stay in the box, and not in your PC’s case where they can add to the clutter and interfere with airflow.

Corsair CX650M Output Power Chart

Corsair CX650M ATX Power Supply
AC Input Rating DC Output Rating
AC Input: 100V - 240V DC Output +3.3V +5V +12V -12V +5Vsb
Current: 13A - 6.5A Max Load 25A 25A 54A 0.8A 3A
Frequency: 47Hz - 63Hz Maximum Combined Wattage 130W 648W 9.6W 15W
  Total Power: 650W
Specifications
Size ATX
Edition CX650M
Wattage 650 W
80 PLUS Certification 80 PLUS Bronze
Max. Efficiency 85 %
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 54 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 54 A
Modular Yes
Modularity Hybrid Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 1 x 4+4-pin CPU +12V (EPS)
  • 3 x 4-pin Molex
  • 4 x 6+2-pin PCIe
  • 1 x FDD Power
  • 6 x SATA
Dimensions
Package Type
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
60 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747
Customers also bought
Reviews
650W Corsair CX650M, 80 PLUS Bronze, Hybrid Modular, SLI/CrossFire, Single Rail, 54A +12V, 1x120mm Fan, ATX PSU is rated 1.0 out of 5 by 1.
Rated 1 out of 5 by from worst corsair PSU made THIS IS NOT MOAN AT SCAN, scan have been very good and helpful towards me in the past. I Built a rig for a friend. We upgraded his system as he was using a cheap cit PSU 500w which ran his GTX 1070 perfectly. We upgraded his PSU to the CX650M, we booted up his rig ran some games fine but as soon as he clicked bf1 campaign it died. We replaced it thinking it might of been bad luck, installed the new CX650M clicked bf1 - died. I tested it with my power meter at the socket in my test rig with SLI 1080s using a 550w superflower power supply, the gpus at idle 98w, under load on bf1 campaign it peaked with a spike a little when clicking the campaign, then leveled out at 350w and it ran fine the system combined was 515W with 2 1080FE. For an advertised PSU from Corsair that's 650w, cant even handle 300-350w max or a slight spike from bf1 is absolutely disgusting quality, i know over the years the quality has dropped massively from CORSAIR but this level is a new one on me. I have a AX760W spare and in my main rig i have a AX1200W and loved them both, I used to be a fan of the old Corsair PSU's having had a AX760,860 and a TX750M and a AX1200w but this display is shocking. We have now bought the EVGA power supply from SCAN and it runs his system perfectly fine with his i5 and gtx 1070. SAVE your self the pain and hassle and AVOID this like the plague.
Date published: 2017-02-07
  • y_2017, m_12, d_12, h_18
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_1
  • loc_en_GB, sid_70155, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

Do corsair PSU's come with a kettle lead?

I haven't built a computer before and so this may seem like a really stupid question but does a power supply come with a lead to the mains or do I need to buy me own? I am interested in buying a: 650W Corsair CX650M, 80 PLUS Bronze, Hybrid Modular, SLI/CrossFire, Single Rail, 54A +12V, 1x120mm Fan, ATX PSU
Asked by: rasberybun
Yes they do come with a kettle lead, but don't buy this power supply it is of poor quality after having recently installed 2 for some one who wanted me to build his PC (he had already bought it), look at EVGAs and Seasonic, the higher end Corsair units are better but the mid range are of poor quality, hope this helps you
Answered by: TackleTart
Date published: 2017-04-23
