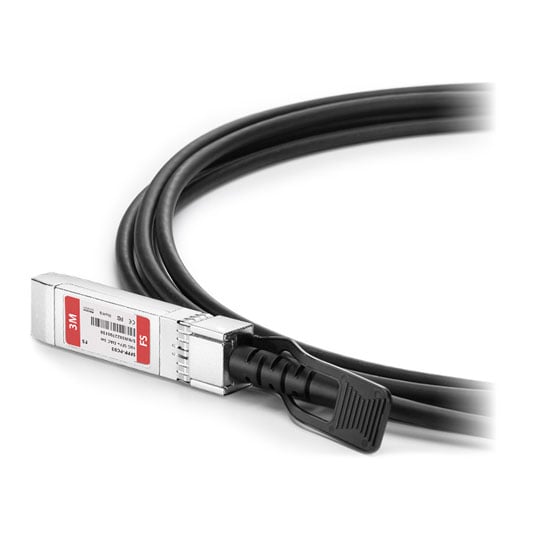

FS 5m (10ft) 10G SFP+ Passive Direct Attach Copper Twinax Cable
FS 5m (10ft) SFP+ to SPF+ Passive Direct Attach Copper Twinax PVC Cable, 10 Gigabit, Black
- SCANPROTECT Protect against installation damage for 28 days. More info
5m 10G SFP+ to SFP+ Passive DAC Twinax Cable
The 10G SFP+ Passive Direct Attach Copper Twinax Cable offers cost-effective connectivity for establishing a 10-Gigabit, short-distance connection within a rack or between adjacent racks in data centres. Passive Direct Attach Cables are an ideal 10GBASE Ethernet option for solutions that require reliability, low latency, and practically no power consumption. This cable provides low insertion loss and ultra-low crosstalk, whilst being cheaper and more durable than comparable optical fibre options. It also complies with IEEE 802.3, SFF-8431 and hot-pluggable QSFP28 MSA standard ensuring the reliability of your network with full system testing in targeted switches.
Low Cost for Ultra-Short Connections
The DAC cables use twinax copper to transmit data, equivalent to one optical fibre and two optical modules, significantly reducing the overall cost compared to connecting actual optical fibres.
Tested in Host Devices for Proven Interoperability
Every unit is quality tested for compatibility in the targeted switch environment, which guarantees flawless operations.
Enable Seamless Connectivity for Your Network
FS offers the ability to configure the pre-set compatibility of either connector of the DAC cable online with FS BOX to connect Cisco to Arista, Dell to Juniper and various other combinations of configurations.
Superior Reliability and Durability
DAC cables designed with high-shielding PVC jackets are less susceptible to dust and environmental disturbances, improving stability and lifetime.
Easy Plug-and-Play
DAC cables comply with the standard SFP+ MSA and offer hot-pluggable functionality with no electronics or optical connectors for increased uptime and better serviceability.
• SFP-H10GB-CU5M compatibility.
• Shielding: Braid/Foil.
• Durability: 50 Cycles.
• Outer Diameter: 6.0mm.
• Jacket Material: PVC.
• Plug Retention Force: 90N Max.
• Flammability Rating: UL 94 V-0.
• Support for multi-gigabit data rates up to 10Gbps.
• 850nm VCSEL transmitter, PIN photo-detector receiver, up to 300m on OM3 MMF.
• Compatible to SFP+ MSA.
