Scan code: LN149284 Manufacturer code: 35194

FS 3m (10ft) 10G SFP+ Passive Direct Attach Copper Twinax Cable

FS 3m (10ft) SFP+ to SPF+ Passive Direct Attach Copper Twinax PVC Cable, 10 Gigabit, Black

Thumbnail 1 : FS 3m (10ft) 10G SFP+ Passive Direct Attach Copper Twinax Cable Thumbnail 2 : FS 3m (10ft) 10G SFP+ Passive Direct Attach Copper Twinax Cable Thumbnail 3 : FS 3m (10ft) 10G SFP+ Passive Direct Attach Copper Twinax Cable
Scan code: LN149284 Manufacturer code: 35194
£21.98Item currently awaiting an ETA
Pre order
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

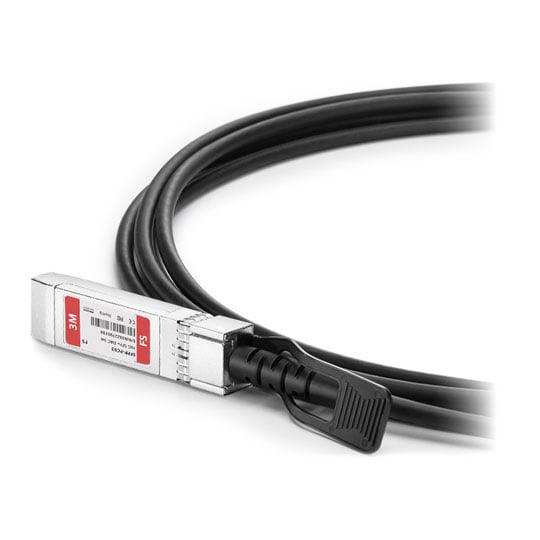

3m 10G SFP+ to SFP+ Passive DAC Twinax Cable

The 10G SFP+ Passive Direct Attach Copper Twinax Cable offers cost-effective connectivity for establishing a 10-Gigabit, short-distance connection within a rack or between adjacent racks in data centres. Passive Direct Attach Cables are an ideal 10GBASE Ethernet option for solutions that require reliability, low latency, and practically no power consumption. This cable provides low insertion loss and ultra-low crosstalk, whilst being cheaper and more durable than comparable optical fibre options. It also complies with IEEE 802.3, SFF-8431 and hot-pluggable QSFP28 MSA standard ensuring the reliability of your network with full system testing in targeted switches.


Low Cost for Ultra-Short Connections

The DAC cables use twinax copper to transmit data, equivalent to one optical fibre and two optical modules, significantly reducing the overall cost compared to connecting actual optical fibres.


Tested in Host Devices for Proven Interoperability

Every unit is quality tested for compatibility in the targeted switch environment, which guarantees flawless operations.


Enable Seamless Connectivity for Your Network

FS offers the ability to configure the pre-set compatibility of either connector of the DAC cable online with FS BOX to connect Cisco to Arista, Dell to Juniper and various other combinations of configurations.


Superior Reliability and Durability

DAC cables designed with high-shielding PVC jackets are less susceptible to dust and environmental disturbances, improving stability and lifetime.


Easy Plug-and-Play

DAC cables comply with the standard SFP+ MSA and offer hot-pluggable functionality with no electronics or optical connectors for increased uptime and better serviceability.

Features

• SFP-H10GB-CU3m compatibility.
• Shielding: Braid/Foil.
• Durability: 50 Cycles.
• Outer Diameter: 4.2mm.
• Jacket Material: PVC.
• Plug Retention Force: 90N Max.
• Flammability Rating: UL 94 V-0.
• Support for multi-gigabit data rates up to 10Gbps.
• 850nm VCSEL transmitter, PIN photo-detector receiver, up to 300m on OM3 MMF.
• Compatible to SFP+ MSA.

Specifications
Length 3 m
Type Direct Attach Copper Twinax Cable
Specification
Connector From SFP+ (Male)
Connector To SFP+ (Male)
Connector Features
  • Gold-Plated
  • Passive Copper Cables
Cable Features
  • 30AWG
  • PVC Jacket
Colour Black
Total Weight
Additional Information
Scan Code LN149284
Model Number 35194
