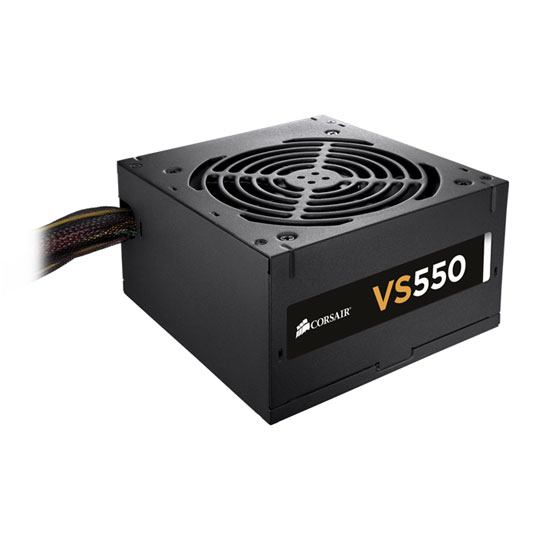

Corsair 550 Watt VS550 ATX PSU/Power Supply Unit Black

550W Corsair VS550, Fully Wired, 80 PLUS White, SLI/CrossFire, Single Rail, 42A, 120mm Fan, ATX PSU

Corsair
Scan code: LN62781 Manufacturer code: CP-9020097-UK Request call
£41.99
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
3xs Approved High End

There are 6 people viewing this product

Delivery options £5.48 By DPD On 24th Jan 2018 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together

VS550 - Corsair Power Supply - Fully Wired ATX PSU

Corsair VS550 Power Supply 80PLUS - Platinum

Corsair VS 550W Power Supply

This VS series power supply has 550W of guaranteed power and is perfect for home or office system build. The VS550 offers up to 85% efficiency allowing you to enjoy lower energy bills. The built in 120mm fan is thermally controlled, so only spinning when its pushed hard. The black powder coated enclosure allows the power supply to go well in any system case.

View other VS power outputs:
VS350 - VS450 - VS650

Fully Wired Connectivity

Connections

VS Fully Wired Cable Design

The fully wired cable setup on the VS550 is designed to make it extremely simple to install. The black-sleeved cables give the PSU the ability to give any system the high-tech feel.

VS550 Efficiency & Noise Graphs

VS550 EFFICIENCY

Efficiency Graph

VS550 FAN NOISE

Noise Graph

Corsair VS550 Output Power Chart

Corsair VS550 Fully Wired Power Supply
AC Input Rating DC Output Rating
AC Input: 200V - 240V DC Output +3.3V +5V +12V -12V +5Vsb
Current: 5A Max Load 18A 18A 42A 0.3A 2.5A
Frequency: 47Hz - 63Hz Maximum Combined Wattage 110W 504W 3.6W 12.5W
  Total Power: 550W
Specifications
Size ATX
Edition VS550
Wattage 550 W
80 PLUS Certification 80 PLUS White
Max. Efficiency 85 %
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 42 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 42 A
Modular No
Modularity Fully Wired
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 1 x 4+4-pin CPU +12V (EPS)
  • 4 x 4-pin Molex
  • 2 x 6+2-pin PCIe
  • 1 x FDD Power
  • 3 x SATA
Dimensions 150 x 86 x 140 mm (WxHxD)
Package Type Retail
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
SCAN
Telephone:
0871 472 4747
Customers also bought
TekSpek Guides
Power Supplies
Power Supplies
Date Issued: 25th Oct 2017

Power-supply units, or PSUs, are an integral part of any computer build. Often overlooked, it is the component that is likely to last the longest, and it can be moved between systems when you upgrade to the latest and greatest in the future.

Read More

Reviews
550W Corsair VS550, Fully Wired, 80 PLUS White, SLI/CrossFire, Single Rail, 42A, 120mm Fan, ATX PSU is rated 4.8 out of 5 by 11.
Rated 5 out of 5 by from Quiet fan My main requirement was to easily replace my failing ATX PSU with a reliable PSU with quiet fan. The leads were long enough (a worry for me) especially the CPU 12v lead, and in operation the fan is barely audible - my primary worry was not to have a noisy fan. Very pleased and fully recommend.
Date published: 2017-10-04
Rated 5 out of 5 by from A great reliable power supply I purchased this PSU to replace an identical unit killed by water damage. This PSU is dependable and lasted me for years. Great quality at a great price.
Date published: 2017-09-03
Rated 5 out of 5 by from High Wuality, Low Price. The PSU is the place where you definitely do not want to skimp and take a gamble. With the risk of destroying all the other components in your PC you really need to lean on the side of caution. This is why I always go with a brand I recognise, be it Corsair or EVGA. This 550W Corsair VS series PSU combines both the reliable Corsair quality with an affordable price. The unit itself will easily power most low to mid range machines. I personally just installed one in a £500 machine with an AMD FX 6300 and a GTX 660 and it handles the power with no problem whatsoever. The fan is practically silent and every connector you expect to be there is to be found on this unit. The only minor problem I ran into with this unit was the stiffness of the cables, mean that if you are using a tight case, you may find things a little extra fiddly. The SATA connectors are spaced quite far apart and so if you are stacking optical drives, hard drives and other SATA power users together, it's not going to be too aesthetically pleasing. The wired cables include: 24-Pin ATX 8-Pin EPS/ATX12V (Aux CPU socket cable, splits into 2x 4-pin) 2x 8-Pin PCI-E (can be split from 8-pin to 6-Pin) 4x SATA 4x Molex 2x Floppy
Date published: 2017-08-10
Rated 5 out of 5 by from Never had a Corsair fail. Been using these in my builds for years, never had one fail yet. But got through plenty cheap brand ones,for people who want cheap!
Date published: 2017-04-07
Rated 4 out of 5 by from Shocking Packaging This item arrived in good time, and with the assistance of YouTube I managed to get it all connected and working well. After the inital boot it's quietly running in the background, the fans running are hardly noticable. I was somewhat surprised and suspicious about the packaging though. It came in a plain white box with a Samsung label for a different item altogether! and inside bubble wrapped with ScanUK tape was the product. I had expected the Corsiar VS550 to arrive in its own packaging with specs and warantee etc! Saying that, the product looked very new so I did install it as I had paid for the cover. After an online chat with ScanUK I was assured that the guarantee would be honoured.
Date published: 2016-11-24
Rated 5 out of 5 by from Fixed my problem! I bought this PSU because my computer was acting quite oddly and it was either the CPU or PSU. Basically, the computer (the case) was getting extremely hot and eventually freezing or resetting. My guess was the PSU has it seemed the case was getting the heat from it. Well, I bought this new PSU and the problems have gone away! Thanks Scan!
Date published: 2016-08-02
Rated 5 out of 5 by from Just as expected Nice and quiet psu arrived on time and well packed loads of connectors.
Date published: 2016-07-28
Rated 5 out of 5 by from Does exactly as it says Needed a replacement quick, ordered one it arrived quickly and it's q good quality. Can power any normal desktop fine
Date published: 2016-01-30
  • y_2018, m_1, d_22, h_5
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.6
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_11
  • loc_en_GB, sid_62781, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

80 plus white ??

What do you mean by 80 plus white, I know 80 plus, bronze, silver gold etc, but can't find what you mean by white ? is this just marketing ..
Asked by: drjohnsmith
White is just what Corsair calls their standard 80+ range. White (Standard units for basic everyday machines) Bronze (Improved quality for more intense use) Silver (Decent quality units for gaming machines) Gold (Good quality units for intense gaming) Platinum (Best quality for Overclocking, SLI and Watercooling) Titanium (Specialist. Multiple redundancies, used for overkill) As you would imagine, the further down the list the higher the quality, the more expensive, the longer the lifespan, the better the redundancy and the more stability when pushing your components to their limits.
Answered by: Mankey
Date published: 2017-10-14
