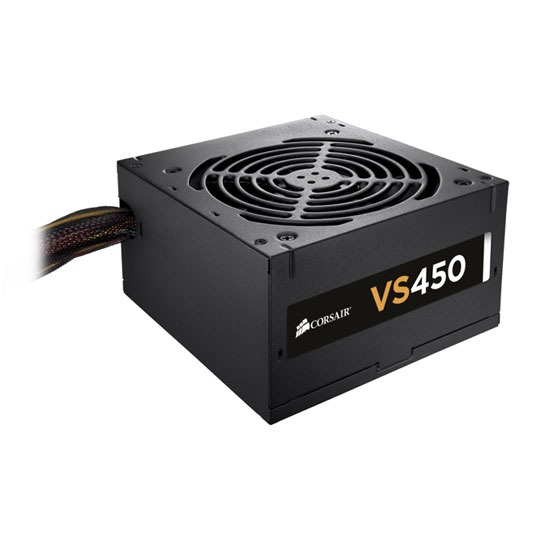

Corsair VS450 450 Watt ATX PSU/Power Supply Unit

450W Corsair VS450, Fully Wired, 80 PLUS White, SLI/CrossFire, Single Rail, 34A, 120mm Fan, ATX PSU

Scan code: LN65546 Manufacturer code: CP-9020096-UK Request call
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD On 26th Mar 2018 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together

VS450 - Corsair Power Supply - Fully Wired ATX PSU

Corsair VS450 Power Supply 80PLUS - Platinum

Corsair VS 450W Power Supply

This VS series power supply has 450W of guaranteed power and is perfect for home or office system build. The VS450 offers up to 85% efficiency allowing you to enjoy lower energy bills. The built in 120mm fan is thermally controlled, so only spinning when its pushed hard. The black powder coated enclosure allows the power supply to go well in any system case.

View other VS power outputs:
VS350 - VS550 - VS650

Fully Wired Connectivity


VS Fully Wired Cable Design

The fully wired cable setup on the VS450 is designed to make it extremely simple to install. The black-sleeved cables give the PSU the ability to give any system the high-tech feel.

VS450 Efficiency & Noise Graphs


Efficiency Graph


Noise Graph

Corsair VS450 Output Power Chart

Corsair VS450 Fully Wired Power Supply
AC Input Rating DC Output Rating
AC Input: 200V - 240V DC Output +3.3V +5V +12V -12V +5Vsb
Current: 5A Max Load 16A 16A 34A 0.3A 2.5A
Frequency: 47Hz - 63Hz Maximum Combined Wattage 100W 408W 3.6W 12.5W
  Total Power: 450W
Size ATX
Edition VS450
Wattage 450 W
80 PLUS Certification 80 PLUS White
Max. Efficiency 85 %
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 34 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 34 A
Modular No
Modularity Fully Wired
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4-pin
  • 1 x 4+4-pin CPU +12V (EPS)
  • 4 x 4-pin Molex
  • 2 x 6+2-pin PCIe
  • 1 x FDD Power
  • 3 x SATA
Dimensions 150 x 86 x 140 mm (WxHxD)
Package Type Retail

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

36 months
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
0871 472 4747
Customers also bought
450W Corsair VS450, Fully Wired, 80 PLUS White, SLI/CrossFire, Single Rail, 34A, 120mm Fan, ATX PSU is rated 3.5 out of 5 by 4.
Rated 1 out of 5 by from DO not buy this I've had 3 in a row make horrible rattles and noises only yo be told there is no common faults with these. The quality is very poor.
Date published: 2017-05-09
Rated 5 out of 5 by from Quiet PSU I barely hear it, this is just awesome use it from a month and I don't have any probs with it!
Date published: 2016-05-12
Rated 3 out of 5 by from Cheap, but pretty much a gamble If you go online you will see a lot of negative reviews towards VS series PSU's, i bought this PSU like 3 weeks ago and it already started to make weird noises, horrible and extremely loud, pretty much a faulty fan if you ask me. The only positive thing about it is that it runs cool.
Date published: 2015-12-04
Rated 5 out of 5 by from Quality, basic PSU The PSU feels well built, is quiet and runs my system well. I wanted a quality, but basic PSU for a spare system and this fits the bill.
Date published: 2015-07-23
  • y_2018, m_3, d_21, h_23
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.7
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_4
  • loc_en_GB, sid_65546, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

can the extra 4 pins be detached so that it will fit on a 20 pin board??

i have a 20 pin motherboard with a broken power supply and im looking for a new one
Asked by: Skillfire666
Hello, Yes you can detach 4 pins. Thanks,
Answered by: LizN
Date published: 2015-11-22
  • y_2018, m_3, d_21, h_23CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.7
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_1
  • loc_en_GB, sid_65546, prod, sort_[SortEntry(order=LOCALE, direction=DESCENDING), SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_scan
