CX550 - Corsair Power Supply - Fully Wired ATX PSU

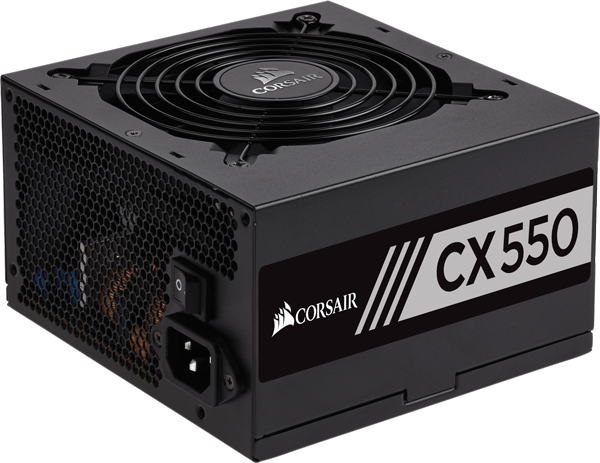

Corsair CX 550W Power Supply
The CX Series power supply from Corsair is a great entry level PSU and is an excellent choice for basic system builds and desktop PC computer upgrades. CX Series PSUs are available in a variety of power configurations, and include features that are normally found only on premium power supplies. The matt black finish, black sleeved cables and black connectors give the CX550 a high-tech look. The clever thermally controlled 120mm fan design allows for little or no detectable fan noise during normal use, this gives an 80PLUS BRONZE certified efficiency rating. This CX550 has been tested to strict Corsair standards for a trouble-free installation.
View other CX Series power supplies:
CX450 - CX650 - CX750

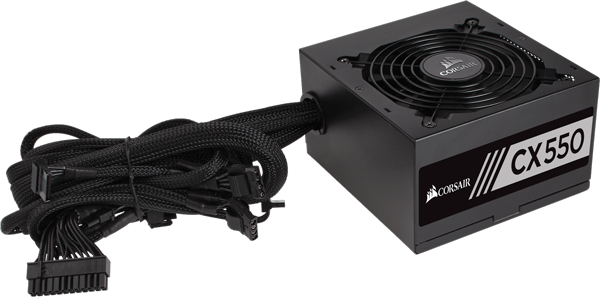

Fully Wired Connectivity
Ample Connectors & long cables
The CX550 has long cables making the CX Series suitable for installation in many cases even in full-height tower cases, and the generous cable count allows you to power multiple components and storage devices.

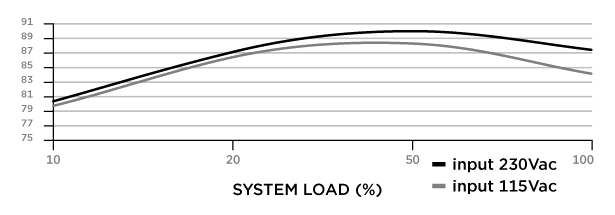

CX550 Efficiency & Noise Graphs

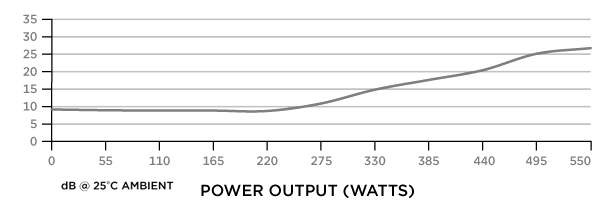

CX550 FAN NOISE
Corsair CX550 Output Power Chart
|Corsair CX550 ATX Power Supply|
|AC Input Rating||DC Output Rating|
|AC Input: 100V - 240V||DC Output||+3.3V||+5V||+12V||-12V||+5Vsb|
|Current: 13A - 6.5A||Max Load||25A||25A||45.8A||0.8A||3A|
|Frequency: 47Hz - 63Hz||Maximum Combined Wattage||120W||549.6W||9.6W||15W|
|Total Power: 550W|
|80 PLUS Certification||80 PLUS Bronze|
|Max. Efficiency (at 230Vac)||90 %|
|Fans||1 x 120mm|
|Internal +12V Rails||Single Rail|
|Rail 1 +12V||45.8 A|
|Rail 2 +12V||N/A|
|Rail 3 +12V||N/A|
|Rail 4 +12V||N/A|
|Rail 5 +12V||N/A|
|Rail 6 +12V||N/A|
|Max. Combined Output +12V||45.8 A|
|Dimensions||150 x 86 x 140 (WxHxD)|
