Corsair 750W CX750 Bronze ATX Power Supply/PSU

750W Corsair CX Series CX750, 80PLUS Bronze, Fully Wired, Single Rail, 62.5A +12V, 140mm Fan, ATX PSU

Corsair
Scan code: LN79166 Manufacturer code: CP-9020123-UK Request call
£79.99
Low stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End

There are 6 people viewing this product

Delivery options £5.48 By DPD On 25th Sep 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together

CX750 - Corsair Power Supply - Fully Wired ATX PSU

Corsair CX750 Power Supply 80PLUS - Bronze

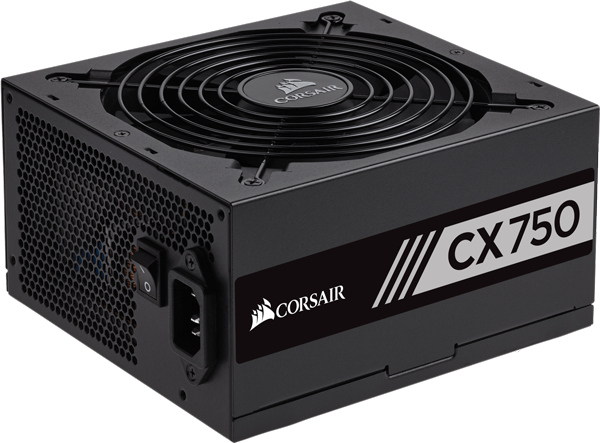

Corsair CX 750W Power Supply

The CX Series power supply from Corsair is a great entry level PSU and is an excellent choice for basic system builds and desktop PC computer upgrades. CX Series PSUs are available in a variety of power configurations, and include features that are normally found only on premium power supplies. The matt black finish, black sleeved cables and black connectors give the CX750 a high-tech look. The clever thermally controlled 120mm fan design allows for little or no detectable fan noise during normal use, this gives an 80PLUS BRONZE certified efficiency rating. This CX750 has been tested to strict Corsair standards for a trouble-free installation.

View other CX Series power supplies:
CX450 - CX550 - CX650

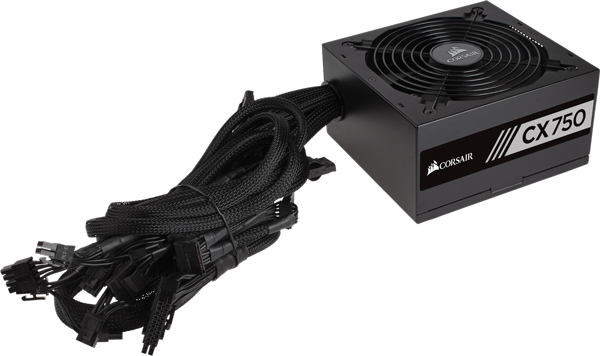

Fully Wired Connectivity

Connections

Ample Connectors & long cables

The CX750 has long cables making the CX Series suitable for installation in many cases even in full-height tower cases, and the generous cable count allows you to power multiple components and storage devices.

CX750 Efficiency & Noise Graphs

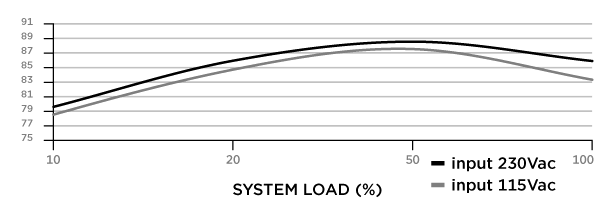

CX750 EFFICIENCY

Efficiency Graph

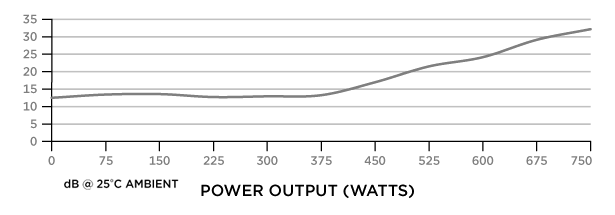

CX750 FAN NOISE

Noise Graph

Corsair CX750 Output Power Chart

Corsair CX750 ATX Power Supply
AC Input Rating DC Output Rating
AC Input: 100V - 240V DC Output +3.3V +5V +12V -12V +5Vsb
Current: 13A - 6.5A Max Load 25A 25A 62.5A 0.8A 3A
Frequency: 47Hz - 63Hz Maximum Combined Wattage 130W 750W 9.6W 15W
  Total Power: 750W
Specifications
Size ATX
Edition CX750
Wattage 750 W
80 PLUS Certification 80 PLUS Bronze
Max. Efficiency 85 %
Cooling Fan
Fans 1 x 140mm
Internal +12V Rails Single Rail
Rail 1 +12V 62.5 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 62.5 A
Modular No
Modularity Fully Wired
SLI/CrossFire No
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 1 x 4+4-pin CPU +12V (EPS)
  • 4 x 4-pin Molex
  • 2 x 6-pin PCIe
  • 1 x FDD Power
  • 4 x SATA
Dimensions 150 x 86 x 140 (WxHxD)
Package Type Retail
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
60 months
