Corsair 650W CX650 Bronze ATX Power Supply/PSU
End Of Life
Corsair 650W CX650 Bronze ATX Power Supply/PSU
Scan code: LN79165 Manufacturer code: CP-9020122-UK
End Of Life
  • Thumbnail 1 : Corsair 650W CX650 Bronze ATX Power Supply/PSU
  • Corsair 650W CX650 Bronze ATX Power Supply/PSU : video thumbnail 1
End Of Life

Corsair 650W CX650 Bronze ATX Power Supply/PSU

650W Corsair CX Series CX650, 80PLUS Bronze, Fully Wired, Single Rail, 54A +12V, 120mm Fan, ATX PSU
MORE INFO
MORE INFO

Scan code: LN79165 Manufacturer code: CP-9020122-UK
End of life
This product is no longer available to purchase.

Email me when the availability or price changes

  • SCANPROTECT Protect against installation damage for 28 days.
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.

CX650 - Corsair Power Supply - Fully Wired ATX PSU

Corsair CX650 Power Supply 80PLUS - Bronze

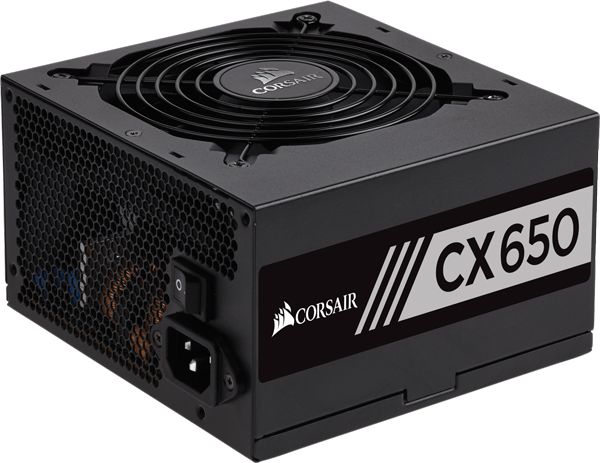

Corsair CX 650W Power Supply

The CX Series power supply from Corsair is a great entry level PSU and is an excellent choice for basic system builds and desktop PC computer upgrades. CX Series PSUs are available in a variety of power configurations, and include features that are normally found only on premium power supplies. The matt black finish, black sleeved cables and black connectors give the CX650 a high-tech look. The clever thermally controlled 120mm fan design allows for little or no detectable fan noise during normal use, this gives an 80PLUS BRONZE certified efficiency rating. This CX650 has been tested to strict Corsair standards for a trouble-free installation.

View other CX Series power supplies:
CX450 - CX550 - CX750

Fully Wired Connectivity

Connections

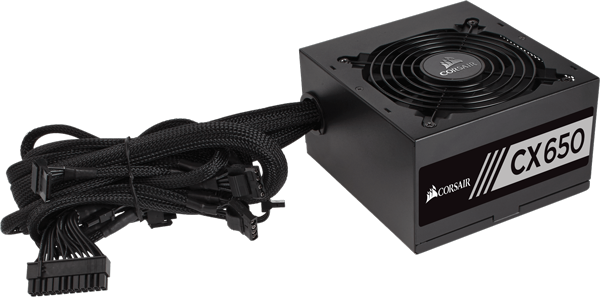

Ample Connectors & long cables

The CX650 has long cables making the CX Series suitable for installation in many cases even in full-height tower cases, and the generous cable count allows you to power multiple components and storage devices.

CX650 Efficiency & Noise Graphs

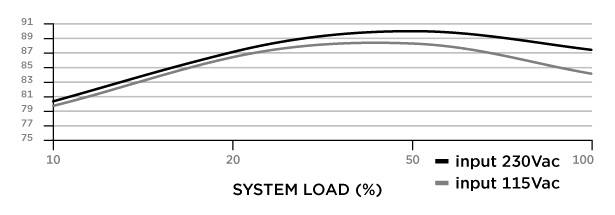

CX650 EFFICIENCY

Efficiency Graph

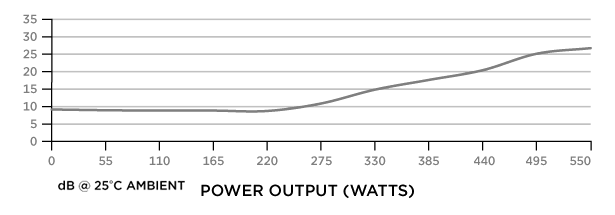

CX650 FAN NOISE

Noise Graph

Corsair CX650 Output Power Chart

Corsair CX650 ATX Power Supply
AC Input Rating DC Output Rating
AC Input: 100V - 240V DC Output +3.3V +5V +12V -12V +5Vsb
Current: 13A - 6.5A Max Load 25A 25A 54A 0.8A 3A
Frequency: 47Hz - 63Hz Maximum Combined Wattage 130W 648W 9.6W 15W
  Total Power: 650W
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
60 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
01204-474747
Buying Guide
Not sure which power supply is right for you? Read our Power Supplies Buying Guide
Power Supply units
Power Supply units
Date Issued: 28th Apr 2020

Power-supply units, or PSUs, are an integral part of any computer build. Often overlooked, it is the component that is likely to last the longest, and it can be moved between systems when you upgrade to the latest and greatest in the future.

Read More

650W Corsair CX Series CX650, 80PLUS Bronze, Fully Wired, Single Rail, 54A +12V, 120mm Fan, ATX PSU is rated 4.0 out of 5 by 1.
Rated 4 out of 5 by from Does the job, shame it's not modular This PSU definitely works as intended, but there's not much more to say about it other than that! In hindsight I probably would have gone for one of their modular units such as the RM750x (especially as it's only an extra £20) as it's so much easier to cable manage, but at the end of the day it does the job and you'll never see the cables unless you need to do some maintenance.
Date published: 2019-05-04
