Scan code: LN107213 Manufacturer code: SKC2500M8/500G

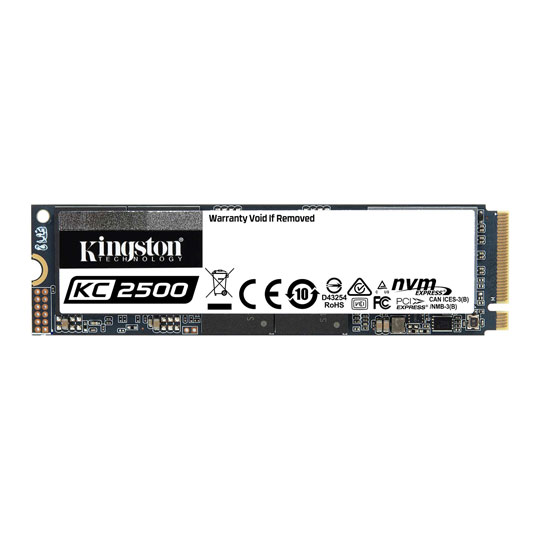

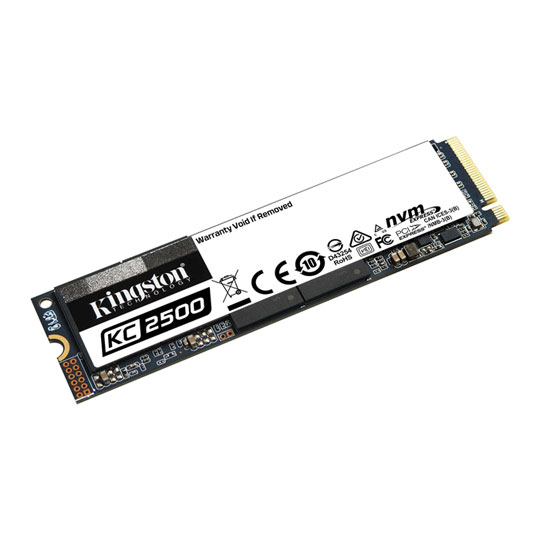

Kingston KC2500 500GB M.2 PCIe 3.0 x4 NVMe SSD/Solid State Drive

500GB Kingston KC2500, M.2 (2280) PCIe 3.0 (x4) NVMe SSD, 3500MB/s Read, 2500MB/s Write, 375k/300k IOPS

MORE INFO
MORE INFO
Thumbnail 1 : Kingston KC2500 500GB M.2 PCIe 3.0 x4 NVMe SSD/Solid State Drive Thumbnail 2 : Kingston KC2500 500GB M.2 PCIe 3.0 x4 NVMe SSD/Solid State Drive
Scan code: LN107213 Manufacturer code: SKC2500M8/500G
£97.49
Add To Basket
In stock
Order now and get it tomorrow (upgrade to Sunday delivery at checkout)
Delivery Options
  • By DPD On 25th Jan to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

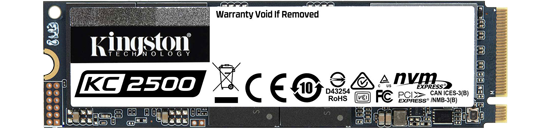

500GB Kingston KC2500 NVMe PCIe Solid State Drive

500GB Kingston KC2500 NVMe PCIe SSD

Introducing the Kingston KC2500 NVMe PCIe SSD, that not only delivers a powerful performance using the latest Gen 3.0 x 4 controller, it also features 96-layer 3D TLC NAND. With impressive read/write speeds up to 3,500/2,500MB/s, KC2500 provides outstanding durability and advances the workflow in desktop, workstations, and high-performance computing (HPC) systems. The compact M.2 design gives superior flexibility, expansive storage nonetheless also saving space.

500GB / M.2 (2280)Capacity / Form Factor

3,500 / 2,500 MBsMaximum Read / Write

375K / 300K IOPSRandom Read / Write

Fine-Tuned Kingston KC2500 Key Features

Built for Desktop, Workstation, and High-Performance PCs The KC2500 has incorporated Microsoft eDrive support, a security storage specification for use with BitLocker. Kingston offers a self-encrypting drive that supports end-to-end data protection using XTS-AES 256-bit Hardware-based encryption and allows the usage of independent software vendors with TCG Opal 2.0 security management solutions such as Symantec™, McAfee™, WinMagic® and others. Delivering the power to meet your system’s needs the KN2500 is available in various capacities from 250GB to 2TB.

up

M.2 (2280) NVMe Performance Using the latest Gen 3.0 x 4 controller to reach speeds up to 3,500/2,500MB/s.

up

Speed like no OTher Incredible NVMe PCIe performance.

up

Supports a Full-Security Suite R(TCG Opal 2.0, XTS-AES 256 bit, eDrive)

up

Improve Workflow Efficiency Ideal for desktop, workstations, and high-performance computing (HPC) systems.

up

Application optimized Upgrade your PC with capacities up to:
2TB 1TB
500GB 250GB

up

Full-security suite support Protect and secure your data with Kingston’s self-encrypting drive.

Kingston M.2 NVMe SSD with 3D NAND

video image
Specifications
Capacity 500GB
Edition KC2500
Form Factor M.2 (2280)
Height 22 mm
Interface PCIe 3.0 (x4)
Host Controller Interface NVMe
Controller SMI 2262EN
Flash Memory Type TLC 3D NAND
Max. Read 3500 MB/s
Max. Write 2500 MB/s
DRAM Cache Memory N/A
DRAM Cache Memory Type
Max. Random Read 4K 375,000 IOPS
Max. Random Write 4K 300,000 IOPS
Latency N/A
Special Features AES-XTS 256-bit Hardware-based Encryption Engine
Power Consumption (active) 0.2W
Max. Endurance Rating
MTBF 2,000,000 Hours
Max. Operating Vibration 2.17G Peak (7-800Hz)
Max. Non-operating Vibration 20G Peak (20-1000Hz)
Max. Operating Shock
Max. Non-operating Shock
Connectivity 1 x PCIe 3.0 (x4)
OS Support
Bracket N/A
Dimensions 80 x 22 x 3.5 mm (WxHxD)
Weight 10 g
Package Type Retail
Additional Information
Scan Code LN107213
Model Number SKC2500M8/500G
GTIN 740617307160
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Direct
DOA Period:
28 days
RTB Period:
1 months
