Scan code: LN90309 Manufacturer code: SW-105

Brainboxes Industrial Embeddable Ethernet 5 Port Switch

5 Port Brainboxes Industrial Embeddable Ethernet Switch, 5 x RJ-45 10/100, Ready for Embedded Applications

MORE INFO
MORE INFO
Free ScanFX 3 in 1 Network Cabling Kit - LN 90089

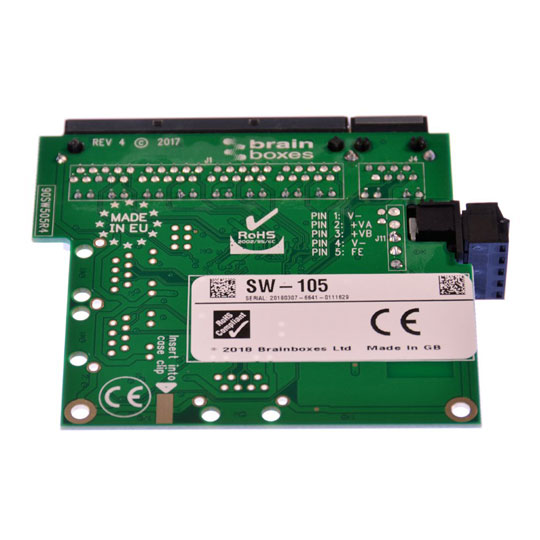

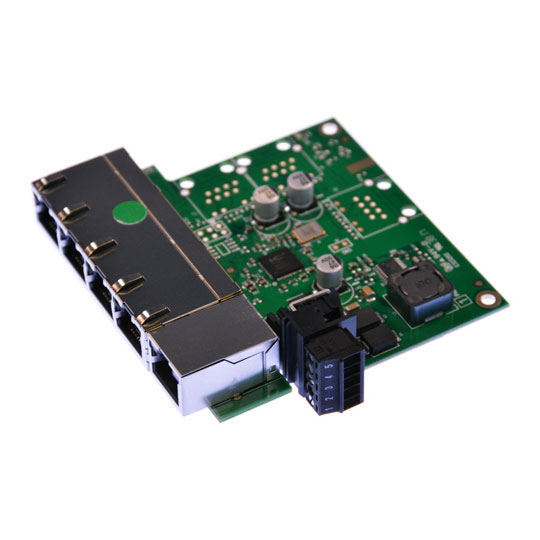

Thumbnail 1 : Brainboxes Industrial Embeddable Ethernet 5 Port Switch Thumbnail 2 : Brainboxes Industrial Embeddable Ethernet 5 Port Switch Thumbnail 3 : Brainboxes Industrial Embeddable Ethernet 5 Port Switch Thumbnail 4 : Brainboxes Industrial Embeddable Ethernet 5 Port Switch
Scan code: LN90309 Manufacturer code: SW-105
Order by 8:30 PM today and get it tomorrow
£49.99
Add To Basket
Get it Tomorrow, 30 JunIn stock
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 30th Jun to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Industrial Embeddable 5 Port Ethernet Switch

Industrial Compact Ethernet 5 Port unmanaged switch. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for embedded applications.

Features

• 5 Port Ethernet Switch.
• Ready for embedded applications.
• Redundant dual power inputs: +5V to +30V DC.
• Industrial operating temp range -40°C to +80°C / -40°F to +176°F.
• Lifetime Warranty and Support.

Specifications
Edition
Form Factor
Total Network Ports 5 x 10/100 (Fast Ethernet) RJ-45
PoE Support Type
No. of Ports Providing PoE
Other Non-Network Ports
Switching Capacity
Non-Blocking Throughput
Forwarding Rate
MAC Address Table Size
Network Capacity
Built-in Flash Memory
RAM Memory
Network Protocols
Acoustic Noise
Max. Power Consumption
Max. PoE Wattage per Port
Mean Time Between Failures (MTBF)
Power Supply
Material
Includes
Dimensions (WxHxD) 95 x 20 x 90 mm
Weight 0.088 kg
Additional Information
Scan Code LN90309
Model Number SW-105
GTIN 837324004168
Warranty
