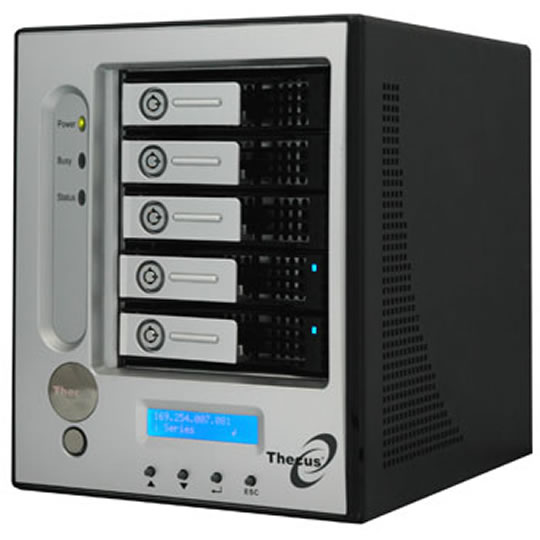

Thecus i5500 5 Bay Performance NAS with iSCSI

5 Bay Thecus i5500 Silver/Black Hot Swap SATA NAS RAID with iSCAI

Scan code: LN22158 Manufacturer code: i5500 Request call
End Of Life
High End
Product Overview When businesses need access to their data, they need it fast. The i5500 comes with in Intel® Xscale IOP80331 CPU and 512MB of DDR memory under the hood. This enables the i5500 to deliver incredible iSCSI performance – up to twice the performance of its predecessor the N5200 PRO! With block level data transmission over regular Ethernet, businesses can forget the prohibitive costs of implementing a fiber channel network altogether.

The i5500 comes with five hot-swappable SATA drive bays that accommodate up to 5TB of storage. A wide selection of RAID modes including RAID 0, 1, 0+1, 3, 5, 6, 10, and JBOD as well as instant RAID volume availability, auto volume rebuilding, and support for up to 256 logical volumes offers unbeatable flexibility. And because downtime equals lost revenue, the i5500 also features online RAID expansion allowing businesses to increase their storage capacity without taking down their system. With the i5500 businesses can rest easy knowing they can access their data at all times.

• Front-end 2 GbE TCP/IP offload device
• CHAP enabled
• On-line volume migration
• HDD S.M.A.R.T. enabled
• Global/dedicated cache configurable by volume
• Performance in i5500 for single channel is over 90MB/s and dual channels are close to 190MB/s.
• More flexibility can slice logical volume to 256 pieces.
• Logical unit number support to allow varies access privilege from different host. Features Key Components
CPU: Intel Xscale IOP80331
Memory: 512MB DR333 DIMM supported
UARTs: Supports of serial interface of UPS.
Fast Ethernet port: For Web-based management use.
Microsoft Multipath I/O support (MPIO)
Front-end: One Intel GbE controller with two gigabit Ethernet ports.
LCM supported for easy management use.
NVRAM for IO transaction record
Max. system capacity 1TB x 5
Hot Swappable

Enclosure Monitoring
UPS management via the specific serial port
3.3V, 5V and 12V voltage monitor
Thermal sensor x 3 on controller board

RAID & Volume Operation
RAID level: 0,1,0+1,3,5,6,10 and JBOD
Up to 256 logical volumes in the system
Global and dedicated hot spare disks
Write-through or write-back cache policy for different application usage
Dedicated or shared cache allocation for volume usage
Multiple RAID volume support
Configurable RAID stripe size
Online volume expansion
Instant RAID volume availability
Auto volume rebuilding
On-line volume migration

Management Interface
Management via web UI.
Online system firmware upgrade mechanism
Event notification via Email and SNMP trap.
Run-time IO transactions recording
Built-in LCD module to control most enclosure components

Advanced Data Protection
Local N-way mirror
Offline array roaming
Smart faulty sector relocation

Physical & Environment
Operating Temperature 10°C ~ 35°C
Non-Operating Temperature -10°C ~ 50°C
Operating Humidity 20% to 90% non-condensing

Supported Operating System
Windows XP Pro/2003/Vista
Mac 9.1 and above, including OSX, OSX Server, XSERVE
Linux (all latest builds) which support SCSI.
And all other systems supporting SCSI protocol
