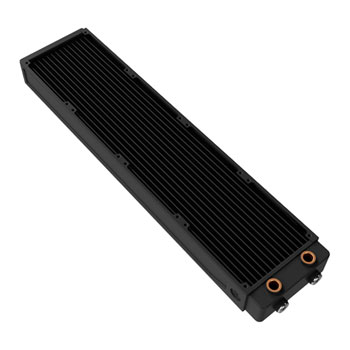

EK-Pro P480 Multiport Black 480mm Custom Cooling Radiator
480mm EK-Pro P480 Multiport Custom Cooling Radiator, Black, 45mm Thickness, 4x 120mm Fan Mounts, Copper, 4x G1/4"
Email me when the availability or price changes
Finance this product
- From £13.59 / month (APR 16.9%) for 12 months or 0% for 4 months
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.
Suggested Alternatives
EK-Pro Radiator P360 Multiport - Black
With a thickness of 45mm, the EK-Pro P Series radiators are amazing all-rounders for low noise and high performance across the entire fan operational range. Equipped with a total of four G1/4" threaded connection ports, it provides additional versatility during the loop planning process. A total of 14 2mm-wide copper tubes across the entire radiator length assure optimal coolant flow, putting no stress on your cooling loop. High-grade non-louvered copper fins with 18 FPI density provide the best balance between thermal transfer and air resistance, enabling optimal performance even at low-speed fan operation. To maximize cooling performance, a Push/Pull setup can be utilized on P Series EK-Pro radiators. .
Premium Materials
The EK-Pro P series radiator maximizes performance by utilizing an enhanced core with an optimized fin structure. Unlike most other radiators on the market, EK-Pro Radiator P360 Multiport is exactly 120mm wide, which ensures compatibility with most 120mm fan mounts.
The finish of the materials, mechanical rigidity, and performance are enterprise-grade.
With the supplied screws, this radiator is compatible with 120mm fans that have a standard 25mm thickness. EK recommends using EK fans or similar ones with sealed-edge frames. This classic yet effective square shape of the fan casing provides optimal performance in either the pull (suction) or push (pressure) regime without any hydraulic losses, thus ensuring the optimal cooling capacity of your liquid cooling radiators.
Multiport - The Choice of Ports is Yours
This multiport radiator has two additional G1/4" threaded connection ports on the side of the radiator to allow more options with tube routing.
M4 Screws - Standardised, Easy to Find
Hard-wearing black M4 Philips round-headed screws are supplied for ease of use. In general use case scenarios, EK strongly suggests using only the included screws to avoid damage to the radiator itself. However, M4 screw compatibility allows the users to source longer screws if necessary. The cooling core is designed to cause no detrimental damage to the structural integrity of the radiator core even if the customer uses longer screws accidentally, as they will collide only with the fins.
Low Hydraulic Restriction
The internal structure design of the radiators was executed with low flow restriction in mind, providing no unnecessary stress on the rest of the cooling loop. This means you will be able to add multiple radiators to your cooling loop using only a single pump (D5 or DDC). The radiators are also airflow-friendly and low-restriction, allowing lower fan speed operation to achieve the same performance. Low airflow restriction keeps the case well-ventilated and allows other radiators in the case to breathe properly.
Features
• High-grade 99.9% copper fins.
• H90 brass tubing.
• Brass H62 end tank chambers.
• Stainless Steel side plates.
• Nickel-plated brass plugs.
• Dimensions: 515.5 x 120 x 45mm (L x W x H).
• Weight: 1.6kg.
• FPI: 18.
• Port threads: 4x G1/4".
• Fan dimension: 120 mm.
• Working pressure: 2500 Pa.
Enclosed:
• EK-Pro Radiator P360 Multiport.
• 16x Phillips Slotted M4x30mm for 25mm thick fans.
• 16x Phillips Slotted M4x5mm for mounting the radiator directly to the case.
• 6mm steel Allen (Hex) key.
• 9mm steel Allen (Hex) key.
