Scan code: LN82070 Manufacturer code: NF-A4x20 PWM

Noctua NF-A4x20 40mm PWM Fan

40mm Noctua NF-A4x20 PWM 40mm x 20mm 4-pin Fan

Thumbnail 1 : Noctua NF-A4x20 40mm PWM Fan Thumbnail 2 : Noctua NF-A4x20 40mm PWM Fan Thumbnail 3 : Noctua NF-A4x20 40mm PWM Fan Thumbnail 4 : Noctua NF-A4x20 40mm PWM Fan
Scan code: LN82070 Manufacturer code: NF-A4x20 PWM
£12.98
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 20th Aug 2019 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

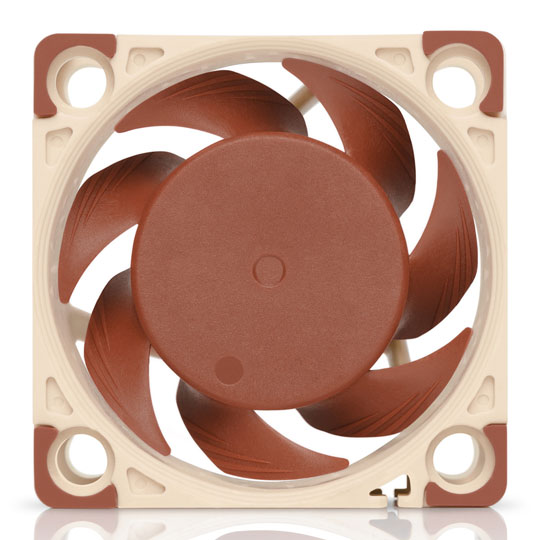

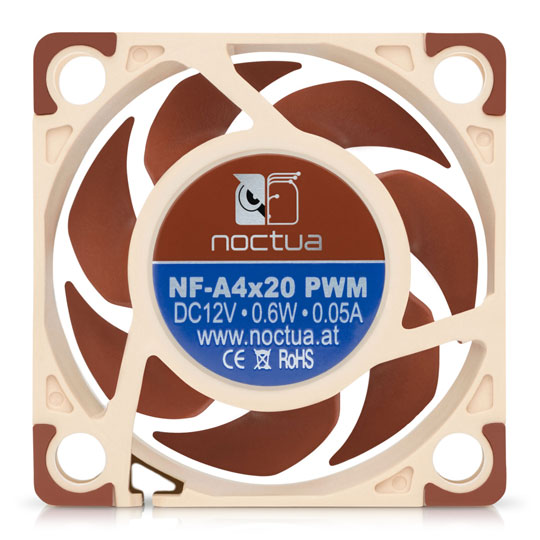

Product Overview Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and Noctua’s AAO frame, the NF-A4x20 is a highly optimised, premium-quality quiet fan in size 40x20mm. The PWM version sports Noctua’s custom-designed NE-FD1 IC for fully automatic speed control via 4-pin fan headers and comes with a Low-Noise Adaptor as well as an OmniJoin™ Adaptor Set for easy connection to proprietary fan headers. Its superb running smoothness, reference-class SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for the highest demands.

40x20mm size
Compared to Noctua’s award-winning NF-A4x10, the NF-A4x20 is twice as thick, which allows for increased static pressure performance and makes the NF-A4x20 ideal for demanding applications with high flow resistance.

Flow Acceleration ChannelsFlow Acceleration Channels
The NF-A4x20 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.

AAO frameAAO frame
Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.

Stepped Inlet DesignStepped Inlet Design
Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.

Inner Surface MicrostructuresInner Surface Microstructures
With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.

Integrated Anti-Vibration PadsIntegrated Anti-Vibration Pads
Integrated Anti-Vibration Pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard mounting systems and fan clips used on heatsinks.

SSO2 bearingSSO2 bearing
The NF-A4x20 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.

Custom-designed PWM IC with SCDCustom-designed PWM IC with SCD
Supporting fully automatic PWM speed control, the fan uses Noctua's custom-designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at low speeds.

Stops at 0% PWMStops at 0% PWM
When the fan is set to 0% PWM duty cycle by the motherboard or PWM fan controller, it will stop. This makes it ideal for creating setups with semi-passive cooling that automatically turn the fans off and thus run completely silent at idle if thermals allow.

Low-Noise AdaptorLow-Noise Adaptor
The NF-A4x20 PWM is supplied with a (L.N.A.) that reduces the maximum fan speed from 5000 to 4400rpm. The L.N.A. can be used either to run the fan at a fixed speed of 4400rpm or to cap the maximum speed when using automatic PWM control.

OmniJoin™ adaptor setOmniJoin™ adaptor set
Many devices featuring 40mm fans use proprietary fan headers, so the NF-A4x20 comes with Noctua's OmniJoin™ adaptor set. Just cut the original fan's cable, fix it to the adaptor using the supplied 3M Scotchlok™ connectors and you can plug the NF-A4x20 to proprietary fan headers!

Extensive cabling optionsExtensive cabling options
The fan's short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved and a 4-pin y-cable allows the connection of a second fan to the same PWM fan header for automatic control.

6-year manufacturer’s warranty6-year manufacturer’s warranty
Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-A4x20 features an MTTF of more than 150.000 hours rating and comes with a full 6-year manufacturer’s warranty. Features • Award-winning A-series design with Flow Acceleration Channels and Advanced Acoustic Optimisation frame for superior quiet cooling performance
• 40x20mm size ideal for 1U servers or replacing fans in network and storage equipment (routers, switches, NAS etc.) or other devices such as DVRs
• 4-pin PWM version for automatic speed control via 4-pin PWM fan headers, 5000rpm maximum speed (4400rpm with supplied Low-Noise Adaptor)

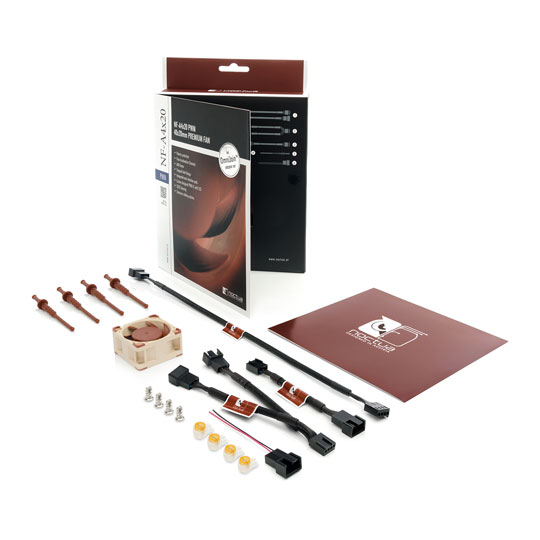

• Includes anti-vibration mounts, fan screws, extension cable and OmniJoin adaptor set for connecting the fan to proprietary fan headers
Specifications
Pack Information
Edition Noctua NF-A4x20 PWM
Pack Type
Includes
Individual Fan Specifications
Fan Diameter 40mm
Fan Depth 20 mm
Fan Speed 5000 rpm
Fan Blades
PWM Yes
Fan Specialization
Airflow 5.5 CFM
Air Pressure 2.26 mm H²O
Sound Level (dBA) 14.9 dBA
Sound Level (Sone)
Motor Type
Bearing Type SSO2
Manual Speed Controller No
Material
Fan Colour Beige/Brown
LED No
LED Colour
MTBF > 150,000 Hours
Fan Fixing
Cable length 40 mm
Connectors 1 x 4-pin
Additional Information
Scan Code LN82070
Model Number NF-A4x20 PWM
GTIN 9010018100105
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
60 months
