Noctua NF-A4X10 5V PWM 40mm Beige/Brown Fan
Noctua NF-A4X10 5V PWM 40mm Beige/Brown Fan
Scan code: LN104630 Manufacturer code: NF-A4X10-5V-PWM
£13.99
Get it Friday, 06 DecIn stock
  • Thumbnail 1 : Noctua NF-A4X10 5V PWM 40mm Beige/Brown Fan
  • Thumbnail 2 : Noctua NF-A4X10 5V PWM 40mm Beige/Brown Fan
  • Thumbnail 3 : Noctua NF-A4X10 5V PWM 40mm Beige/Brown Fan
  • Thumbnail 4 : Noctua NF-A4X10 5V PWM 40mm Beige/Brown Fan

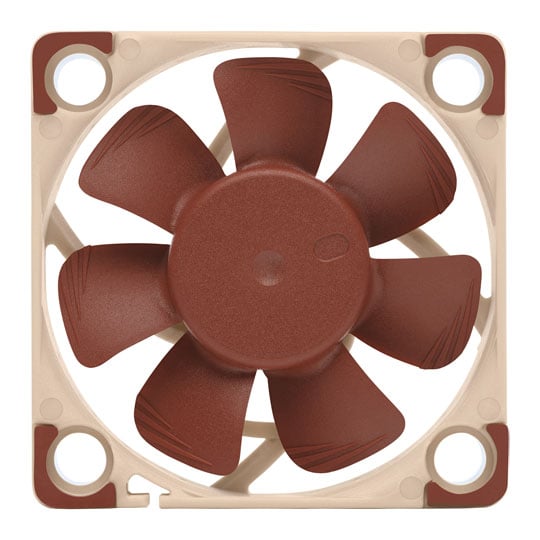

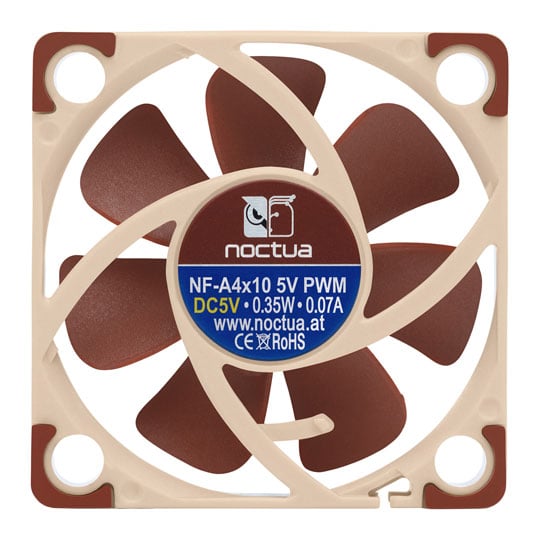

Noctua NF-A4X10 5V PWM 40mm Beige/Brown Fan

40mm Noctua NF-A4X10 5V PWM, Beige/Brown, 7 Blade, SSO2 Bearing, 1000-5000RPM, 5.2CFM Airflow, 19.6dB, 4-pin PWM

Scan code: LN104630 Manufacturer code: NF-A4X10-5V-PWM
£13.99
£5.48 NEXT DAY DELIVERY
Order now and receive it by Friday, 6th December
Get it Friday, 06 DecIn stock
  • By DPD On 6th Dec Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.79 Collect your parcel from your newsagents, petrol stations and convenience stores
  • Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • SCANPROTECT Protect against installation damage for 28 days. More info
Product Overview

Premium 40mm Cooling

Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and an AAO frame, the NF-A4x10 5V PWM is a PWM enabled 5V variant of Noctua’s award-winning, premium quality quiet 40x10mm fan. The custom designed NE-FD3 PWM IC that integrates Smooth Commutation Drive technology and Noctua’s reference class SSO2 bearings guarantee superb running smoothness and excellent long-term stability. Topped off with modular cabling, the OmniJoin Adaptor Set Adaptor Set and 6 years manufacturer’s warranty, the NF-A4x10 5V PWM is a premium choice for demanding 5V applications that require PWM control.

PLEASE NOTE: Being a 5V fan, the NF-A4x10 5V PWM cannot be run at 12V and will be damaged when used with typical 12V power sources such as PC motherboard fan headers.


Award-winning NF-A4x10 Design

Having received more than 50 awards and recommendations from the international press, Noctua’s NF-A4x10 has become a proven premium choice for 40mm cooling needs. Its renowned efficiency has convinced tens of thousands of customers all over the world.


5V PWM Version

Many devices such as network or storage solutions use 5 volt 40mm fans with PWM speed control. With the same operating voltage, PWM support and the included OmniJoin™ adaptor set that makes it compatible with proprietary fan headers, the NF-A4x10 5V PWM is ideal for replacing noisy or broken 5V 40mm fans with PWM.


Reduced Motor Hub Size

Thanks to its streamlined, compact motor design, the NF-A4x10's motor hub is smaller than with conventional 4cm fans. This allows for more blade surface area and thus contributes to the NF-A4x10's superior airflow and pressure performance.


Flow Acceleration Channels

The NF-A4x10 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.


AAO Frame

Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.


Stepped Inlet Design

Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.


Inner Surface Microstructures

With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.


Integrated Anti-Vibration Pads

Integrated Anti-Vibration Pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard mounting systems and fan clips used on heatsinks.


Custom-designed PWM IC with SCD

Supporting fully automatic PWM speed control, the NF-A4x10 5V PWM uses Noctua’s custom designed NE-FD3 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at low speeds.


Polarity Protection

As many devices using 5V fans feature proprietary connectors, and documentation of the pin alignment may not be available, the fan features an integrated diode for polarity protection. This way, you're on the safe side if you accidentally connect it with reverse polarity.


SSO2 Bearing

The NF-A4x10 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.


OmniJoin™ Adaptor Set

Many devices featuring 40mm fans use proprietary fan headers, so the NF-A4x10 comes with Noctua's OmniJoin™ adaptor set. Just cut the original fan's cable, fix it to the adaptor using the supplied 3M Scotchlok™ connectors and you can plug the NF-A4x10 to proprietary fan headers!


USB Power Adaptor Cable

The fan includes a USB power adaptor cable that allows it to run on power banks, devices with USB host ports or USB power supplies such as those used for smartphones, giving you near endless possibilities for using the fan in your home, in your car or wherever a need for cooling occurs!


Extensive Cabling Options

The fan's short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved.


6-Year Manufacturer’s Warranty

Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-A4x10 features an MTTF of more than 150.000 hours rating and comes with a full 6-year manufacturer's warranty.

Features
• 40 x 10mm 5-volt quiet PWM PC cooling fan.
• Noise level 19.6 dB(A.
• Feature packed, includes USB power adapter.
• Perfect for proprietary cooling.
Specifications
Pack Information
Edition NF-A4x10 PWM 5V
Pack Type Single (1) Fan Standalone Pack
Includes
  • 1 x 40mm Fan/s
  • 4 x Fan Mounting Screws
Individual Fan Specifications
Fan Diameter 40mm
Fan Depth 10 mm
Fan Speed 1000 - 5000 rpm
Fan Blades 7
PWM Yes
Fan Specialization Inaudible Airflow
Airflow 5.2 CFM
Air Pressure 1.95 mm H²O
Sound Level (dBA) 19.6 dBA
Sound Level (Sone)
Motor Type
Bearing Type SSO2
Manual Speed Controller No
Material Plastic / Rubber
Fan Colour Beige/Brown
LED No
LED Colour
MTBF 150000 Hours
Fan Fixing
  • Push-pin Fixing
  • Rubber Fan Mounts
  • Screw Fixing
Cable length 200 + 300 mm
Connectors
  • 1 x 4-pin
  • 1 x USB
Additional Information
Scan Code LN104630
Model Number NF-A4X10-5V-PWM
GTIN 9010018100327
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
72 months
Type:
Direct
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Noctua
