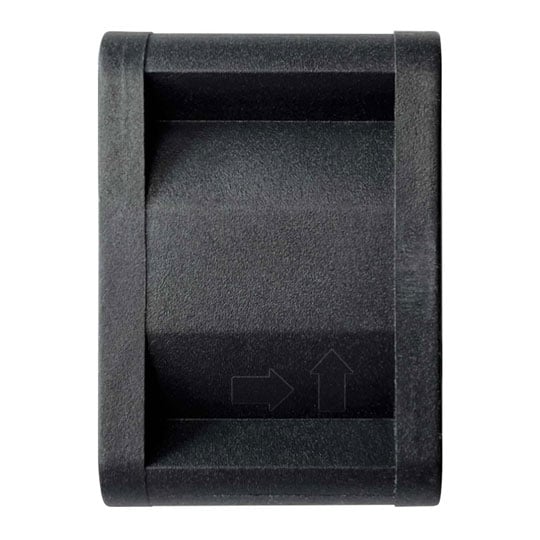

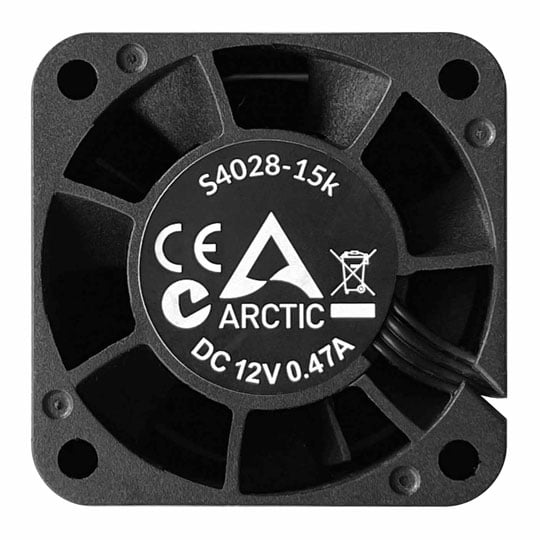

Arctic 40mm S4028-15K Airflow/Pressure Optimised Fan

40mm Arctic S4028-15K Fan, Black, Airflow/Pressure Optimised, 5 Blade, Dual Ball Bearing, 15000rpm, 26.5CFM, 4-Pin PWM

Thumbnail 1 : Arctic 40mm S4028-15K Airflow/Pressure Optimised Fan Thumbnail 2 : Arctic 40mm S4028-15K Airflow/Pressure Optimised Fan Thumbnail 3 : Arctic 40mm S4028-15K Airflow/Pressure Optimised Fan Thumbnail 4 : Arctic 40mm S4028-15K Airflow/Pressure Optimised Fan
Scan code: LN126094 Manufacturer code: ACFAN00264A
Order now and get it tomorrow, Thu 26th May
£9.98
Get it Tomorrow, 26 MayIn stock
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 26th May to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Designed for Continuous Operation

The impeller of the S4028-15K is held in place by two ball bearings and is therefore particularly durable and less sensitive to external influences such as heat and dust.


Full Control With a Wide Speed Range

The S4028-15K has a very wide speed range that can be regulated via PWM and voltage. With its 15000 rpm max, it offers a high cooling capacity at a relatively low noise.


High Airflow and Static Pressure

With a static pressure of 26.5 mm/H2O and a maximum airflow of 32.67 m³/h, the S4028-15K is a true all-rounder and is suitable as both a radiator and case fan.


Wide Range of Applications

The S4028-15K fits into 1U server cases and can serve as a replacement fan for routers, switches and NAS. It can also be used for other products such as DVRs, mini PCs, HTPCs, hard drive enclosures and 3D printers.


Flexible Connection Options

The fan has a standard 4-pin fan connector and can also be connected to and controlled on 2-pin or 3-pin headers, while the 40cm cable allows a lot of flexibility in positioning.

Features


• Fan Bearing: Dual Ball Bearing.
• Fan Speed: 1400 - 15000 rpm.
• Airflow: 19,23 CFM.
• Speed Control: Pulse Width Modulation - PWM.
• Static Pressure: 26.5 mm H2O.


Specifications
Pack Information
Edition S4028-15K
Pack Type Single (1) Fan Standalone Pack
Includes 1 x 40mm Fan/s
Individual Fan Specifications
Fan Diameter 40mm
Fan Depth 28 mm
Fan Speed 15,000 rpm
Fan Blades 5
PWM Yes
Fan Specialization Airflow/Pressure
Airflow 19.23 CFM
Air Pressure 26.58 mm H²O
Sound Level (dBA)
Sound Level (Sone)
Motor Type
Bearing Type Dual Ball Bearing
Manual Speed Controller No
Material
Fan Colour Black/Black
LED No
LED Colour N/A
MTBF
Fan Fixing Screw Fixing
Cable length 400 mm
Connectors 1 x 4-pin PWM
Additional Information
Scan Code LN126094
Model Number ACFAN00264A
GTIN 4895213703802
