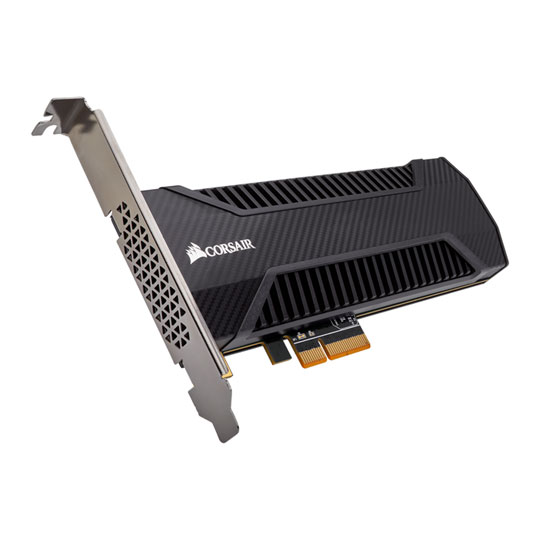

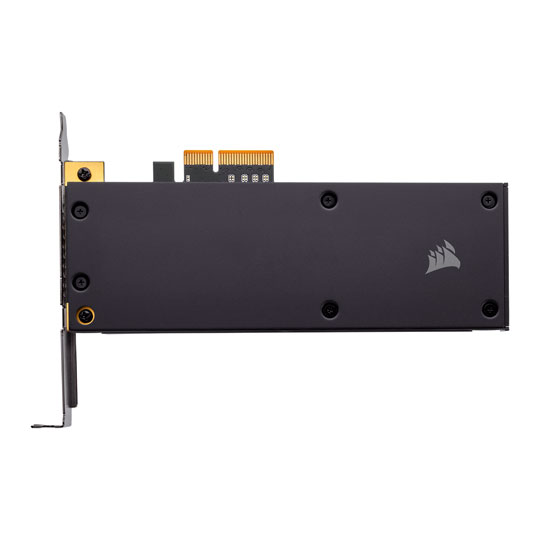

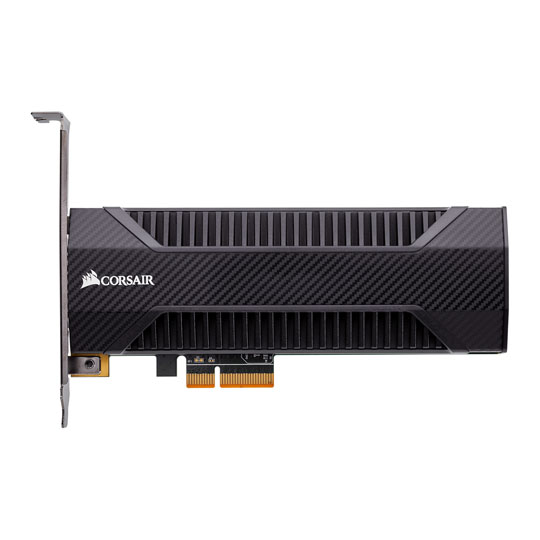

Corsair Neutron NX500 400GB NVMe PCIe Add-in-Card SSD/Solid State Drive

400GB Corsair Neutron NX500 AIC SSD, HHHL PCIe 3.0 (x4), NVMe, MLC NAND, 3000MB/s Read, 2400MB/s Write, 300k/270k IOPS

Scan code: LN82449 Manufacturer code: CSSD-N400GBNX500 Request call
Pay on Scan Finance with a 10% deposit from just £7.69 / month (APR 15.9%)
review High End
Delivery options £5.48 By DPD On 12th Dec 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview The CORSAIR Neutron NX500 NVMe PCIe AIC SSD is up to 5x faster than SATA SSDs and NVMe powered to deliver enhanced performance up to 3000/2400 MB/s sequential read/write speeds (ATTO), and up to 300K/270K IOPS random read/write performance. The specially designed heat sink is engineered to maintain peak performance, while the static and dynamic wear-levelling extends the lifespan of the drive. All while 5-year dedicated support from our world-class customer support team adds another layer of protection. Neutron NX500 enables gamers, workstation owners, and content creators get the fastest and most reliable experience possible. Features • NVMe Interface: Up to 5x faster read and write speeds than SATA 3.0 (6 Gbit/s, 600 MB/s).
• Mind-Blowing Speed: Ultrafast sequential read/write and IOPs.
• PCI Express SSD 3.0 x4: Transferring data over PCIe drastically boosts bandwidth, producing speeds unmatched by SATA connections.
• Highly Effective Cooling: Specially designed heatsink is built for efficiency to keep your games running at peak performance.
• Multi-Level Cell (MLC) Endurance: Improved reliability and performance over Triple-Level Cell (TLC) SSDs.
• Enhanced Error Correction: Additional error bit correction and improved data retention while supporting the latest generation, high endurance MLC NAND.
• Static and Dynamic Wear-Levelling: Evens out the distribution of program/erase operations on all available blocks to increase lifespan.
• Advanced Garbage Collection: Support for over-provisioning, secure wipe, disk cloning and firmware updates.
• Compatible with CORSAIR SSD Toolbox: Monitor S.M.A.R.T attributes and overall SSD health.
• Extensive 5-Year Warranty: Dedicated support from our world-class CORSAIR customer support team.

• Neutron Series™ NX500 NVMe PCIe AIC SSD.
• Low profile bracket.
• x4 Screws.
• Quick start guide.
• Warranty card.
Capacity 400GB
Edition Neutron Series NX500
Form Factor HHHL
Interface PCIe 3.0 (x4)
Host Controller Interface NVMe
Flash Memory Type MLC NAND
Max. Read 3000 MB/s
Max. Write 2400 MB/s
DRAM Cache Memory N/A
DRAM Cache Memory Type
Max. Random Read 4K 300,000 IOPS
Max. Random Write 4K 270,000 IOPS
Latency N/A
Special Features
  • Advanced Garbage Collection
  • Corsair SSD Toolbox Software Support
  • Dynamic Wear-Leveling
  • Enhanced Error Correction
  • S.M.A.R.T Support
  • Static Wear-Leveling
Power Consumption (active) 7270 mW
Max. Endurance Rating 698 TB TBW
MTBF 2,000,000 Hours
Max. Operating Vibration 20Hz~80Hz/1.52mm, 80Hz~2000Hz/20G
Max. Non-operating Vibration 20Hz~80Hz/1.52mm, 80Hz~2000Hz/20G
Max. Operating Shock 1500 G
Max. Non-operating Shock 1500 G
Connectivity 1 x PCIe 3.0 (x4)
OS Support
Bracket Includes Full Height & Low Profile Brackets
Dimensions 120.8 x 20.9 x 183.3 mm (WxHxD)
Weight 280 g
Package Type Retail

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

60 months
Return to base
DOA Period:
28 days
RTB Period:
60 months
Manufacturer Contact Details
0871 472 4747
