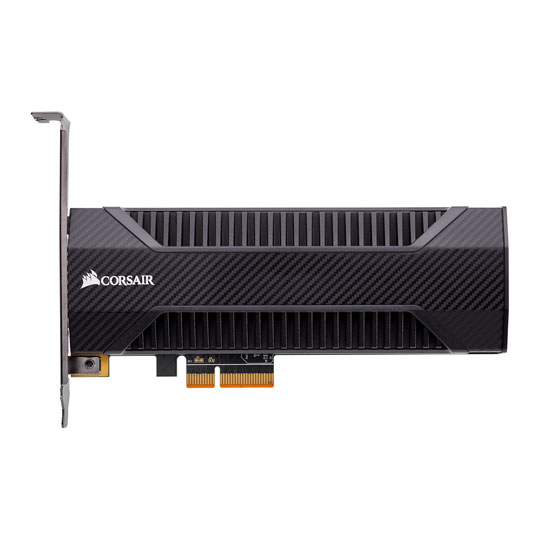

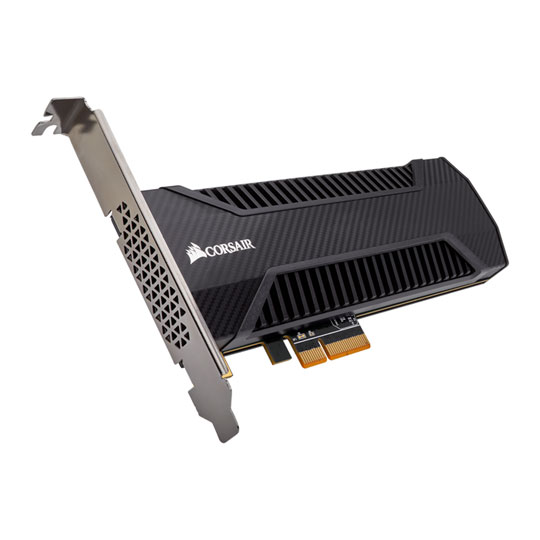

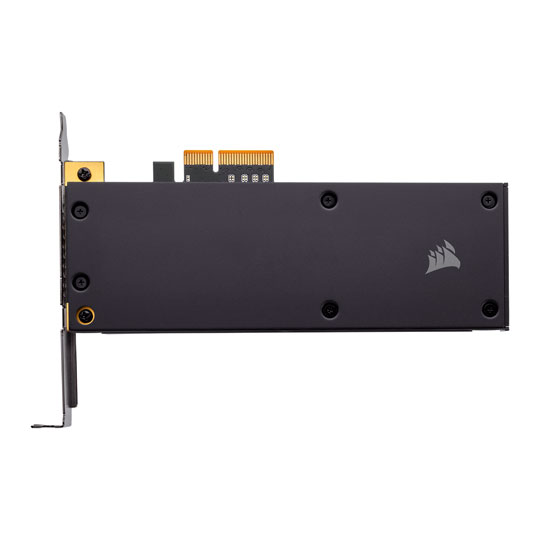

Corsair Neutron NX500 800GB NVMe PCIe Add-in-Card SSD/Solid State Drive
• Mind-Blowing Speed: Ultrafast sequential read/write and IOPs.
• PCI Express SSD 3.0 x4: Transferring data over PCIe drastically boosts bandwidth, producing speeds unmatched by SATA connections.
• Highly Effective Cooling: Specially designed heatsink is built for efficiency to keep your games running at peak performance.
• Multi-Level Cell (MLC) Endurance: Improved reliability and performance over Triple-Level Cell (TLC) SSDs.
• Enhanced Error Correction: Additional error bit correction and improved data retention while supporting the latest generation, high endurance MLC NAND.
• Static and Dynamic Wear-Levelling: Evens out the distribution of program/erase operations on all available blocks to increase lifespan.
• Advanced Garbage Collection: Support for over-provisioning, secure wipe, disk cloning and firmware updates.
• Compatible with CORSAIR SSD Toolbox: Monitor S.M.A.R.T attributes and overall SSD health.
• Extensive 5-Year Warranty: Dedicated support from our world-class CORSAIR customer support team.
• Neutron Series™ NX500 NVMe PCIe AIC SSD.
• Low profile bracket.
• x4 Screws.
• Quick start guide.
• Warranty card.
|Edition||Neutron Series NX500|
|Interface||PCIe 3.0 (x4)|
|Host Controller Interface||NVMe|
|Flash Memory Type||MLC NAND|
|Max. Read||3000 MB/s|
|Max. Write||2400 MB/s|
|DRAM Cache Memory||N/A|
|DRAM Cache Memory Type|
|Max. Random Read 4K||300,000 IOPS|
|Max. Random Write 4K||270,000 IOPS|
|Power Consumption (active)||7275 mW|
|Max. Endurance Rating||1396 TB TBW|
|Max. Operating Vibration||20Hz~80Hz/1.52mm, 80Hz~2000Hz/20G|
|Max. Non-operating Vibration||20Hz~80Hz/1.52mm, 80Hz~2000Hz/20G|
|Max. Operating Shock||1500 G|
|Max. Non-operating Shock||1500 G|
|Connectivity||1 x PCIe 3.0 (x4)|
|Bracket||Includes Full Height & Low Profile Brackets|
|Dimensions||120.8 x 20.9 x 183.3 mm (WxHxD)|
