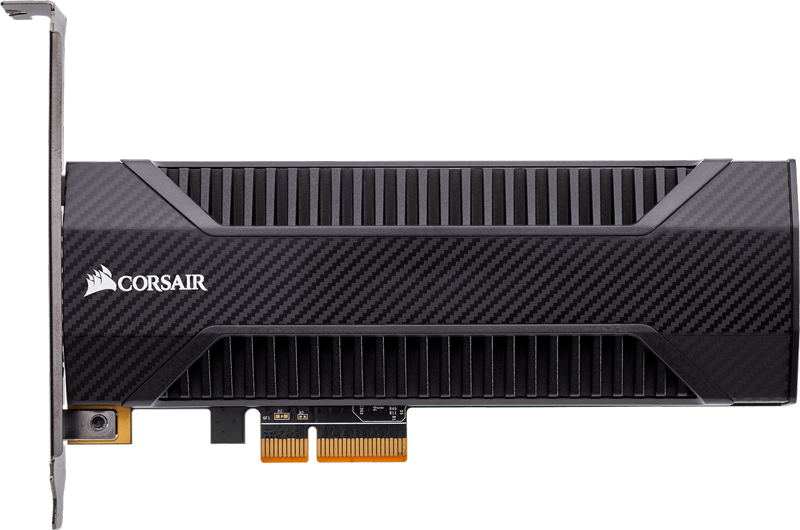

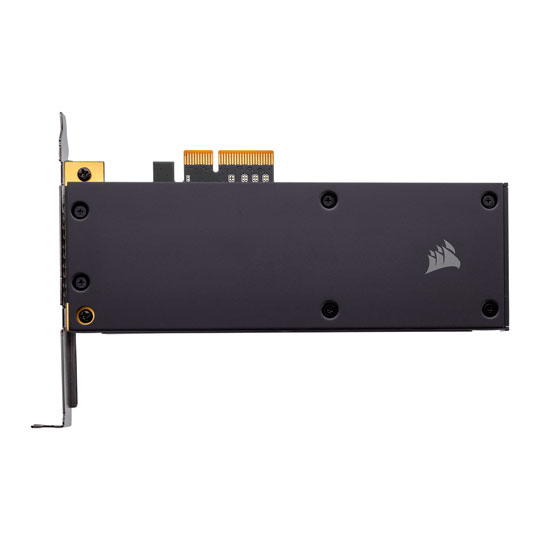

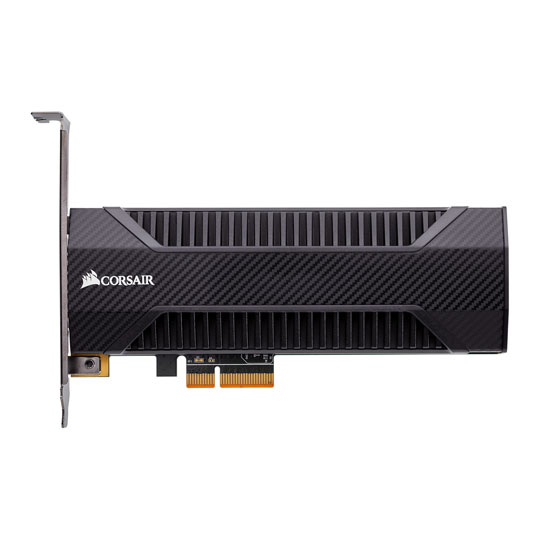

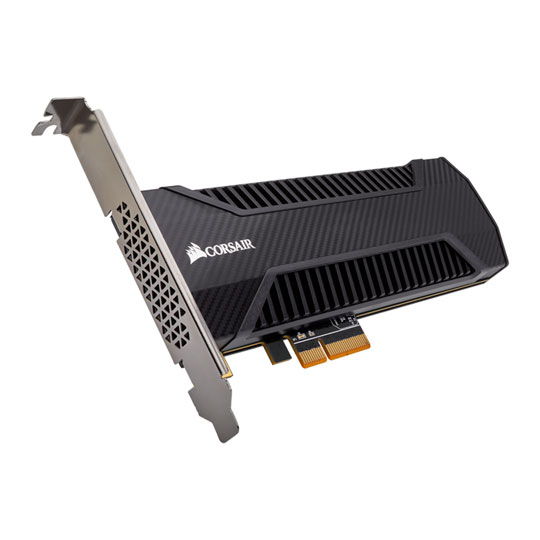

Corsair Neutron NX500 1600GB NVMe PCIe Add-in-Card SSD/Solid State Drive

1.6TB Corsair Neutron NX500 AIC SSD, HHHL PCIe 3.0 (x4), NVMe, MLC NAND, 3000MB/s Read, 2300MB/s Write, 300k/270k IOPS

Scan code: LN85786 Manufacturer code: CSSD-N1600GBNX500 Request call
Pay on Scan Finance with a 10% deposit from just £39.21 / month (APR 15.9%)
High End
Delivery options £5.48 By DPD On 23rd Jan 2018 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout

1600GB NVMe PCIe Corsair Neutron NX500 Card SSD


Never Fall Behind

The 800GB Corsair Neutron NX500 is a high-quality Add-in Card (AIC) SDD that delivers incredible performance and is 5x faster than a SATA 3 SSD. The HHHL (half height half length) form factor takes advantage of your motherboards PCIe 3.0 (x4) slots to get previously out of reach sequential and IOPS read and write speeds. This drive in particular has a storage capacity of 1600GB, a incredible read speed of up to 3000MB/s and write speeds of up to 2300MB/s which delivers ultra-fast system boot times and less load time.

Other capacities of PCIe SSD Cards in the Neutron NX500 range:

400GB 800GB


HHHLForm Factor

PCIe 3.0NVMe

3000MB/sSequential Read

2300MB/sSequential Write

300K IOPSRandom Read

270K IOPSRandom Write

Dedicated Cooling

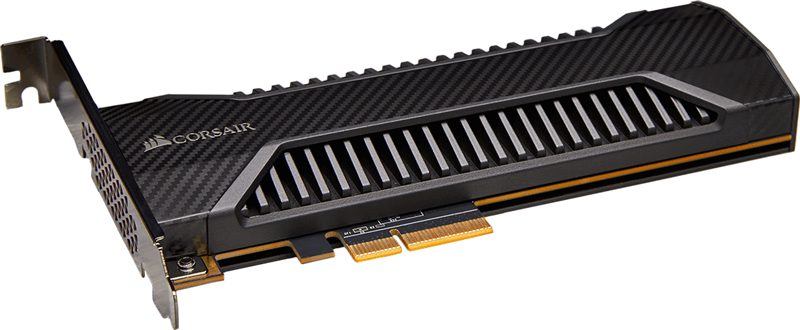

NX500 PCIe Side SSD

Never Fall Behind

The specially designed High-surface-area heatsink not only looks great in your build, but ensures unthrottled performance and cooler temperatures. The Neutron NX500 makes sure professional gamers, workstation owners, and content creators get the job done with ease.

NX500 Features

High-Bandwidth, Low-Latency

Easily handles demanding gaming, productivity, and content creation workloads.

PCI Express SSD Gen 3.0 x4

The NX500 accesses your PC’s PCI Express bandwidth and puts your data in the fast lane, leaving SATA SSDs in the dust.

Multi-Level Cell (MLC) Endurance

Better reliability and higher performance than Triple-Level Cell (TLC) NAND SSDs.

Capacity 1.6TB
Edition Neutron Series NX500
Form Factor HHHL
Interface PCIe 3.0 (x4)
Host Controller Interface NVMe
Flash Memory Type MLC NAND
Max. Read 3000 MB/s
Max. Write 2300 MB/s
DRAM Cache Memory N/A
DRAM Cache Memory Type
Max. Random Read 4K 300,000 IOPS
Max. Random Write 4K 270,000 IOPS
Latency N/A
Special Features
  • Advanced Garbage Collection
  • Corsair SSD Toolbox Software Support
  • Dynamic Wear-Leveling
  • Enhanced Error Correction
  • S.M.A.R.T Support
  • Static Wear-Leveling
Power Consumption (active) 7275 mW
Max. Endurance Rating 2793 TB TBW
MTBF 2,000,000 Hours
Max. Operating Vibration 20Hz~80Hz/1.52mm, 80Hz~2000Hz/20G
Max. Non-operating Vibration 20Hz~80Hz/1.52mm, 80Hz~2000Hz/20G
Max. Operating Shock 1500 G
Max. Non-operating Shock 1500 G
Connectivity 1 x PCIe 3.0 (x4)
OS Support
Bracket Includes Full Height & Low Profile Brackets
Dimensions 120.8 x 20.9 x 183.3 mm (WxHxD)
Weight 280 g
Package Type Retail

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

60 months
Return to base
DOA Period:
28 days
RTB Period:
60 months
Manufacturer Contact Details
0871 472 4747
